Hardware InstallationRev 2.0
Mellanox Technologies
18

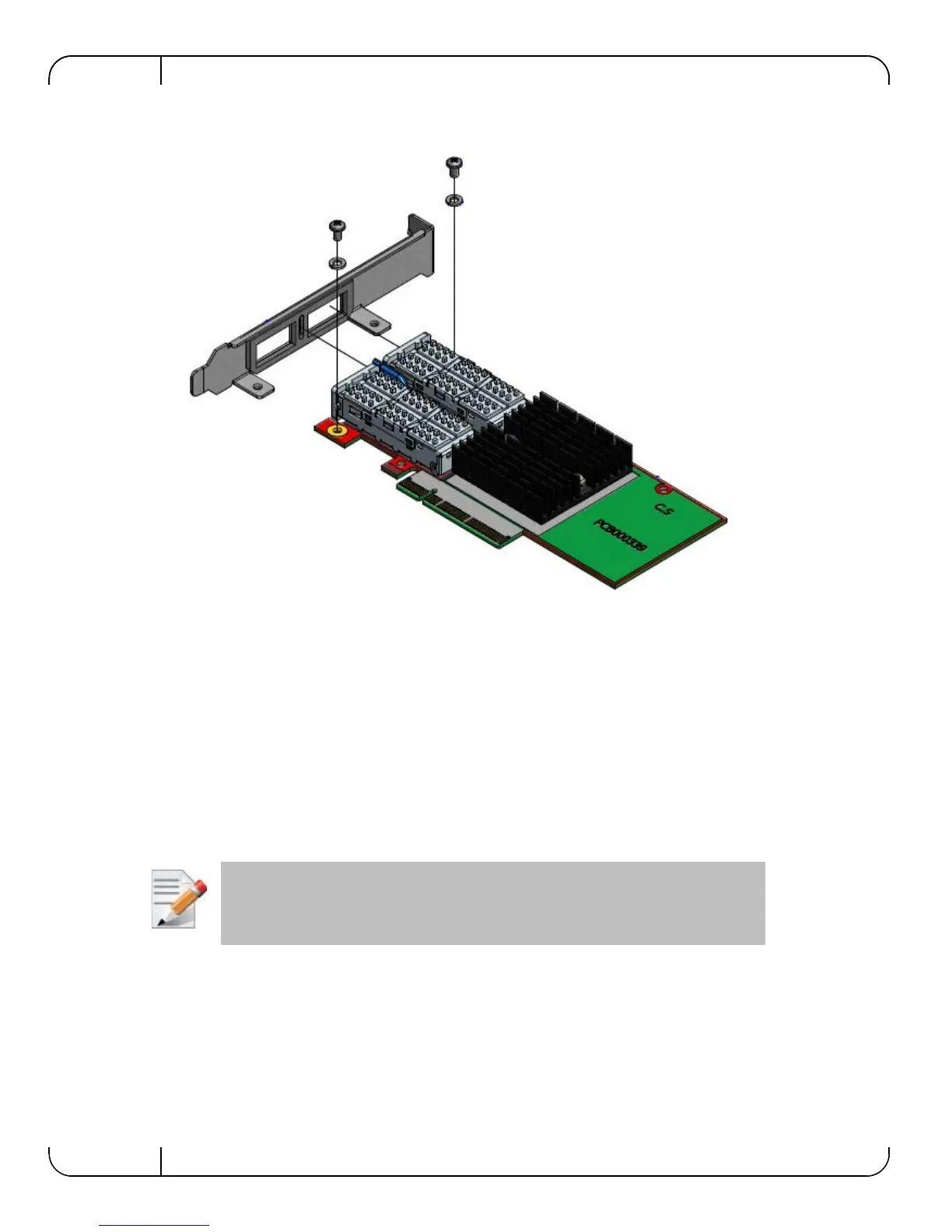

Figure 6: Placing the Bracket on the Card
3. Make sure that the LEDs are aligned onto the bracket holes.
4. Use a torque driver to apply up to 2 lbs-in torque on the screws.
3.5 Card Installation Instructions
1. Before installing the card, make sure that the system is off and the power cord is not con-
nected to the server. Please follow prop
er electrical grounding procedures.
2. Open the system case.
3. Place the adapter in an available PCI Express slot.
4. Applying even pressure at both corners of the card, insert the adapter card into the slot until it
is firmly seated. When the adapter is properly seated, the adapter port connectors are aligned
with the slot opening, and the adapter faceplate is visible against the system chassis.
A lesser width adapter can be seated into a greater width slot (x4 in a x8), but a greater
width adapter cannot be seated into a lesser width slot (x8 in a x4). Align the adapter
connector edge with the PCI Express connector slot.
