Memorex MVBD2520 User Manual

7

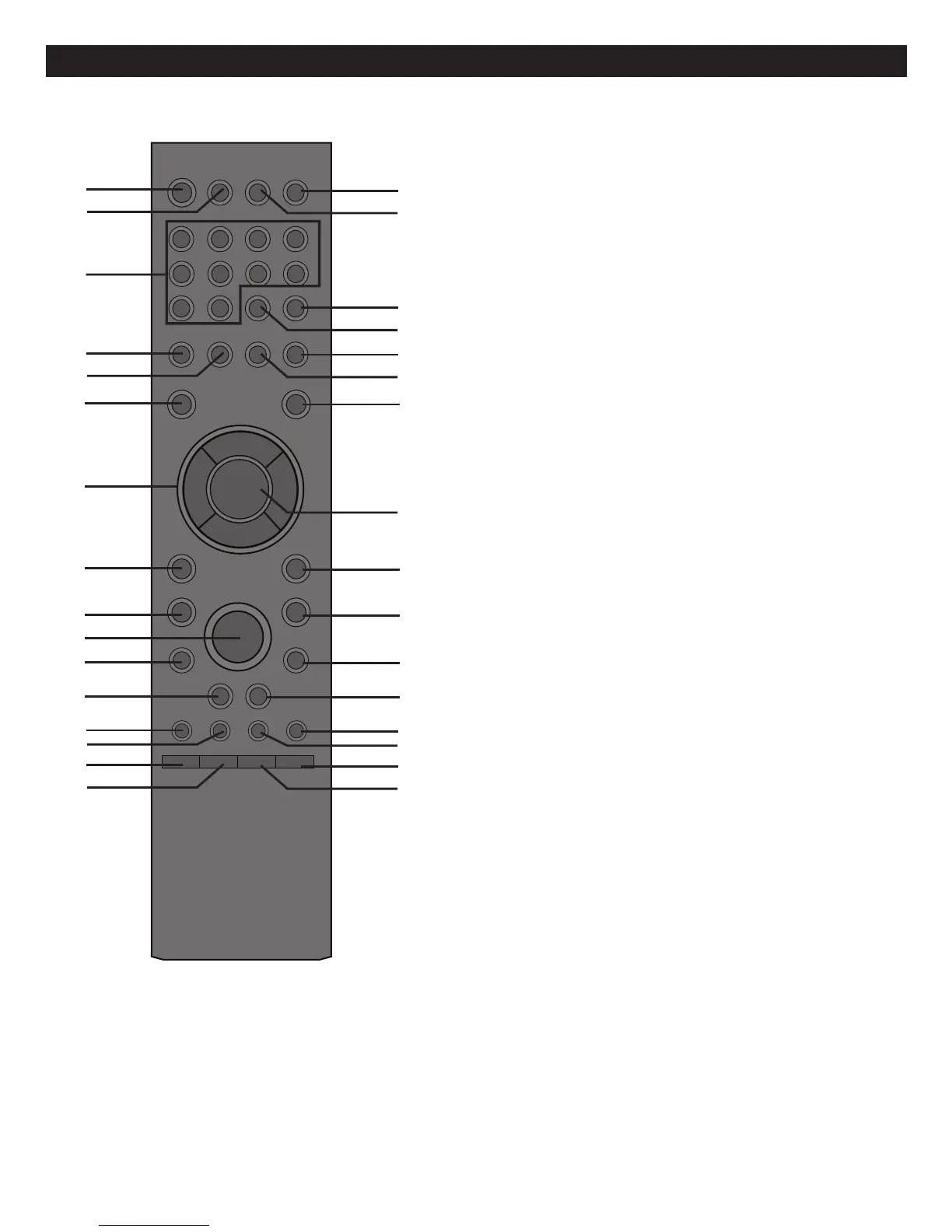

LOCATION OF CONTROLS (CONTINUED)
1. POWER/STANDBY Button
2. HDMI RESET Button
3. Number (0–9) Buttons
4. Red Button
5. Green Button
6. SETUP Button
7. Navigation (
√
,
®
,
†
,
π
) Buttons
8. RETURN Button
9.
Stop (
X
) Button
10. Play (®) Button
11. Skip (
o
) Button
12.
SEARCH/REVERSE
√√
Button
13. AUDIO Button
14. SUB MENU Button
15. DIMMER Button
16. SKIP Button
17. OPEN/CLOSE Button
18. DISPLAY INFO Button
19. SEARCH Button
20. CANCEL Button
21. Blue Button
22. Yellow Button
23. DISC MENU Button
24. ENTER Button
25. POPUP MENU Button
26. PAUSE (
p
) Button
27.
Skip (
n
) Button
28.
SEARCH/FORWARD
®®
Button
29. PIP (Picture-In-Picture) Button
30. USB/SD Button
31. ZOOM Button
32. Repeat A-B Button
REMOTE CONTROL PART NO. 52RE1-211001-00R*
BATTERY COVER PART NO. 12CA7-217A03-00R*
A/V RCA CABLE PART NO. 13WE1-311200-10R*
*Consumer Replaceable Part (See page 44 to order.)
REMOTE
17
18
19
20
24
21
22
23
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Memorex MVBD2520 Specifications

Power

power requirements	AC120V, 60Hz
power consumption	<25W
standby power consumption	1W

Operating Environment

operating temperature	5°C to 35°C
operating humidity range	10% to 75%

Video and Audio Formats

format disc support	BD (405nm), DVD (650nm), CD (780nm)
video format	AVC (H.264), VC-1, MPEG-2
audio format	DTS, DTS-HD, Dolby Digital, Dolby Digital Plus, Dolby True HD, Linear PCM

Video Output

composite video output	1.0 Vp-p
component video output Y	1.0Vp-p
component video output Pr/Pb	0.70Vp-p

Audio Output

digital audio output	Optical/Coaxial
frequency response	48kHz Sampling: 4Hz to 22kHz / 96kHz Sampling: 4Hz to 22kHz
s/n ratio	95dB

Weight and Dimensions

weight	9.3 Lbs
width	16.9 inches
depth	9.8 inches
height	2.1 inches
