NetPerformer Hardware Installation Guide
3-10 Memotec Inc.
5. Pull the interface card horizontally out of the slot using the tips of your fingers.
► Removing an FXS or E&M interface card from the TOP interface slot
of an SDM-9140 Series unit:
a. If the bottom interface card slot is empty, remove the faceplate.
OR
If the bottom interface card slot contains a card, partially remove the
bottom card by sliding it out approximately 3.8 cm or 1.5 inches from
the card slot (see Figure 3-5
).
b. Slowly pull the interface card horizontally out of the slot using the tips of
your fingers.
IMPORTANT: When removing the top card, make sure that the solder side
(bottom) of the card does not interfere with the component side (top) of the
bottom interface card.
c. Reinstall the faceplate of the bottom interface card slot.
OR
Reinsert the bottom interface card into the card slot.
Caution
If you are removing an FXS or E&M card from an SDM-9140 Series
unit:
To prevent damage to certain electronic components located under the
FXS and E&M cards, use one of the following methods when removing
them from either the TOP or BOTTOM card slots of SDM-9140 units.

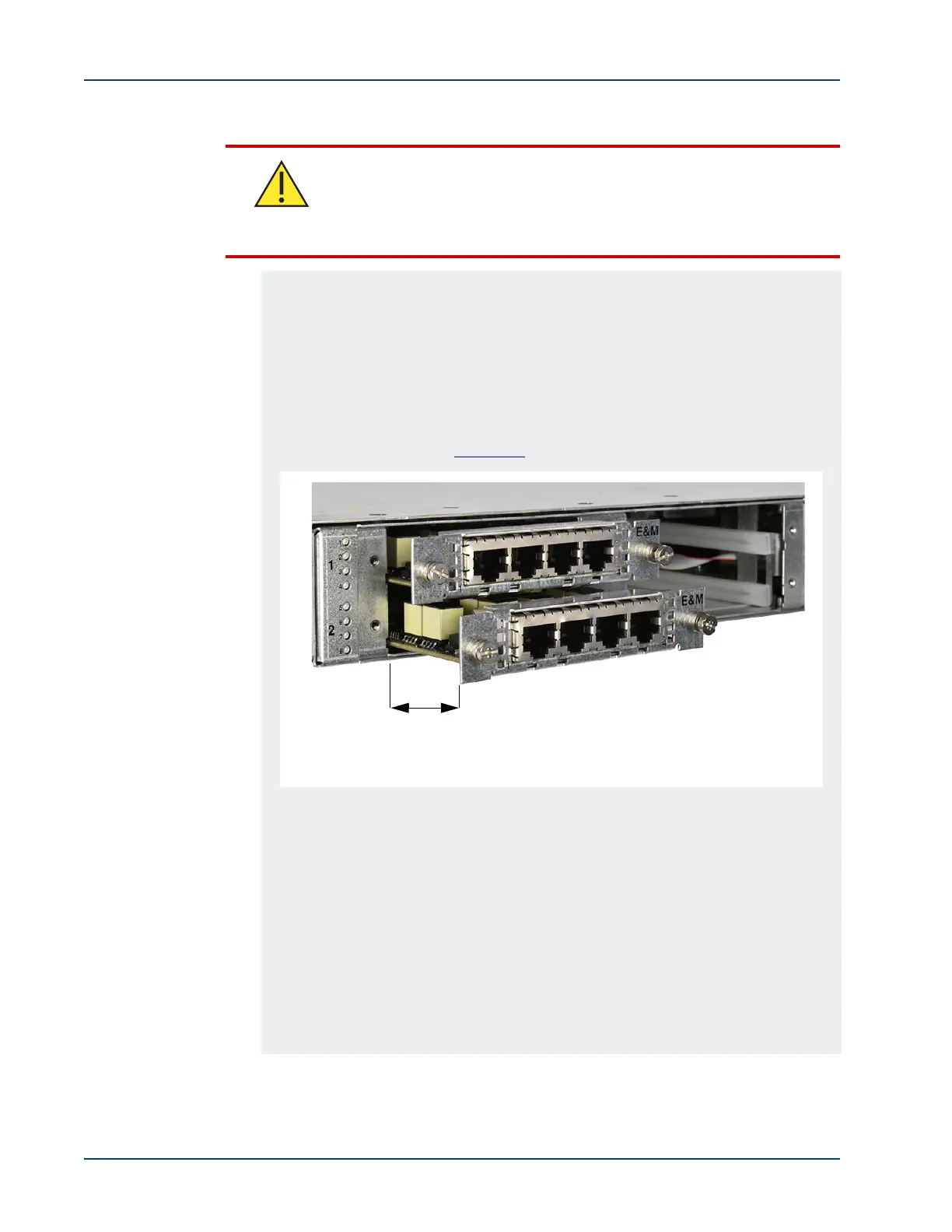

Figure 3-5: Partially Removing the Bottom Card in an SDM-9140 Unit
Approximately 3.8 cm (1.5”)
