Product Description
Memotec Inc. 4-27
4.12.4 Converting an SDM-92x0 Card to an SDM-9140 Ultra Low-Profile
1. Place the provided Mylar insulator onto the bottom part of the SDM-9140 ultra low-
profile faceplate.
2. Position the SDM-92x0 interface card at a slight angle in front of the faceplate..
3. Keeping the same angle, slide and position the interface card onto the faceplate.
4. Secure the faceplate to the interface card with the two screws provided.
NOTE: The screws provided with the Quad E&M replacement faceplate kit must be
used with the provided Allen key. A standard #1 Phillips screwdriver can be

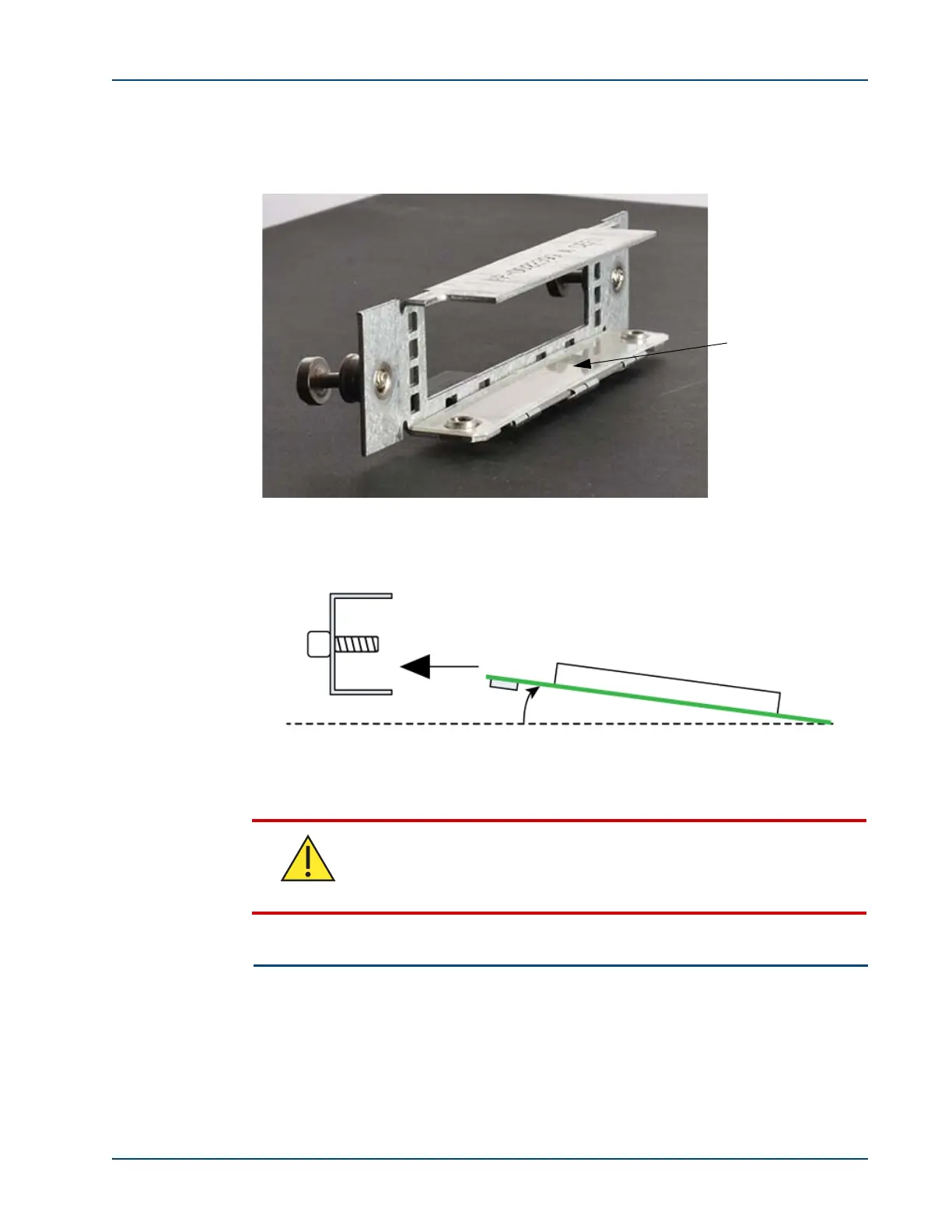

Figure 4-21: Mylar Overlay Installed on an SDM-9140 Faceplate
Figure 4-22: SDM-92x0 Card at an Angle in Front of the SDM-9140 Faceplate
Caution
When sliding the card onto the faceplate, take care not to damage the
solder side components located under the card.
Mylar
insulator on
the faceplate
To Next Page
