NetPerformer Hardware Installation Guide
4-26 Memotec Inc.
4.12.3 Converting an SDM-92x0 Card to an SDM-9120 Low-Profile
1. Remove the SDM-92x0 type faceplate from the interface card by unscrewing the two
screws securing that faceplate to the interface card.
2. On the SDM-9120 type low-profile faceplate, secure the L-shaped mounting brackets
using the bolts provided with the faceplate kit. Make sure that you put the brackets in
their correct positions as illustrated in Figure 4-20 below.
3. Secure the assembled SDM-9120 type faceplate to the interface card by screwing
back the two screws used to fix the faceplate to the interface card as illustrated in
Figure 4-20 below.
The ordering part numbers for the replacement faceplate kits from SDM-92x0 to SDM-
9120 are as follows:
• KT-0021210: SDM-9120 Replacement Faceplate Kit for Quad E&M
• KT-0021208: SDM-9120 Replacement Faceplate Kit for Dual FXO
• KT-0021206: SDM-9120 Replacement Faceplate Kit for Quad FXO
• KT-0021204: SDM-9120 Replacement Faceplate Kit for Dual FXS
• KT-0021202: SDM-9120 Replacement Faceplate Kit for Quad FXS
• KT-0021200: SDM-9120 Replacement Faceplate Kit for Single E1/T1
• KT-0021198: SDM-9120 Replacement Faceplate Kit for Dual E1/T1

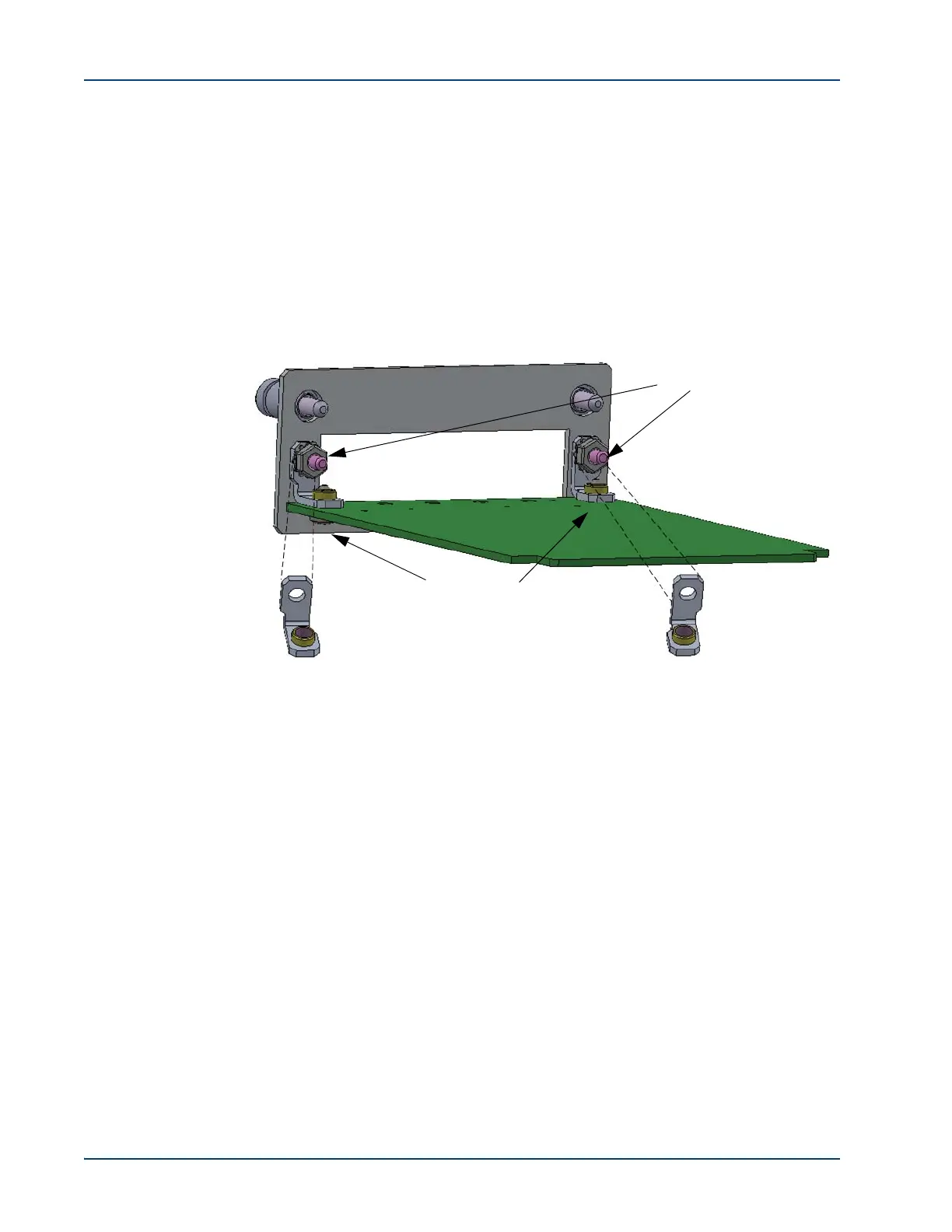

Figure 4-20: SDM-9120 Interface Card Faceplate
Faceplate screws
Faceplate bolts
Left side L-shaped
mounting bracket
Right side L-shaped
mounting bracket
