Mendota FV36 - Framing Dimensions

17
FV36 85-03-01014

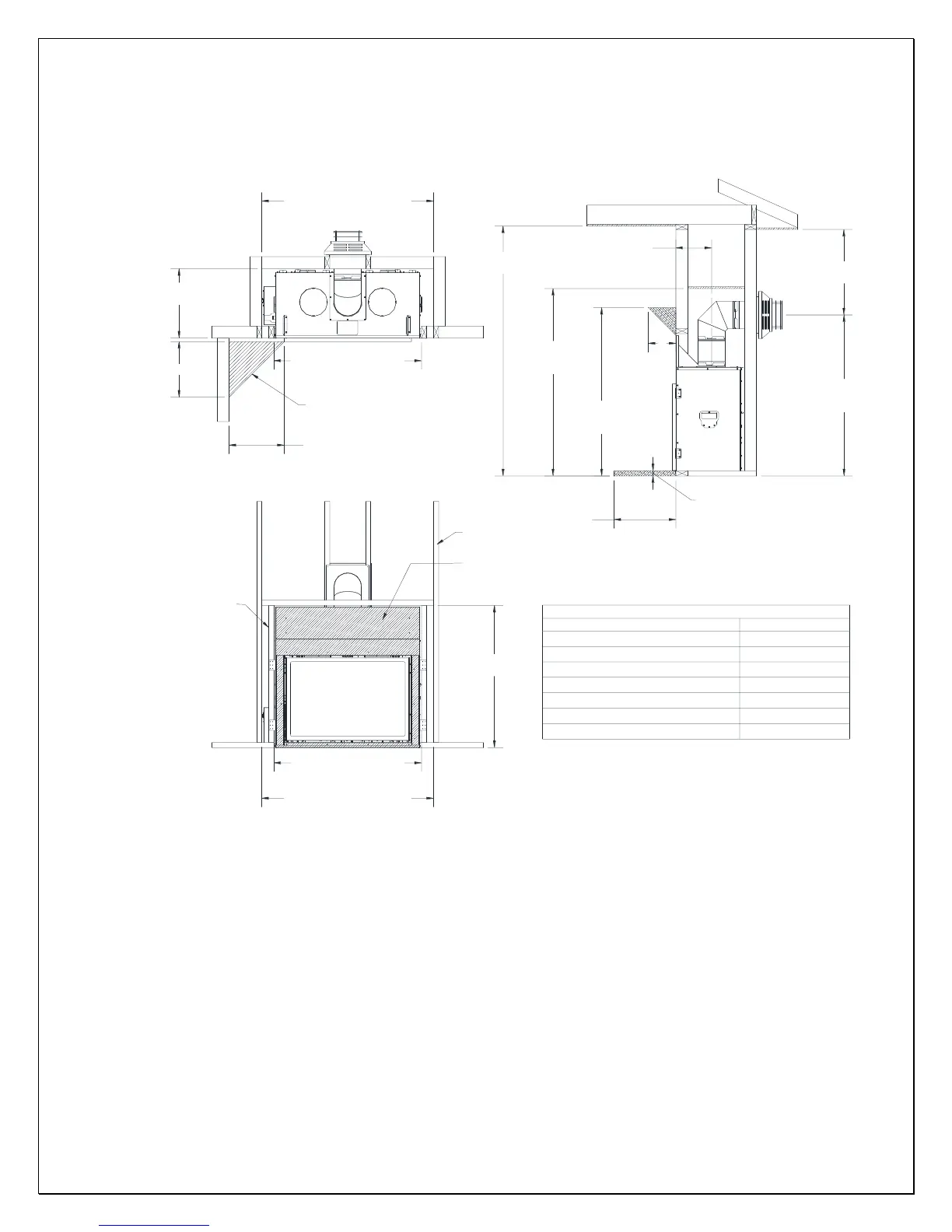

Framing Dimensions
Caution: The distance from floor level to the centerline of the vent cap is based on Simpson DuraVent GS
components. If using vent components of another brand, do not assume that the measurement given here is
applicable. Verify the distance to the centerline of vent cap by measuring the components you are using.
Note: For every 1” this fireplace is raised off the floor, the non-combustible hearth protection pad may be
reduced by 2”. If this fireplace is raised more than 6” off the floor, no hearth protection pad is required.
Note: Consult the R-Value Table for reference.
72 MINIMUM
UNIT BA SE TO CELING
18 M IN IM UM TO SO FFIT.
24" TO VINYL SOFFITS.
48 1/2
UNIT BA SE TO
8" DEEP M AN TEL
1 1/2 M AXIMUM
HEA RTH PAD THICKNESS
18
HEA RTH PAD
46 3/8
UNIT BA SE TO
VEN T C ENTERLINE
8
54 MINIMUM
ENC LOSURE C ELIN G
HEIGHT
10 3/8
UNIT FA CE TO
VEN T C ENTERLINE
20 MINIMUM
FRAMING DEPTH
50 MINIMUM
ENC LOSURE FRAM ING W IDTH
43
FINISHED FRAMING W IDTH
16 MINIMUM
TO SID E W ALL
16
PRO TRUSIO NS IN THE HA TCHED
AREA ARE ALLO WED .
41 MINIMUM
FRAMING HEIG HT
50 MINIMUM
ENC LOSURE FRAM ING W IDTH
43
FINISHED FRAMING W IDTH
2 X 4 STUDS
AFTER THE UNIT IS IN PLACE
INSTA LL TW O 2 X 4 STUDS TO
FINISH THE FRA MING A T THE
FRONT OF THE UN IT.
HATC HED AREA M UST BE COVERED WITH
NO N-COM BUSTIBLE MATERIALS ONLY.
MINIMUM REQUIRED DIMENSIONS
ENC LOSURE FRAM ING W IDTH 50"
FINISHED FRAMING W IDTH 43"
FRAMING HEIG HT
41"
FRAMING DEPTH 20"
FINISHING MATERIAL THICKN ESS
1"
UNIT BA SE TO ROOM C ELING 72"
TO SID E W ALL 16"
TO 8" M AN TEL 54"
