FV36 85-03-01014
Backup DC Power Inlet Port Installation
Under normal conditions when AC power is available, this fireplace is designed to operate on 120VAC power.
During power outages, it is designed to operate using 6 V DC backup power. This fireplace is supplied with a
DC power inlet harness, a single gang outlet box, and two single cover plates. In addition, a four AA-size
battery pack and a connector harness is also supplied.

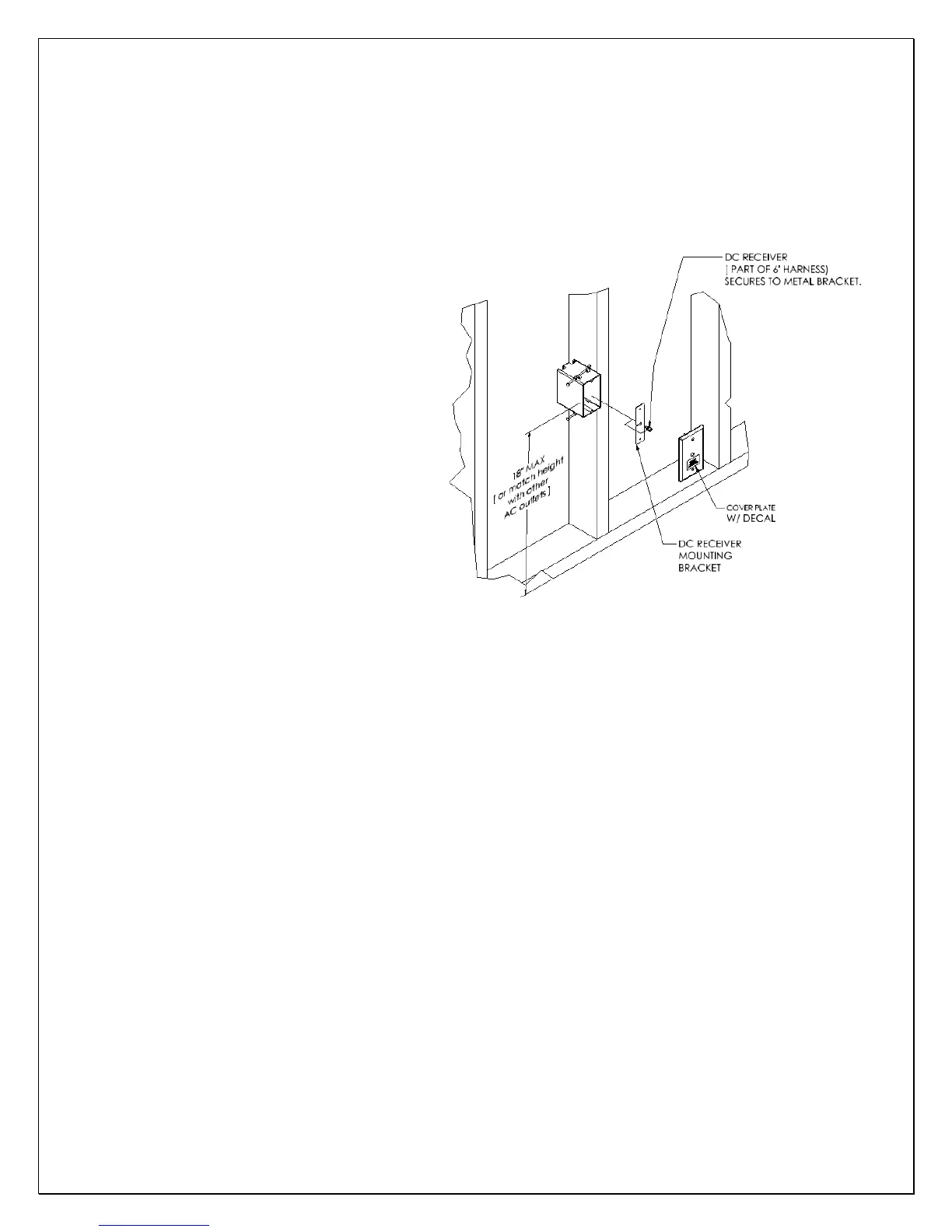

Installation Note: It is important that you
install the supplied harness, outlet box, and
cover plate on the left side of this fireplace.
The DC power inlet harness is 6’ long, allowing
installation of the single gang box up to 5’ to
the left of this fireplace. Mount to match the
height of outlets in the room or conceal as
desired. The 5’ distance to the left must be
maintained.
Warning: Do not staple the 6’ DC power inlet
harness to the wall studs.
Cover Plates: Two cover plates are supplied
and are white and beige in color. If the home
décor requires a different color other than the
two supplied colors, obtain one from a local
hardware store. Ensure that any cover you
obtain is exactly the same dimensions as those
supplied with this fireplace.
