Mendota FV36 - Flue Venting Components Identification

44
FV36 85-03-01014

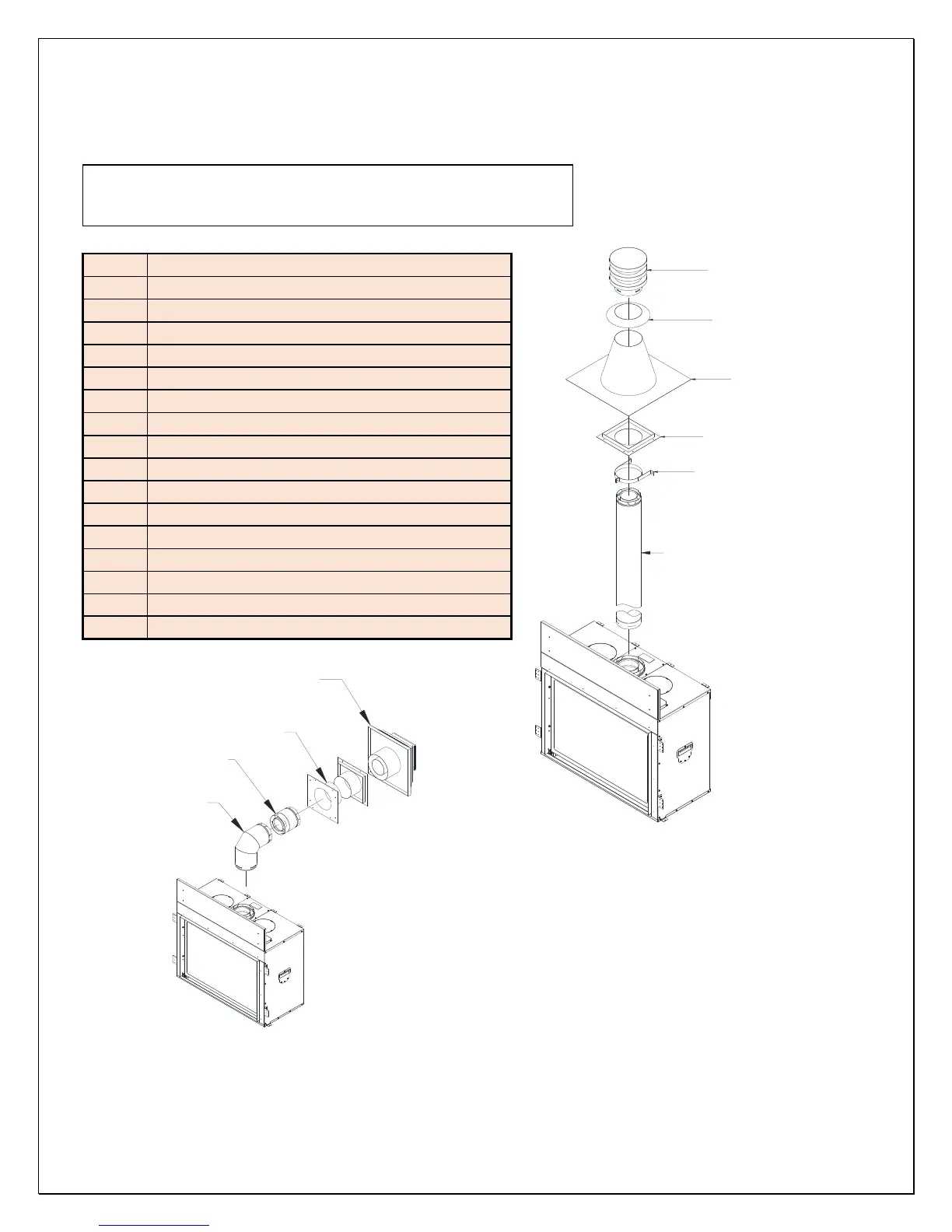

Flue Venting Components Identification
1,2,3,4,5
13
15
9,10
11
12
ITEM
FLUE VENTING COMPONENTS DESCRIPTION
1
6" or 7” PIPE (DuraVent 6”/AmeriVent 7”), 9”, 12”
2
12" VENT STACK
3
24" VENT STACK
4
36" VENT STACK
5
48" VENT STACK
6
90ºGALVANIZED ELBOW
45º GALVANIZED ELBOW
7
ADJUSTABLE WALL THIMBLE
8
ATTIC INSULATION SHIELD 12"
9
ROOF FLASHING (0/12 TO 6/12)
10
ROOF FLASHING (7/12 TO 12/12)
11
STORM COLLAR
12
VERTICAL VENT CAP
13
SUPPORT BAND
14
HORIZONTAL VENT CAP
15
FIRE STOP SPACER
Note: Do not separate telescoping sections.
Use telescoping sections as complete assemblies.
6
1
7
14
