53
FV36 85-03-01014

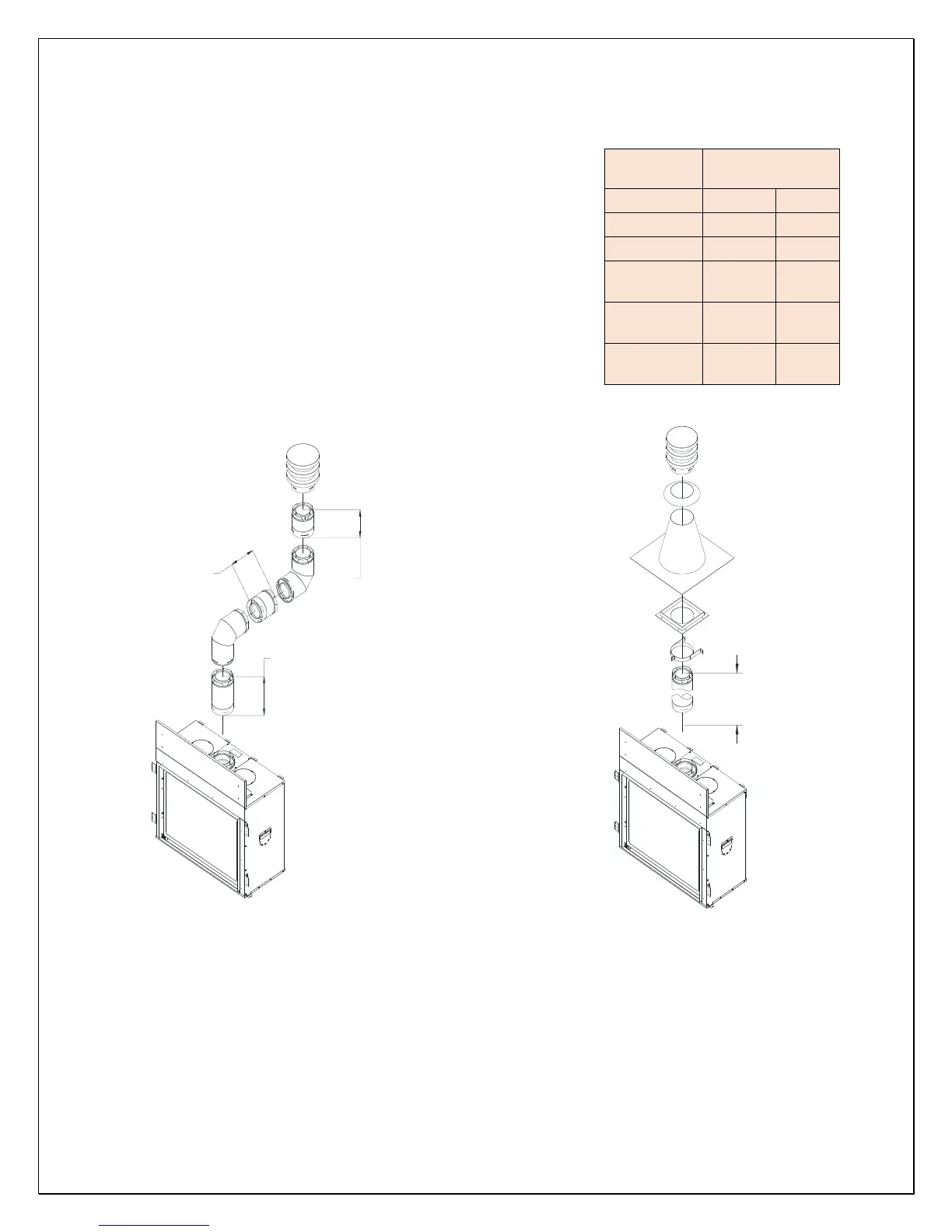

10. Height "H" from roof surface to the top of vent cap can be determined using the “H” Dimension table.
11. Complete the installation with the storm collar and vent cap.
"H" DIMENSION
ROOF PITCH
FEET
METERS
FLAT to 6/12
2
.6
7/12 to 9/12
2
.6
10/12 to
12/12
4
1.2
13/12 to
16/12
6
1.8
17/12 to
21/12
8
2.4
VERTICAL RISE
DUAL 90° ELBOW S
VERTICAL TERMINATION
H
V2
V1
40 FEET
MAXIMUM
STRAIGHT UP,
VERTICAL VENTING
