CHARGING & STARTING SYSTEM
Page 2B-36 90-883728 JULY 2001

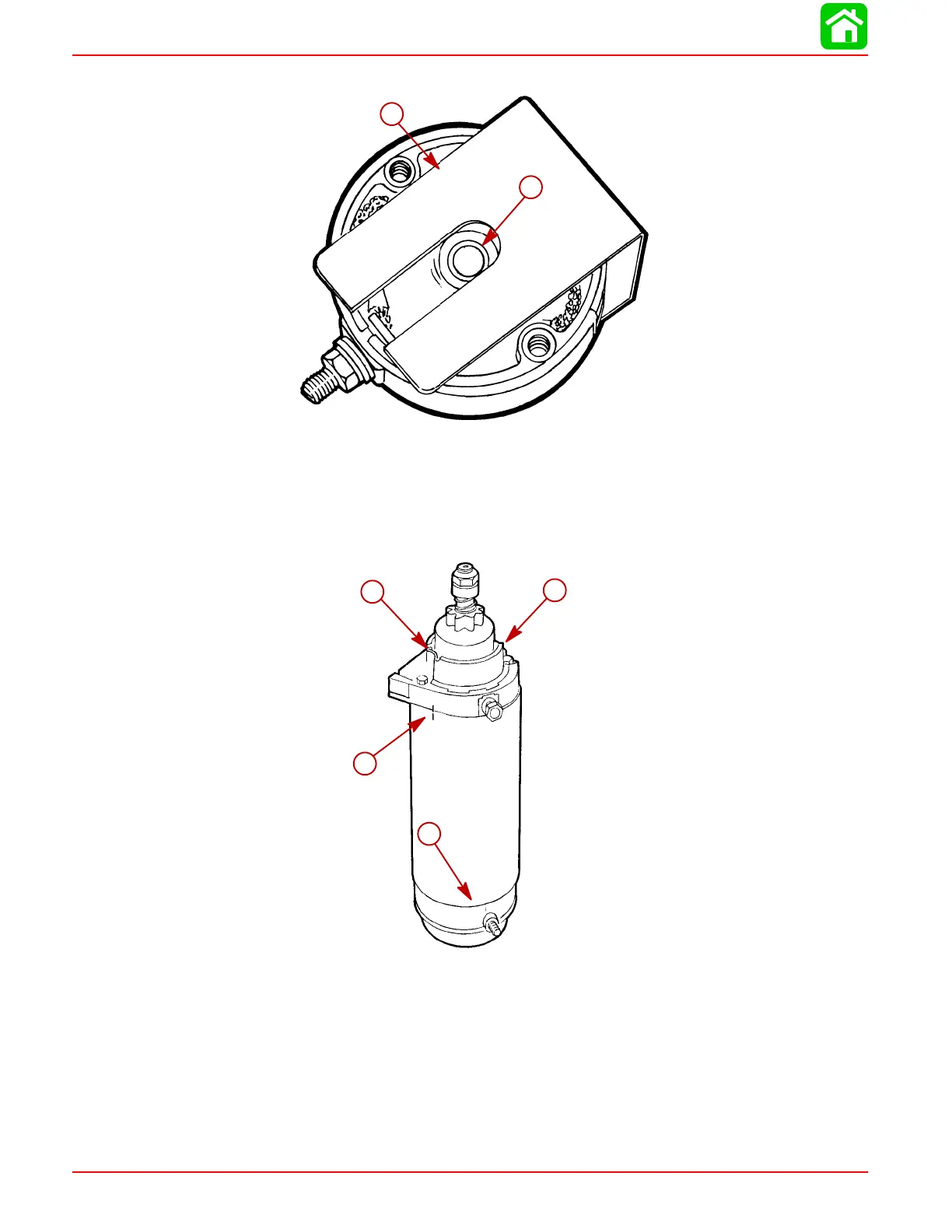

8. Place springs and brushes into brush holder and hold in place with brush retainer tool.
11661
a
b
a-Bushing Retainer Tool
b-Bushing (do not over lubricate)
9. Install armature into starter frame and align match marks (a). Install commutator end
cap onto starter frame and align match marks (b). Remove brush retainer tool. Install
through bolts (c) and torque to 70 lb. in. (8.0 N·m).
11648
c
c
a
b
a-Alignment Marks
b-Alignment Marks
c-Bolts [Torque to 70 lb. in. (8 N m)]
To Next Page
