POWER TRIM
Page 5B-36 90-883728 JULY 2001

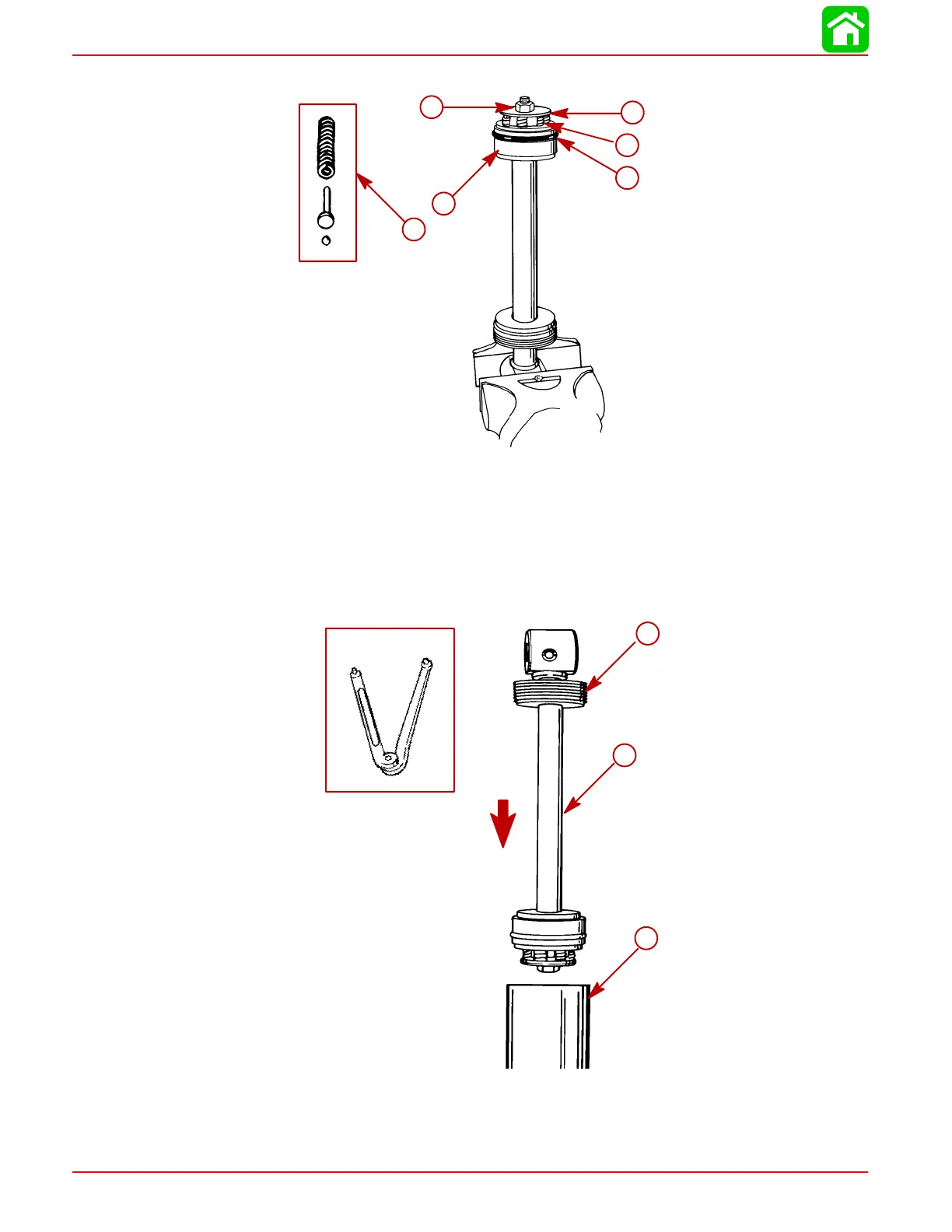

5. Install components on rod.
51340
51363
e
a
c
d
c
b
a
b
c
c
d
e
a-Piston
b-O-ring
c-Check Valve Assembly (7)
d-Washer
e-Bolt or Locknut. (Tighten securely)
6. Clamp cylinder in a soft jawed vise and install tilt rod assembly. Use spanner wrench
and tighten end cap securely.
51341
51337
91-74951
c
b
a
a
b
c
a-Cylinder
b-Tilt Rod Assembly
c-End Cap (Tighten Securely.) Use Spanner Wrench.
