POWER TRIM
90-883728 JULY 2001 Page 5B-37

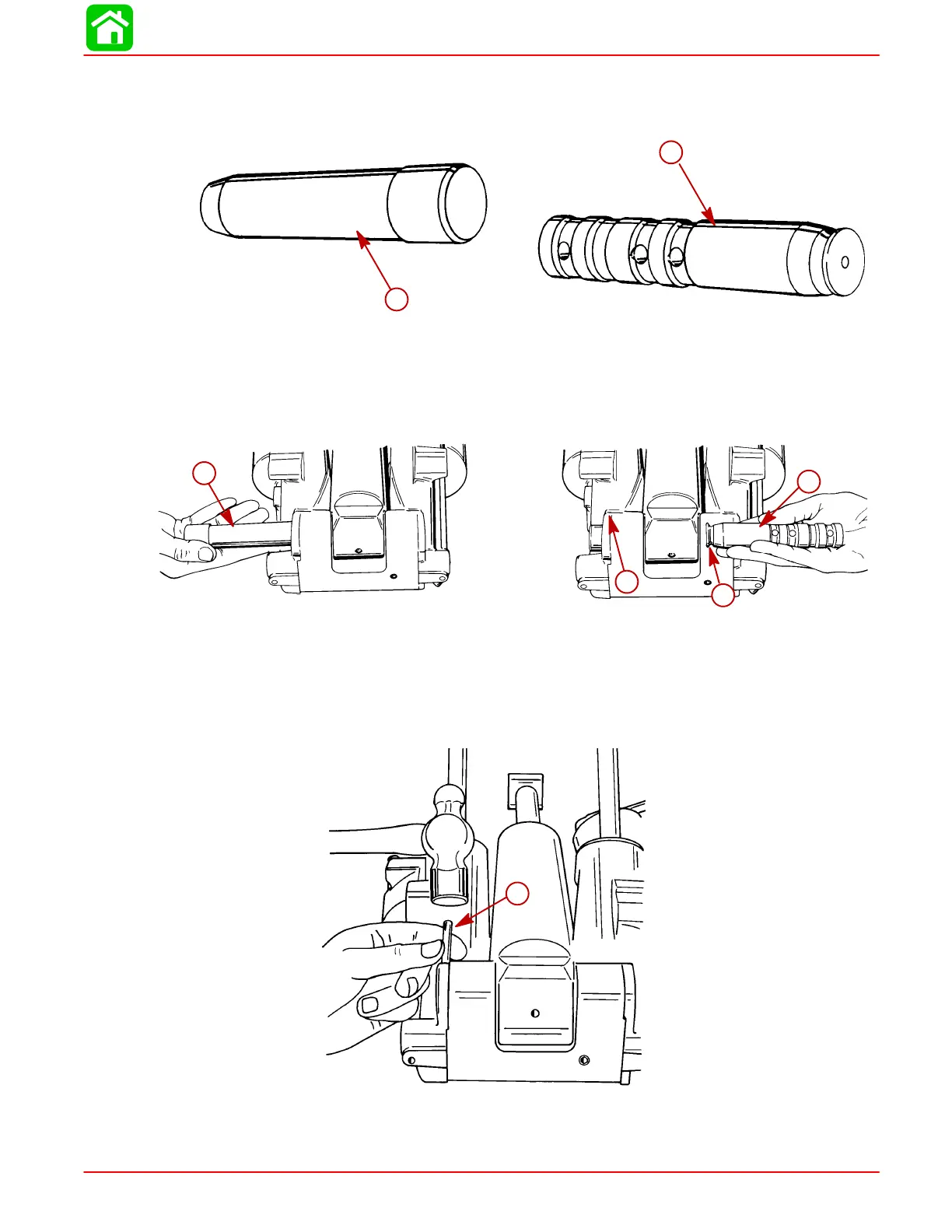

TILT RAM ASSEMBLY INSTALLATION
1. Lubricate alignment tool (91-11230) and shaft. Use Quicksilver Power Trim and Steer-
ing Fluid.
51369
a
b
a
b
a-Alignment Tool (91-11230)
b-Shaft
2. Align tilt ram and housing using alignment tool.
3. Install shaft.
51352
a
c
b
51348
a
b
c
d
a
a-Alignment Tool (91-11230)
b-Shaft
c-Groove
d-Hole [Groove (c) will Align with this Hole]
4. Drive pin in until flush.
51356
a
a
a-Pin (Drive Against Knurled End)
To Next Page
