LEFT HAND NON-RATCHETING
Page 6B-32 90-883728 JULY 2001
Bearing Carrier, Forward Gear and Bearing Adaptor
REASSEMBLY

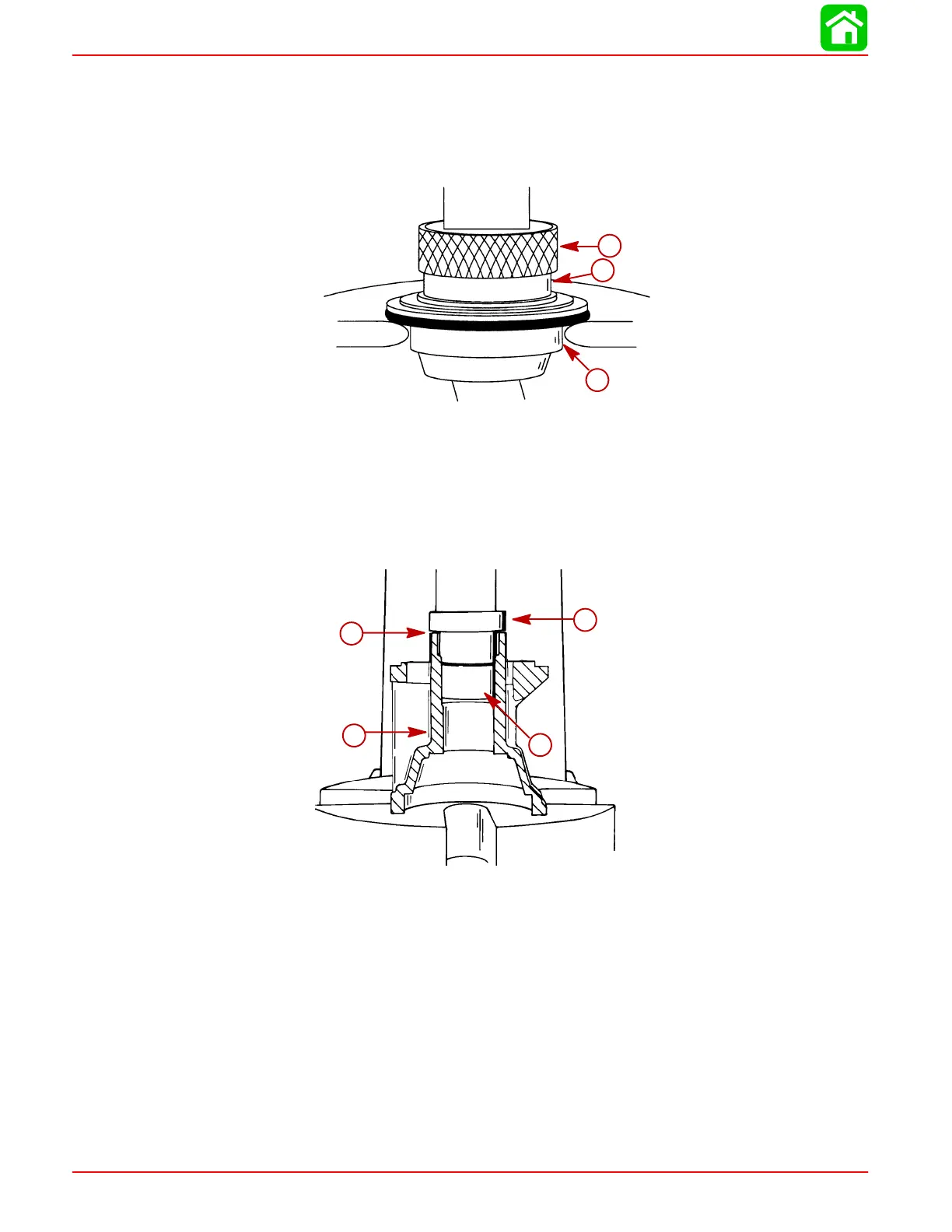

1. Using suitable mandrel, press forward gear bearing into bearing adaptor until bearing
is flush with lip of adaptor.
a
b
c
a
b
c
a-Suitable Mandrel
b-Forward Gear Bearing
c-Bearing Adaptor
PROPELLER SHAFT NEEDLE ROLLER BEARING AND OIL SEAL INSTALLATION
1. Using mandrel 91-15755, press bearing carrier needle bearing (number side up) into
bearing carrier until mandrel shoulder contacts bearing carrier.
a
b
d
c
51881
a
b
c
d
a-Mandrel (91-15755)
b-Bearing Carrier Needle Bearing
c-Bearing Carrier
d-Shoulder
2. Apply Loctite 271 to outside diameter of oil seals.
