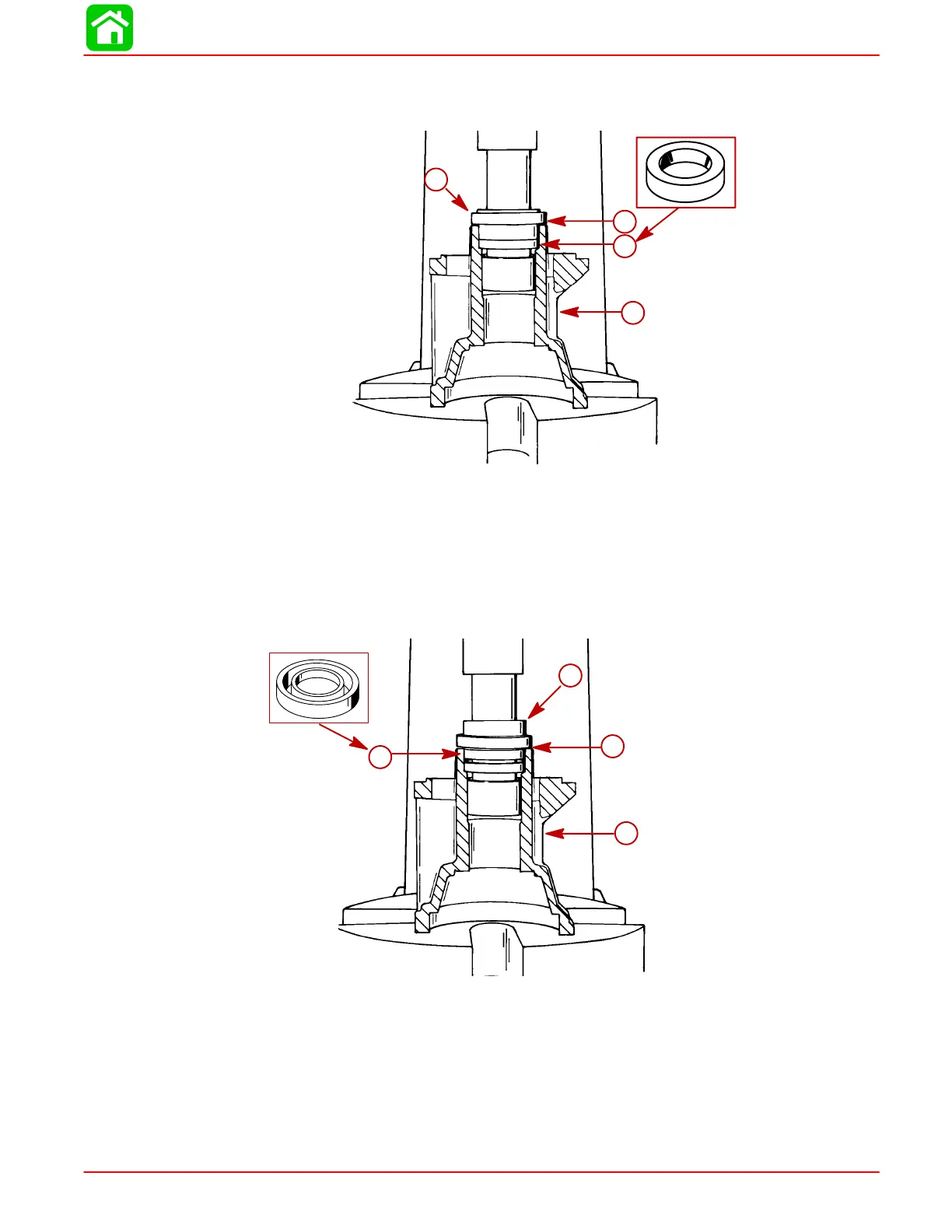

3. With seal lip facing towards bearing, press inner seal (a) using long end of mandrel
(b) (91-31108) into bearing carrier (c) until mandrel shoulder (d) bottoms out on bear-
ing carrier.
d
c
b
a
51881
a
b
c
d
a-Inner Seal
b-Mandrel (91-31108)
c-Bearing Carrier
d-Mandrel Shoulder
4. With seal lip facing towards mandrel, press outer seal (a) using short end of mandrel
(b) (91-31108) into bearing carrier (c) until mandrel shoulder (d) bottoms out on bear-
ing carrier.
d
c
a
b
51881
a
b
c
d
a-Outer Seal
b-Mandrel (91-31108)
c-Bearing Carrier
d-Mandrel Shoulder
5. Lubricate both seal lips with 2-4-C with Teflon Marine Lubricant.
