Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
Page 14 / 51 90-10238051
Helm Fitting ID Mark Hose ID Mark Description
R R-STAR Hose connects to starboard side of steering cylinder
L L-PORT Hose connects to port side of steering cylinder
Connection of the Hydraulic Hoses to the Power Steering Pump
1. Remove and discard the yellow protector cap from end of tank low pressure fitting.
2. Connect the low pressure hydraulic hose from the steering helm to the low pressure
fitting on the pump reservoir as shown. Fasten hose to fitting with constant tension
spring clamp.
b
c

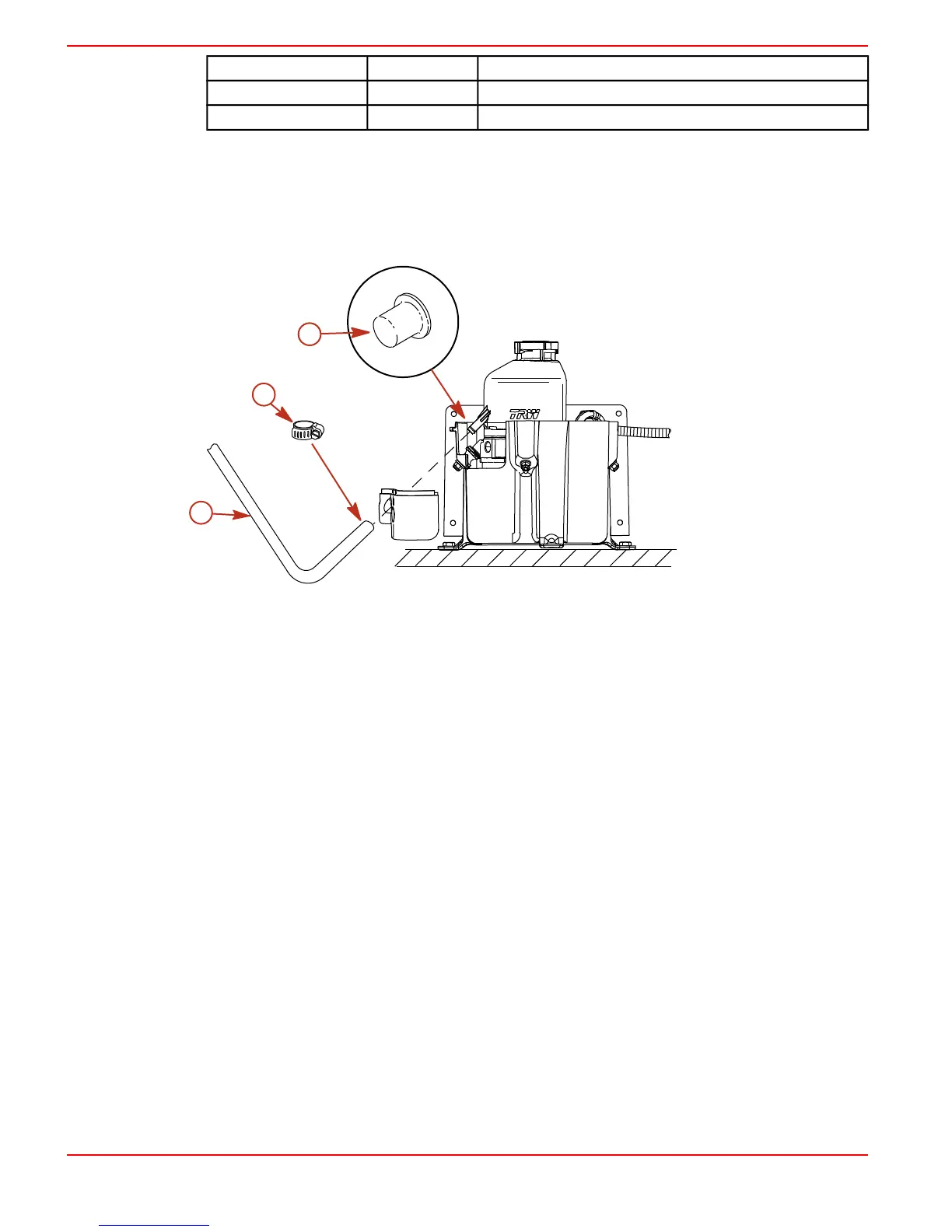

ob01462
a
a - Yellow protector cap (remove and discard)
b - Low pressure hydraulic hose from steering helm
c - Clamp
3. Ensure that O-ring seal is on end of hose.

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
