Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
90-10238051 Page 39 / 51

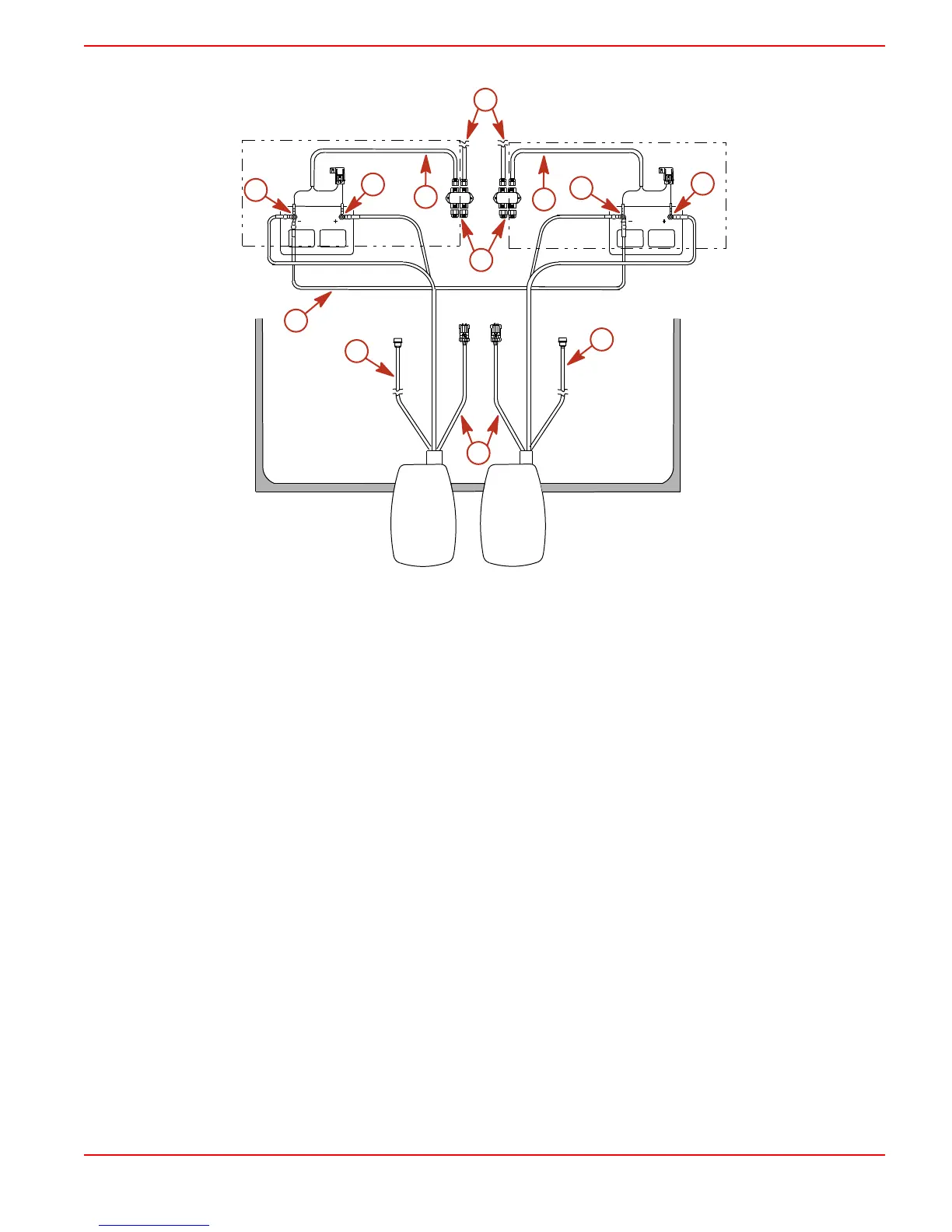

DUAL ENGINE - BATTERY AT HELM
3701
a
a
b
b
c
c
d
e
f
f
g
h
a - Black sleeve (negative)
b - Red sleeve (positive)
c - DTS power harness (optional)
d - DTS command module harness
e - Junction box weather caps
f - 14 pin data harness
g - Ground cable
h - Vessel sensor harness
Connecting Fuel Tank And Speed Sensor
IMPORTANT: Do not connect the blk/orn wire (if equipped) to the fuel tank sensor when
there is an engine battery ground strap connected to the fuel tank or sender assembly.
If not used, plug the unused open bullet connector with rubber plug.
IMPORTANT: If fuel tank is plastic and fuel sensor mounting plate is not connected to
battery ground, connect blk/orn wire (if equipped) to fuel sender mounting plate.

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
