200/225/250/275 VERADO 4-STROKE
90-10238051 Page 31 / 51
Installing DTS Command Module and Harness - Single Engine
HARNESS INSTALLATION
Locate a routing path for the harness connections so they reach their installation
points.
Inspect the routing path to make sure surfaces are free of any sharp edges or burrs
that could cut the harness.
Fasten and support the harness with clamps or cable ties along the routing path.
Make sure all connections are tight and seal all unused connectors with weather caps.
3622
a
b

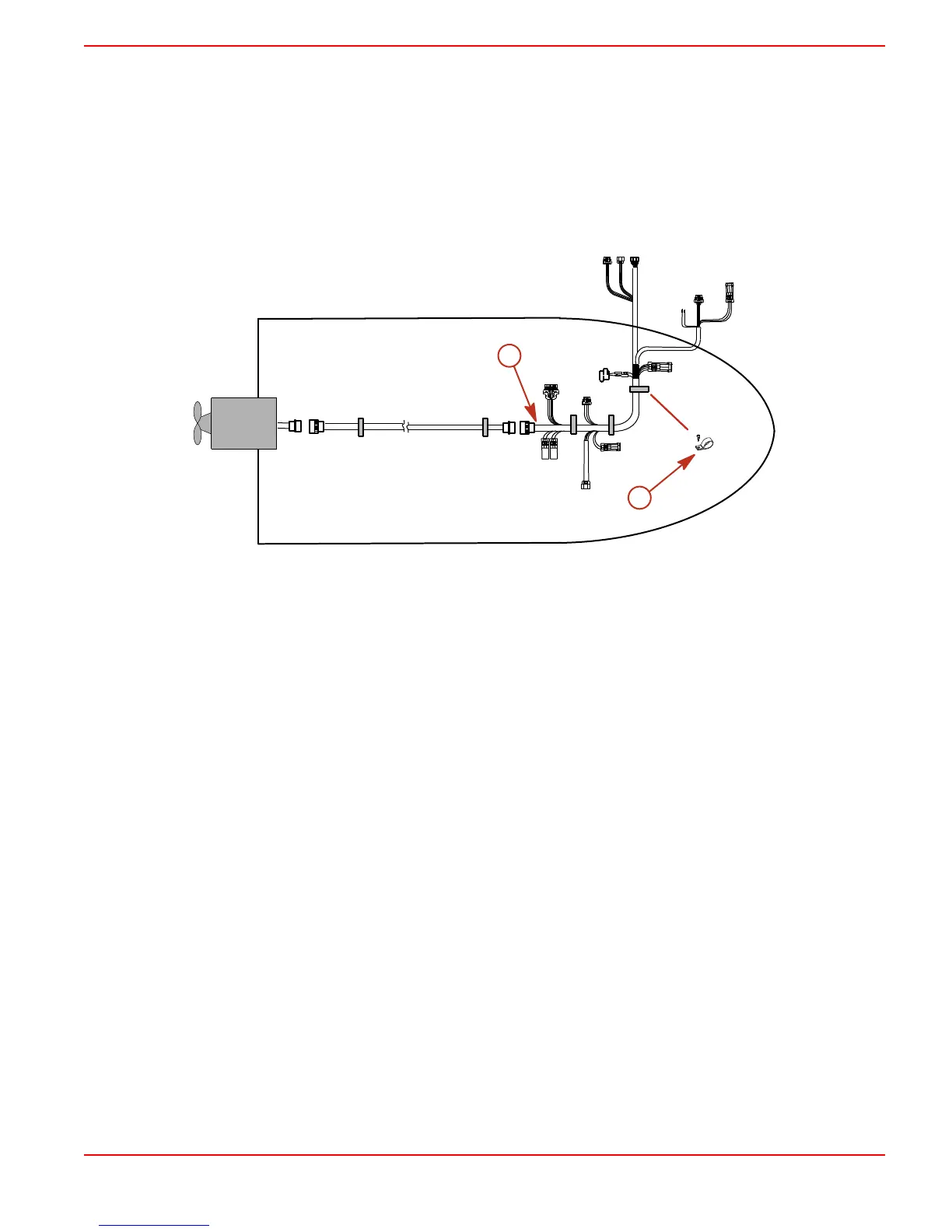

Single Helm Application
a - DTS command module harness b - Clamp or cable tie

Table of Contents

Other manuals for Mercury 225 VERADO

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 225 VERADO and is the answer not in the manual?

Mercury 225 VERADO Specifications

General IconGeneral
Horsepower225 HP
Full Throttle RPM Range5800-6400 RPM
SteeringElectro-hydraulic power steering
Dry Weight635 lbs / 288 kg
Cylinders6
Gear Ratio1.85:1
Alternator Output70 amp (882 watt)
Shaft Length20", 25"
Starting SystemElectric
Warranty3 years
Fuel Induction SystemElectronic Fuel Injection (EFI)
