Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
Page 50 / 51 90-10238051

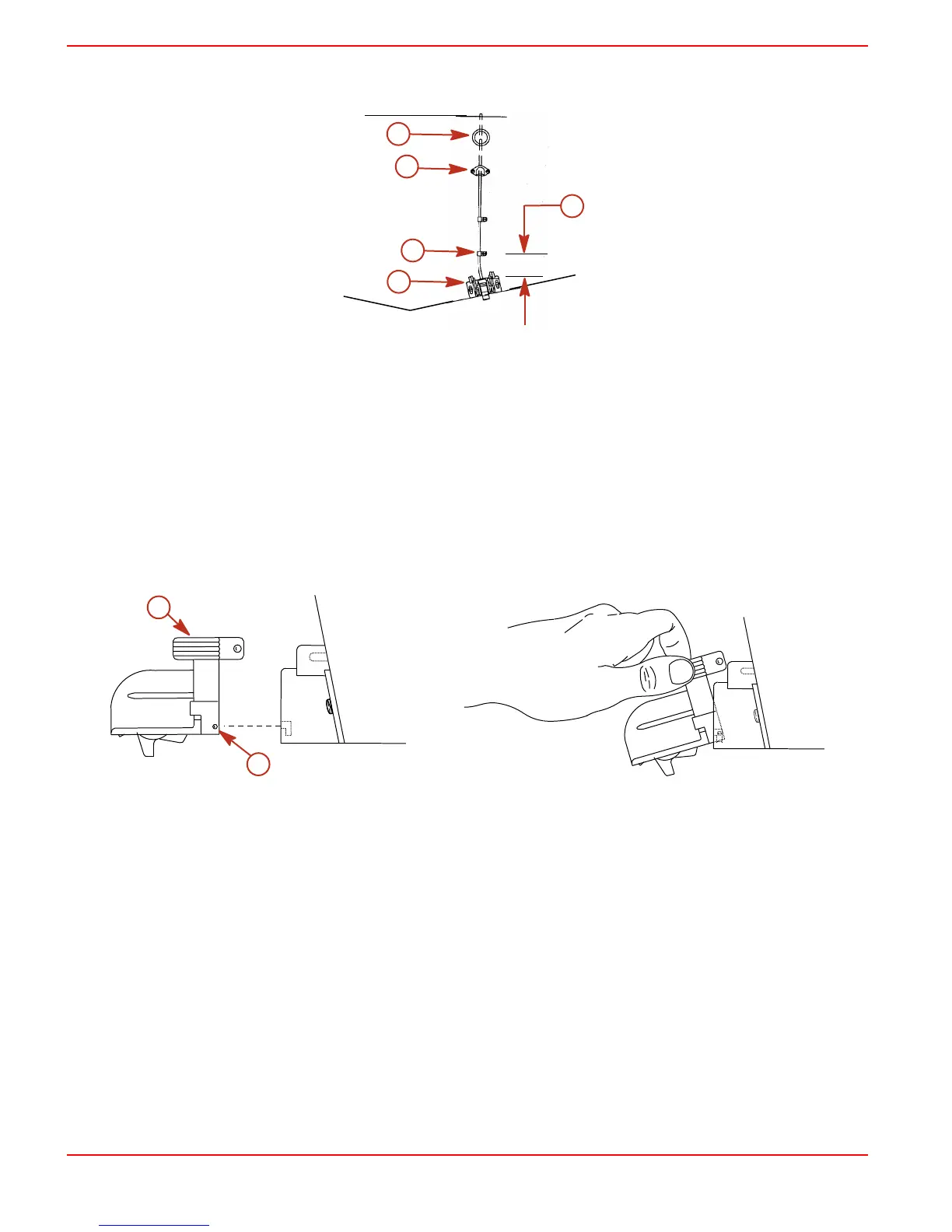

WITHOUT DRILLING HOLE THROUGH TRANSOM (OPTIONAL)
Route the cable over the transom or through a drain hole that is above the water line.
ob01510
a
b
c
d
e
a - Splash well drain hole
b - Cable cap
c - Cable clamp
d - Paddle wheel assembly
e - Distance between first cable clamp and top of paddle wheel - 25.4 mm
(1.0 in.)
Installing and Removing the Paddle Wheel
Installation - Slide the pins into the slots in the bracket and snap the tabs into place.
Removal - squeeze open (unlock) the tabs and pull on the paddle wheel.
a
b
ob01511
a - Tabs b - Pins
Wiring Connections
IMPORTANT: Before making wire connections, make sure wires are routed through the
transom.

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
