200/225/250/275 VERADO 4-STROKE
Page 4 / 51 90-10238051

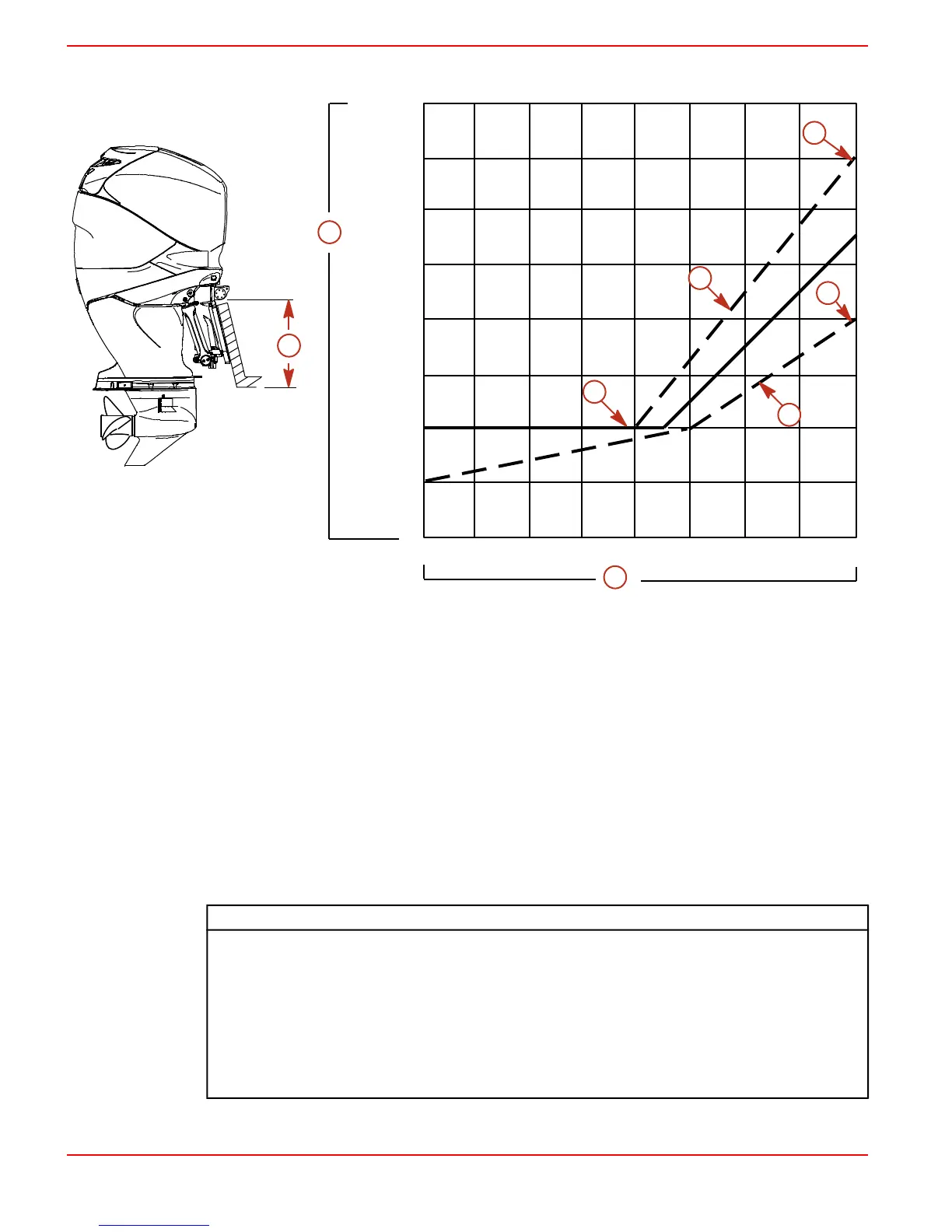

Determining Recommended Outboard Mounting Height
(20 in.)
(21 in.)
(22 in.)
(23 in.)
(24 in.)
(25 in.)
(26 in.)
(19 in.)
10
20 30 40 50 60 70 80
66.0 cm
63.5 cm
60.9 cm
58.4 cm
56.0 cm
53.3 cm
50.8 cm
48.2 cm
e
a
c
d
b
b
e
f
ob01470
a - The solid line is recommended to determine the outboard mounting height.
b - The broken lines represent the extremes of known successful outboard
mounting height dimensions.
c - The line may be preferred to determine outboard mounting height dimension,
if maximum speed is the only objective.
d - The line may be preferred to determine outboard mounting height dimension
for dual outboard installation.
e - Outboard mounting height (height from a point on the pedestal 48 mm
[1-7/8 in.] above center of top mounting hole to the bottom of the boat
transom). For heights over 56.0 cm (22 in.), a propeller designed for surfacing
operation is usually preferred.
f - Maximum boat speed (m.p.h.) anticipated.
NOTICE
• The static waterline, with boat at rest, must be below the "MAX STATIC WATERLINE" mark on the
idle relief grommet (located at the rear of the outboard), when the outboard is fully tilted in/down. If
waterline is above "MAX STATIC WATERLINE" mark, adjust boat load forward or increase (raise)
outboard mounting height to correctly place mark above waterline.
• Add 12.7 cm (5 in.) for XL models and 25.4 cm (10 in.) for XXL models to listed outboard mounting
height.
• The mounting height of the outboard must not exceed 63.5 cm (25 in.) for XL models and 76.2 cm
(30 in.) for XXL models. Mounting the outboard higher may cause damage to the gearcase
components.
