Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
Page 44 / 51 90-10238051

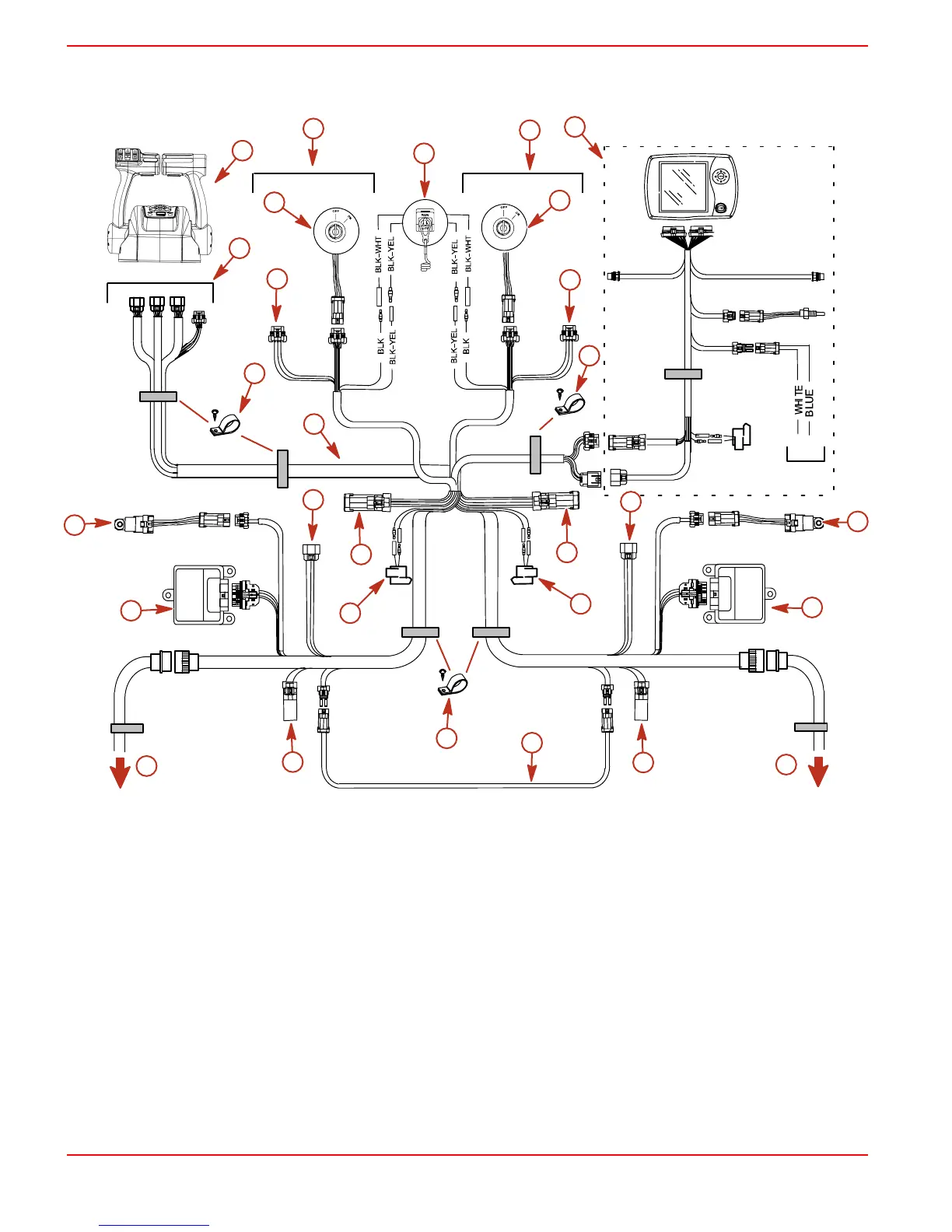

DTS Wiring - Dual Engine
CONSOLE CONTROL
+
3309
a
e
k
i
l
j
m
n
o
c
p
g
i
b
d
h
l
j
q
i
d
e
b
c
r
s
f
f
g
a - To port engine
b - Terminator resistor
c - DTS Command Module
d - Junction box connection (optional)
e - Connector - Zero Effort controls
f - Horn
g - Accessory power relay (optional)
h - DTS Command Module harness
i - Clamp
j - Connector - stop/start switch
(optional)
k - Remote control connections
l - Key switch
m -Remote control
n - To port engine
o - Lanyard stop switch
p - To starboard engine
q - System View (optional)
r - To starboard engine
s - CAN link harness

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
