Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
90-10238051 Page 17 / 51

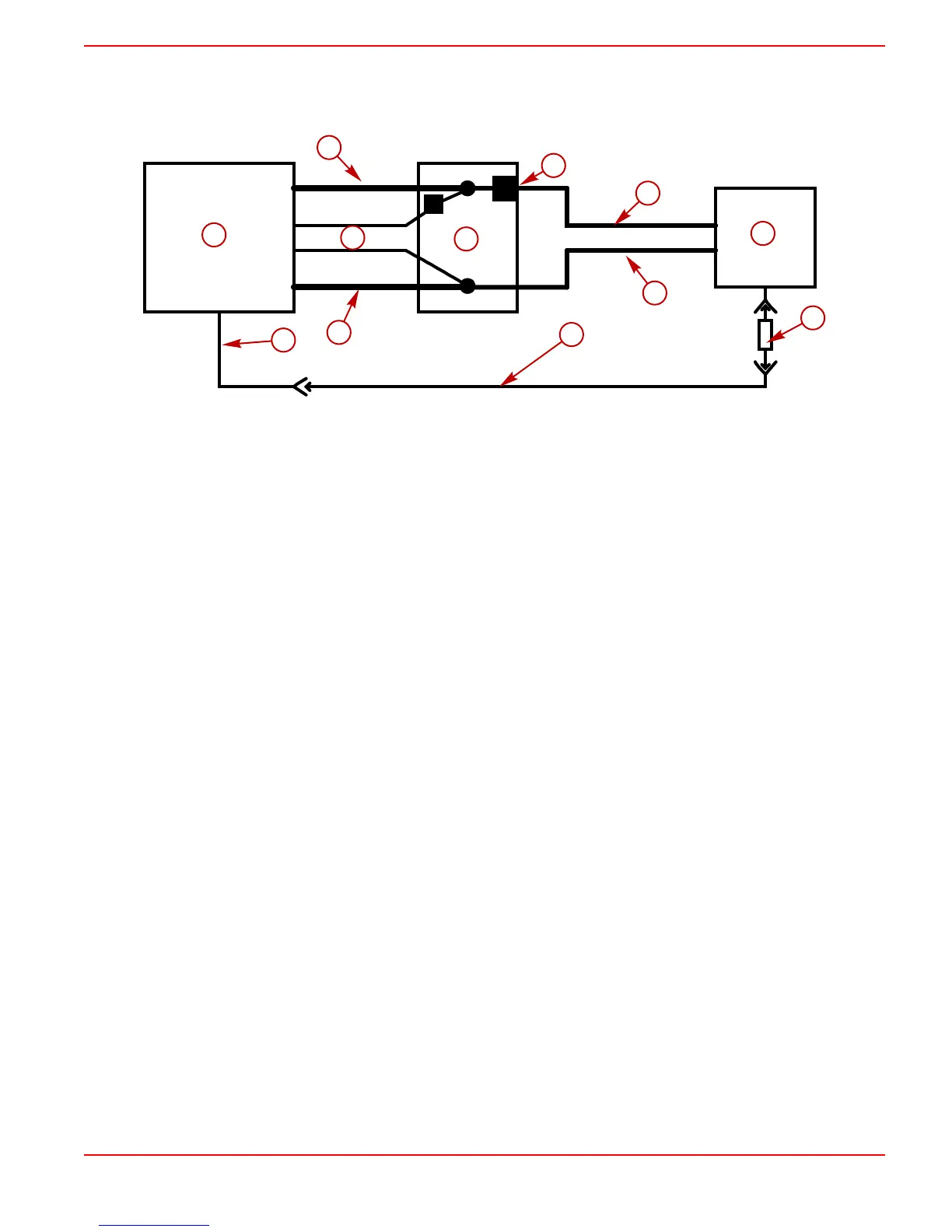

Electrical Connections to the Steering Pump
NOTE: For single engine installation, the power steering pump battery cables should be
connected directly to the outboard starting battery.
+
-
a
b
c
d
e
f
g
h
i
j
k
4250
b
Single Engine Application
a - Engine
b - Battery cable
c - DTS power harness
d - Battery
e - Power steering fuse - 90 Amp
f - Power steering pump 12V positive
harness
g - Power steering pump
h - Driver module
i - Power steering pump ground
harness
j - Power steering signal harness
k - Engine signal harness

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
