Mercury 225 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
Page 16 / 51 90-10238051

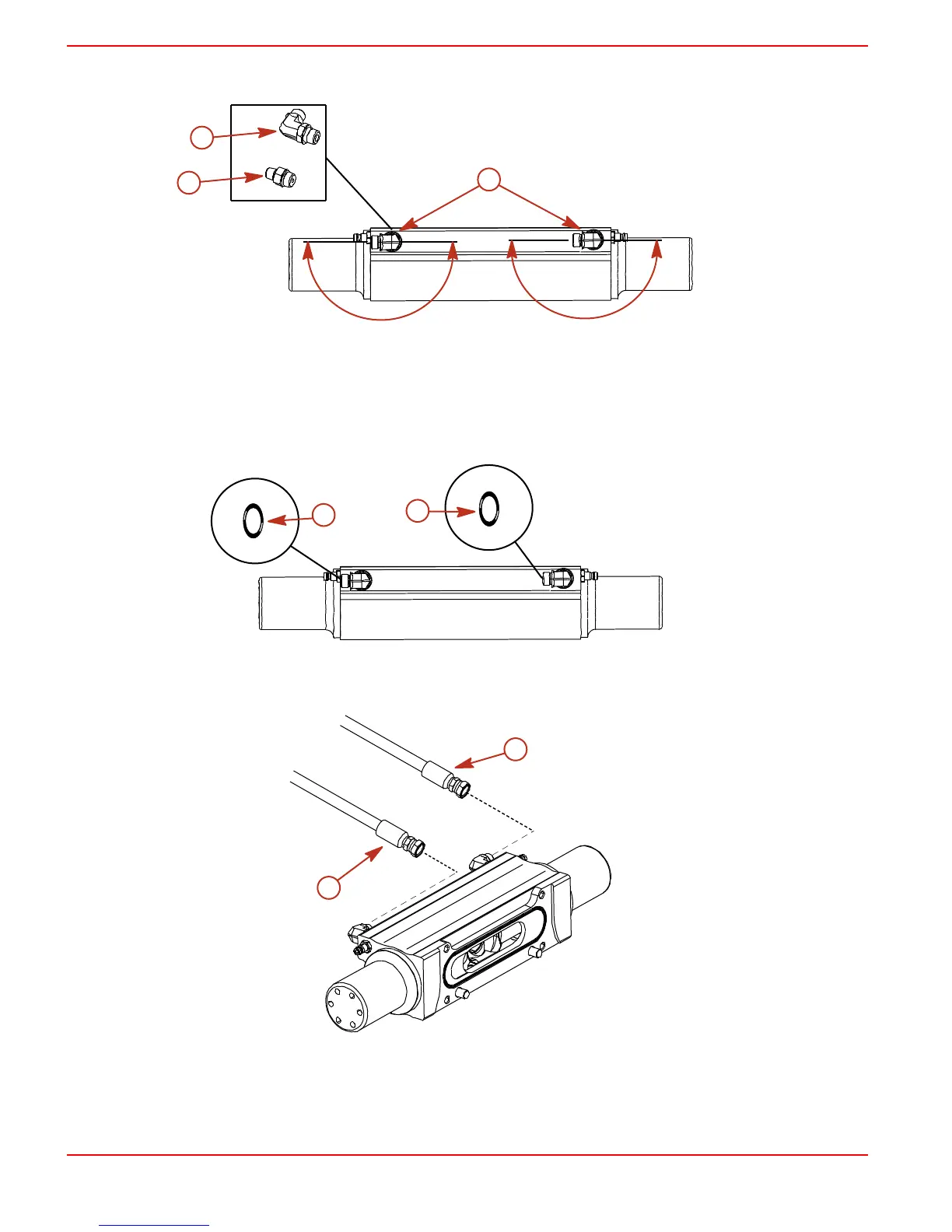

2. Position the 90° hose fittings to the desired direction. Loosen fastening nuts in order
to rotate. Position fittings and re-tighten fastening nuts.
b
c
ob01465
a
a - Position fittings
b - 90° fitting
c - Straight fitting
3. Remove and discard the shipping caps from the two fittings on the steering cylinder.
Ensure O-ring seals did not lift off with shipping caps.
4. Ensure O-ring seals are in place on end of each fitting.
a
a
ob01466
a - O-rings
5. Make the hydraulic steering hose connections to the steering cylinder as shown.
ob01467
L
P
O
R
T
R
S
T
AR
a
b
a - Port fitting (L PORT) b - Starboard fitting (R STAR)
