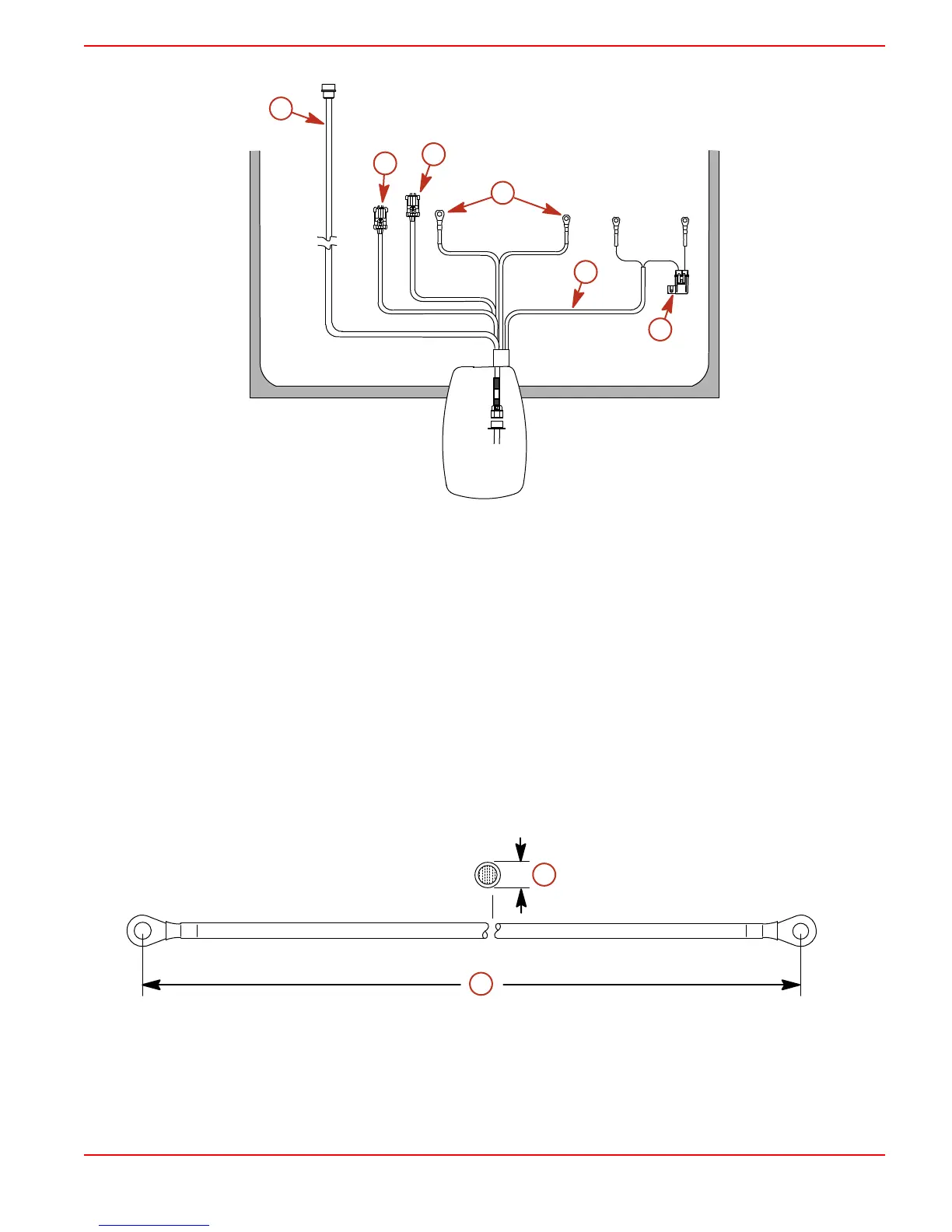

• 14 pin data harness - Connects between the command module harness and engine.
a
3675
b
c
d
e
f
a - 14 pin data harness
b - Power steering pump harness
c - Vessel sensor harness
d - Battery cables
e - DTS power harness
f - 5 Amp fuse
Battery Cable Size For Outboard Models
IMPORTANT: Only use copper battery cables. Do not use aluminum cables for any
outboard marine installations.
• If longer battery cables are required, the wire gauge size must increase. See chart
following for correct wire gauge size.
• DTS L models are equipped with 3.7 m (12 ft.) cables. DTS XL and XXL models are
not shipped with battery cables.
a
b
or70
a - Wire gauge size b - Battery cable length

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
