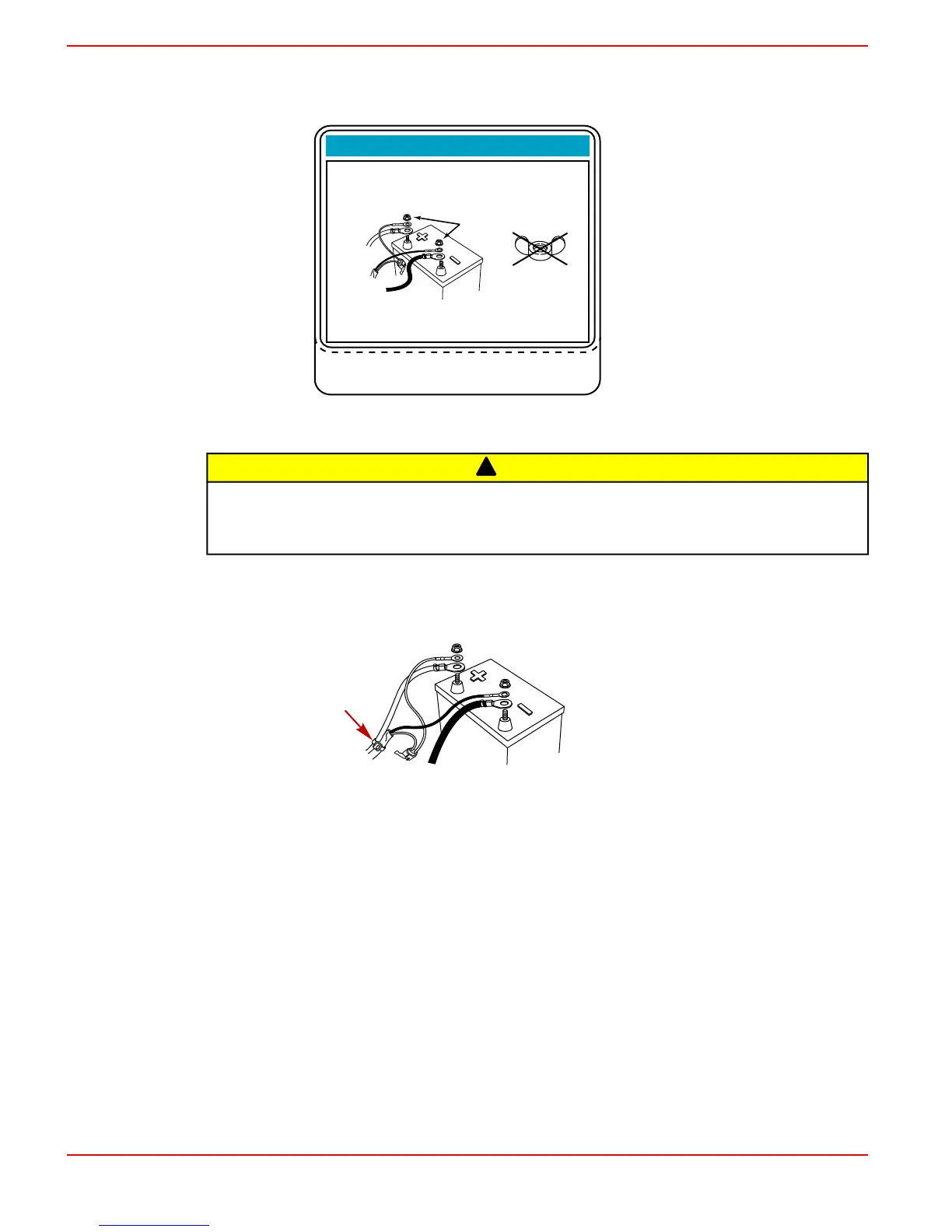

Decal needs to be placed on or near battery box for future service reference. One
5/16 in. and one 3/8 in. hex nut are supplied per battery for wing nut replacement. Metric
hex nuts are not supplied.
Place decal on or near battery box for future service
reference. 5/16" and 3/8" hex nuts supplied for
wing nut replacement. Metric hex nuts not supplied.
NOTICE - DTS & Optimax Engines
37-895387
IMPORTANT:
Battery cable size and length is critical. Refer to
engine installation manual for size requirements.
DO NOT
USE WING
NUTS.
DO NOT USE DEEP CYCLE BATTERIES!
13.5Nm (120 lbs. in.)
DTS (Digital Throttle and Shift) applications and
Optimax engines must use a marine starting
battery with 1000 MCA, 800 CCA, or 180 Ah.
rating.
3486
Connecting Battery Cables and DTS Power Harness
CAUTION
To avoid the possibility of loss of electrical power due to the DTS power harness
connection being pulled off battery, fasten the DTS power harness to one of the battery
cables near the battery with cable tie.
• Install DTS power harness directly to the starting battery only.
• Do not extend lead length of harness.
• See accessory manual for optional lead connection kit.
