200/225/250/275 VERADO 4-STROKE
90-10238051 Page 37 / 51

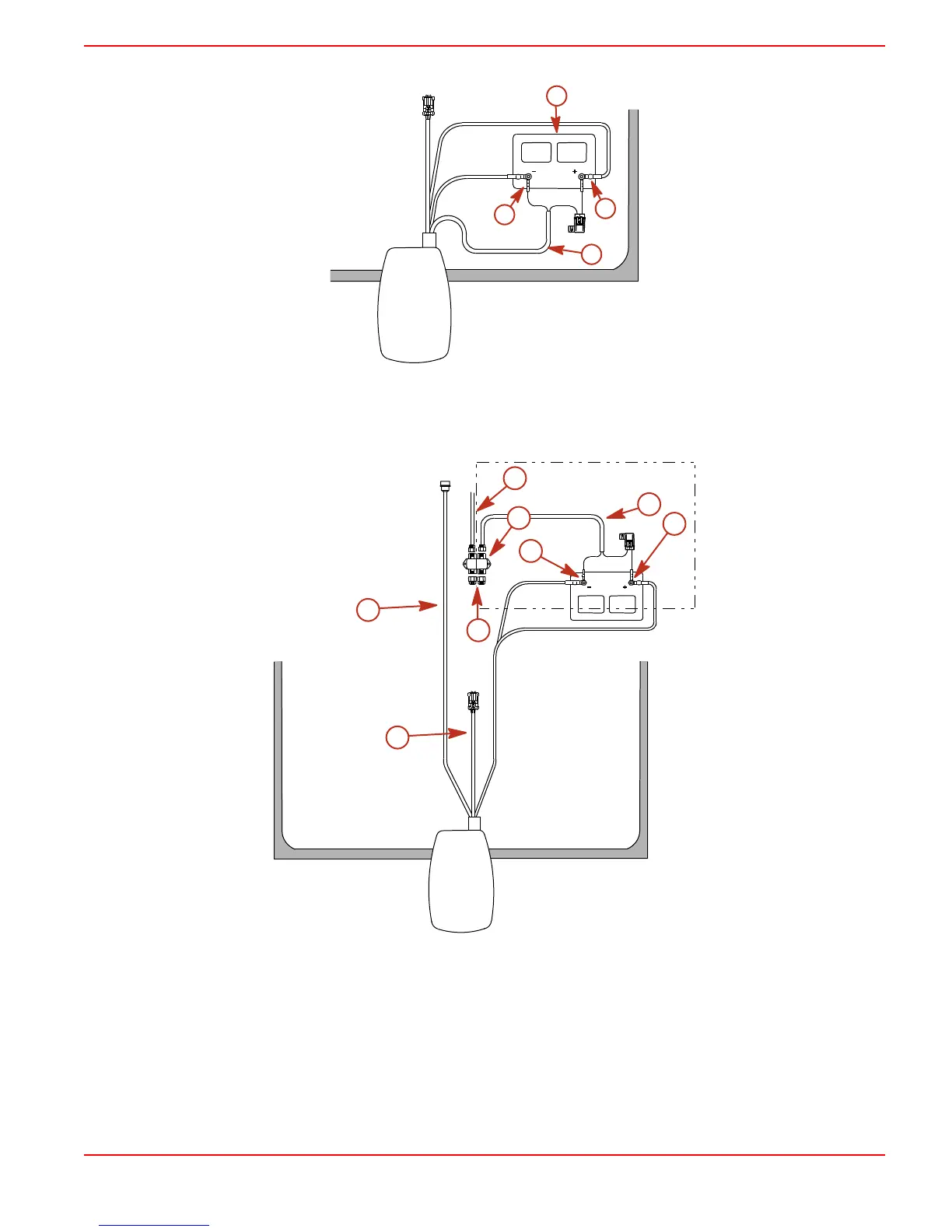

SINGLE ENGINE - BATTERY AT STERN
c
a
b
d
3679
a - Battery
b - Black sleeve (negative)
c - Red sleeve (positive)
d - DTS power harness (provided)
SINGLE ENGINE - BATTERY AT HELM
a
b
e
3699
d
c
f
g
h
a - 14 pin data harness
b - DTS command module harness
c - Junction box
d - DTS power harness (optional)
e - Red sleeve (Positive)
f - Black sleeve (Negative)
g - Vessel sensor harness
h - Weather caps

Table of Contents

Other manuals for Mercury 225 VERADO

Preview: Manual
Manual145 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 225 VERADO and is the answer not in the manual?

Mercury 225 VERADO Specifications

General IconGeneral
Horsepower225 HP
Full Throttle RPM Range5800-6400 RPM
SteeringElectro-hydraulic power steering
Dry Weight635 lbs / 288 kg
Cylinders6
Gear Ratio1.85:1
Alternator Output70 amp (882 watt)
Shaft Length20", 25"
Starting SystemElectric
Warranty3 years
Fuel Induction SystemElectronic Fuel Injection (EFI)
