200/225/250/275 VERADO 4-STROKE
Page 38 / 51 90-10238051

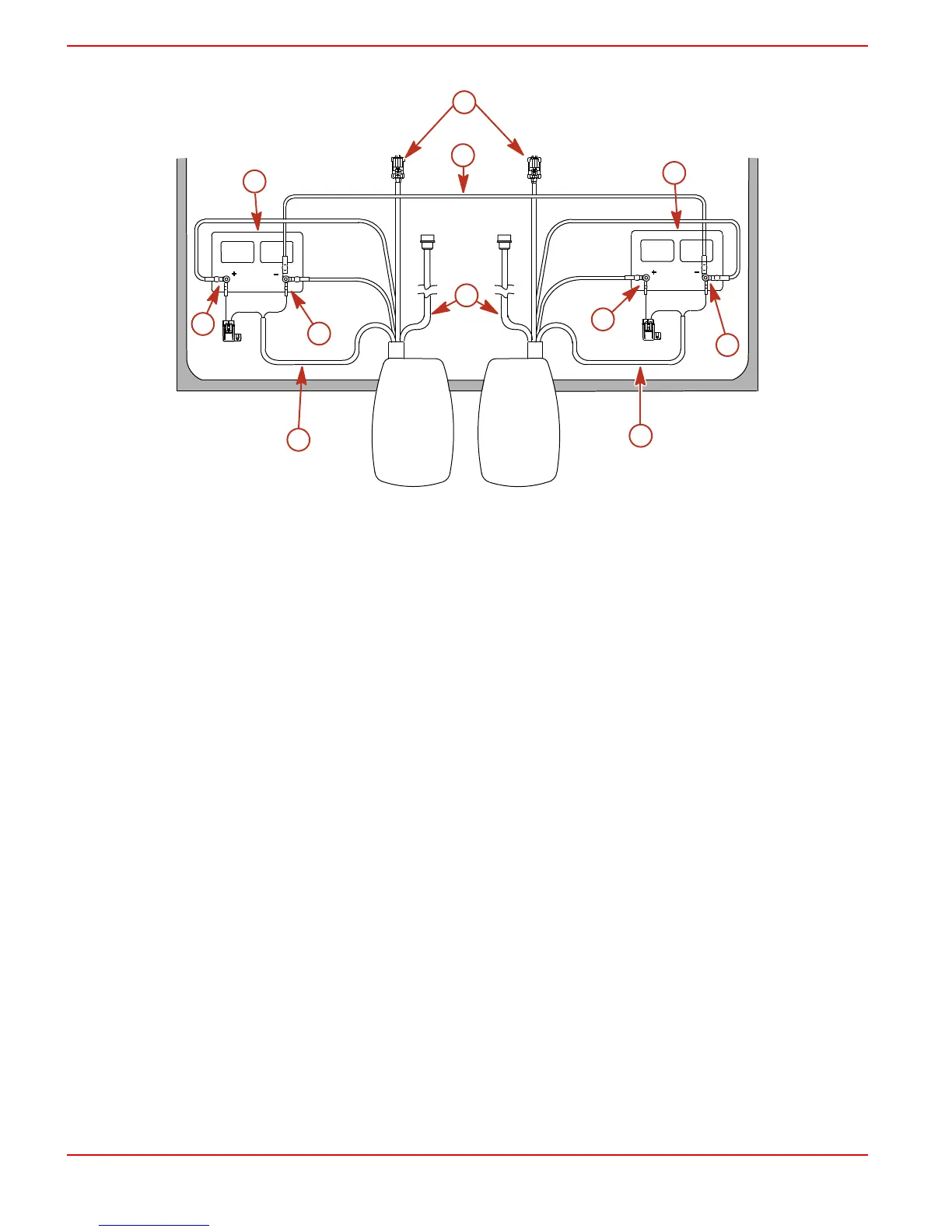

DUAL ENGINE - BATTERY AT STERN
c
b
c
a
b
a
3680
d
d
e
f
g
a - Red sleeve (positive)
b - Black sleeve (negative)
c - Battery
d - DTS power harness (provided)
e - Ground cable
f - Data cable
g - Vessel sensor harness
