CAUTION
To avoid loss of outboard, ensure that a minimum of two full threads of bolt extend
beyond locknut after tightening locknut. Ensure mounting nut is tightened against
transom, not the shank of the mounting bolt.
a
b
c
d
5552
e

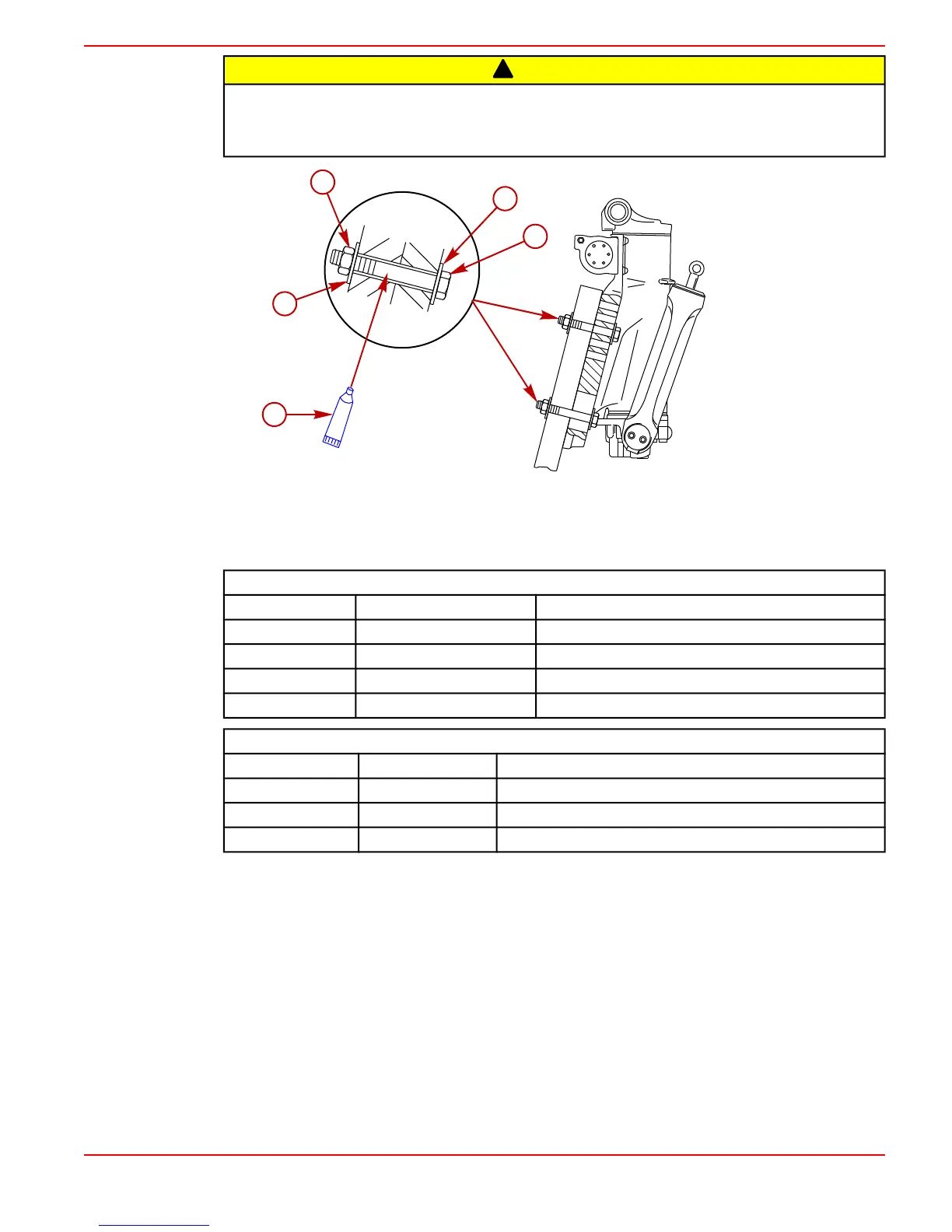

a - Transom bolts (1/2 x 20) (4)
b - Flat washers - outer (4)
c - Nylon insert locknuts (4)
d - Flat washers - inner (4)
e - Marine sealer - apply to shank of
bolts, not threads
Outboard Transom Mounting Hardware - Supplied with Outboard
Part Number Part Name Description
10-67755003 Transom bolt 1/2 x 20 x 5.50 in. long (3.25 in. thread)
11-826711-17 Nylon insert locknut 1/2 x 20
12-28421 Washer - inner 0.516 in. ID x 1.50 in. OD
12-895062 Washer - outer 0.551 in. ID x 1.06 in. OD
Available Transom Mounting Bolts
Part Number Part Name Description
10-814259 Transom bolt 1/2 x 20 x 4.00 in. long (2.25 in. thread)
10-67755-1 Transom bolt 1/2 x 20 x 4.50 in. long (2.25 in. thread)
10-67755-2 Transom bolt 1/2 x 20 x 6.50 in. long (2.75 in. thread)

Mercury 225 VERADO Specifications

General

Horsepower	225 HP
Full Throttle RPM Range	5800-6400 RPM
Steering	Electro-hydraulic power steering
Dry Weight	635 lbs / 288 kg
Cylinders	6
Gear Ratio	1.85:1
Alternator Output	70 amp (882 watt)
Shaft Length	20", 25"
Starting System	Electric
Warranty	3 years
Fuel Induction System	Electronic Fuel Injection (EFI)
