Mercury 4000 MPC GEN II User Manual

4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS
Page 10 / 22 90-8M0103111 FEBRUARY 2015

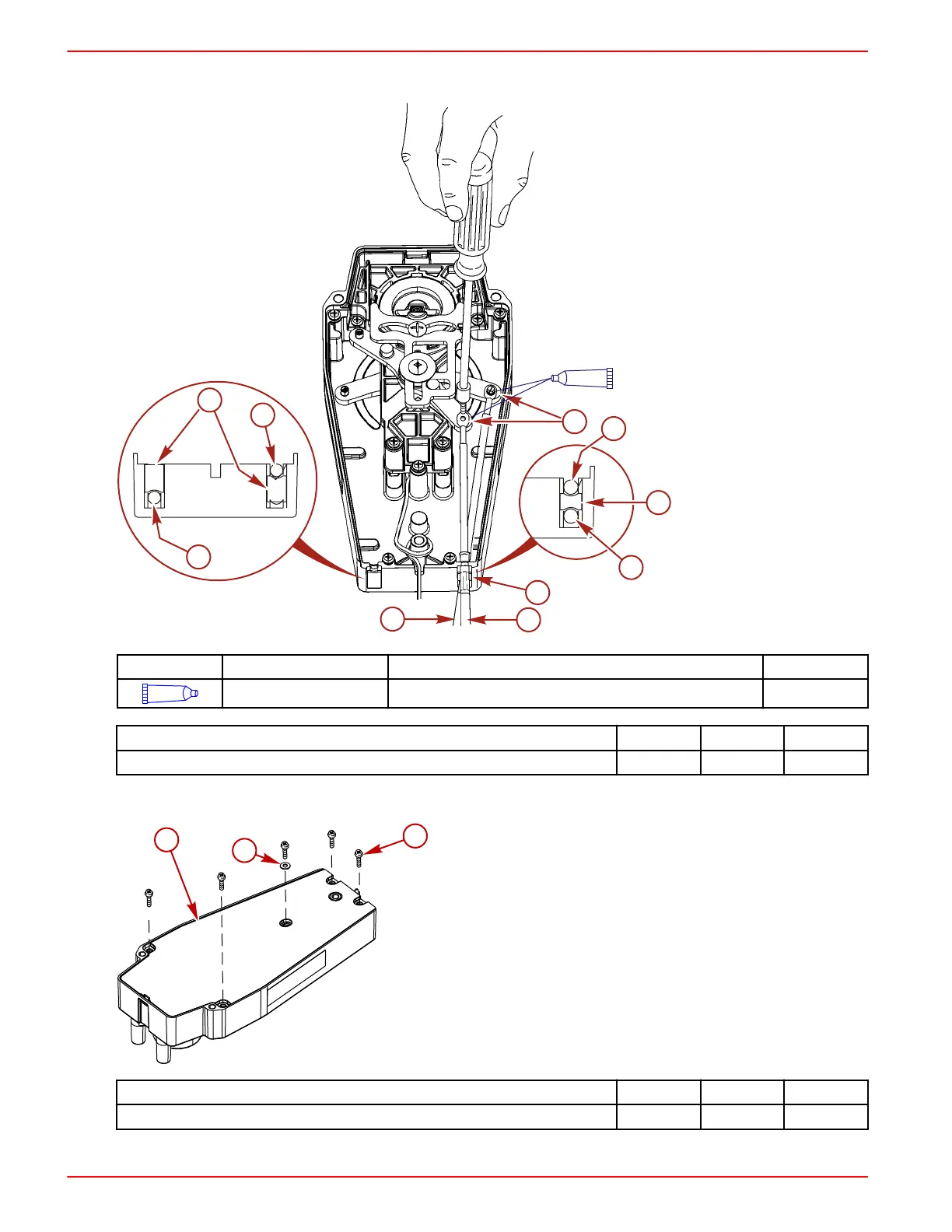

3. Tighten the cable fastener screws to the specified torque.
a - Small spacer
b - Screw
c - Shift cable
d - Throttle cable
e - Large spacer
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Control cable fastener screw threads 92-809819
Description Nm lb‑in. lb‑ft
Control cable fastener screws 2.8 25 –
4. After installing the control cables, secure the back plate with five screws and the washer. Tighten the screws to the
specified torque.
a - Back plate
b - Washer
c - Screw (5)
Description Nm lb‑in. lb‑ft
Back plate screws (5) 1.1 10 –
17555
7
b
d
a
c
d
c
e
c
d
a
17557
a
c
b

Mercury 4000 MPC GEN II Specifications

General

Brand	Mercury
Model	4000 MPC GEN II
Category	Remote Control
Language	English
