4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS
Page 4 / 22 90-8M0103111 FEBRUARY 2015
IMPORTANT: Control handle friction is necessary for proper mechanical control operation. Insufficient friction may cause
undesirable throttle arm operation.

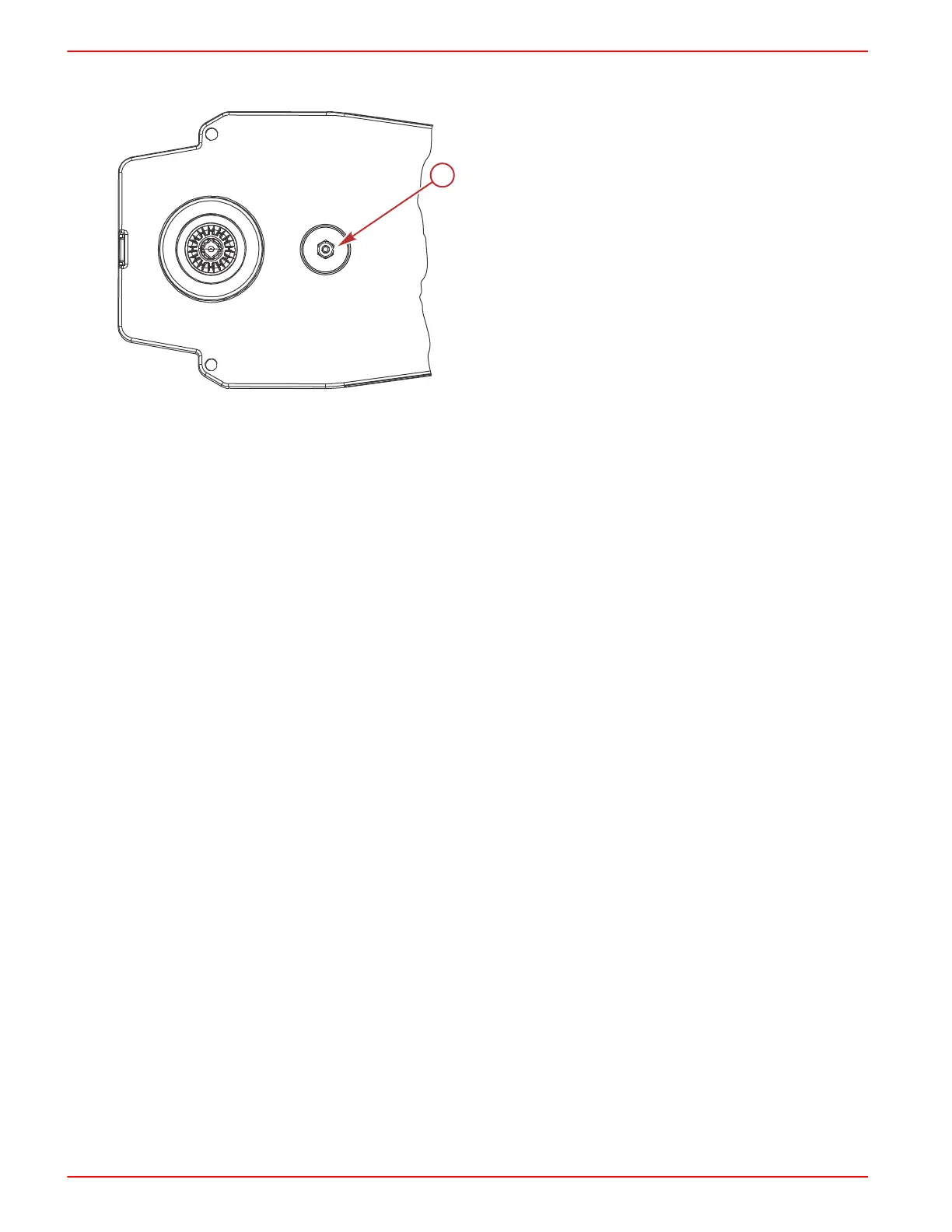

a - Control handle friction adjusting nut
GEN II Series Panel Mount Remote Control Installation
Required Mounting Clearances for GEN II Pistol Grip Fingertip Lock Release Panel
Mount Control
IMPORTANT: GEN II throttle and shift cables are required with the GEN II remote controls. The remote control cables must
be the correct length. Sharp bends when the cables are too short result in kinks. Cables that are too long require unnecessary
bends and/or loops. Both conditions place extra stress on the cables resulting in unfavorable shift and throttle operation. The
minimum bend radius of the remote control cable is 30.5 cm (12 in.). For applications that require a smaller than the minimum
radius, multiple bends or lengths longer than 5.5 m (18 ft), Mercury/Quicksilver GEN II Platinum or Premium cables are
required. Refer to the Mercury Precision Parts Accessories Guide.
57833
a
