4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS

90-8M0103111 FEBRUARY 2015 Page 17 / 22

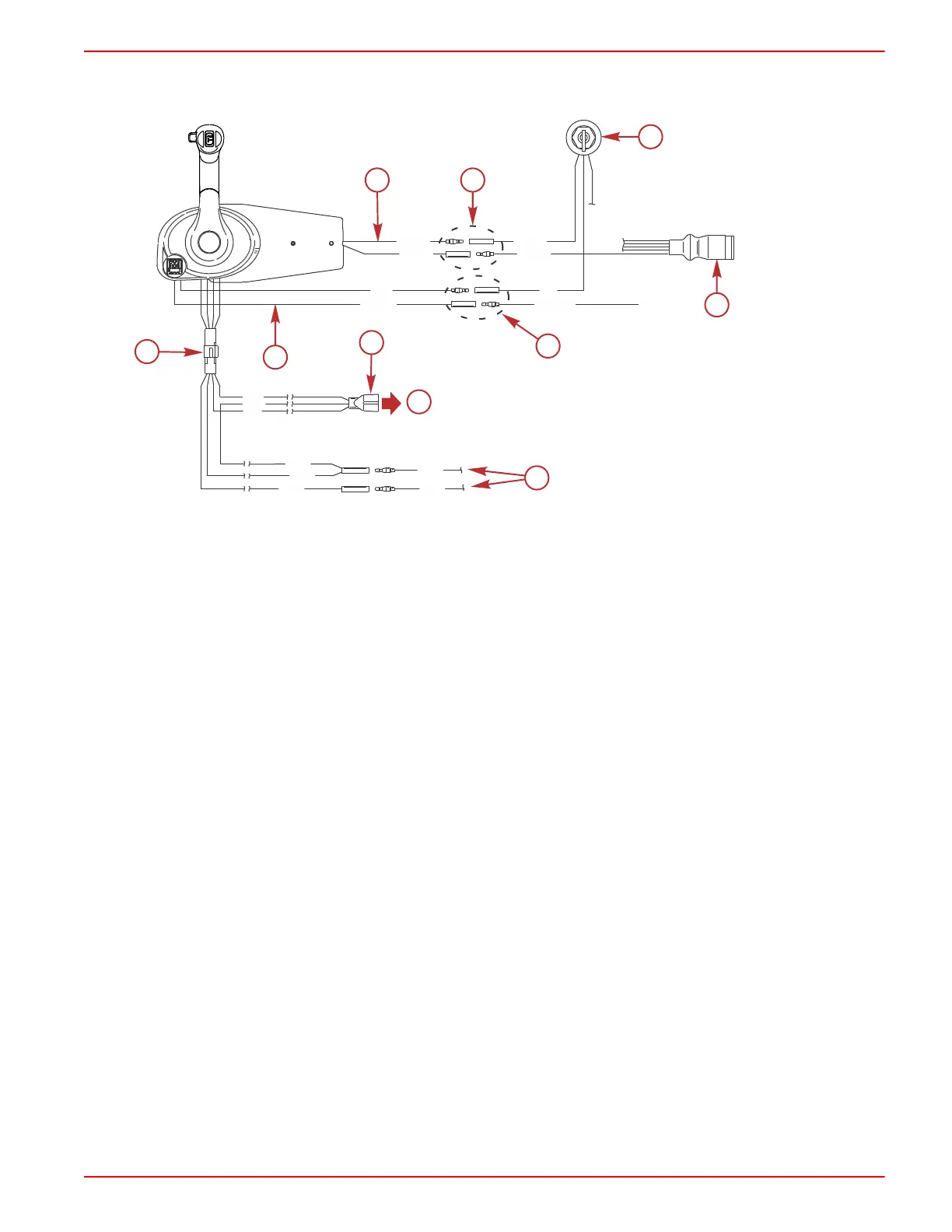

Mercury MerCruiser All Single Engine Gasoline Models

a - Neutral start safety leads

b - Bullet or eyelet connectors

c - Ignition key switch

d - Engine harness connector

e - Trim limit switch

f - Power trim connector

g - Lanyard stop leads

h - 4 pin plastic connector

i - To power trim pump

+ 1 2 V

YEL/RED

PPL/WHT

PPL

BLU

PPL

GRN

RED

24977
