Mercury 4000 MPC GEN II User Manual

4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS
90-8M0103111 FEBRUARY 2015 Page 19 / 22

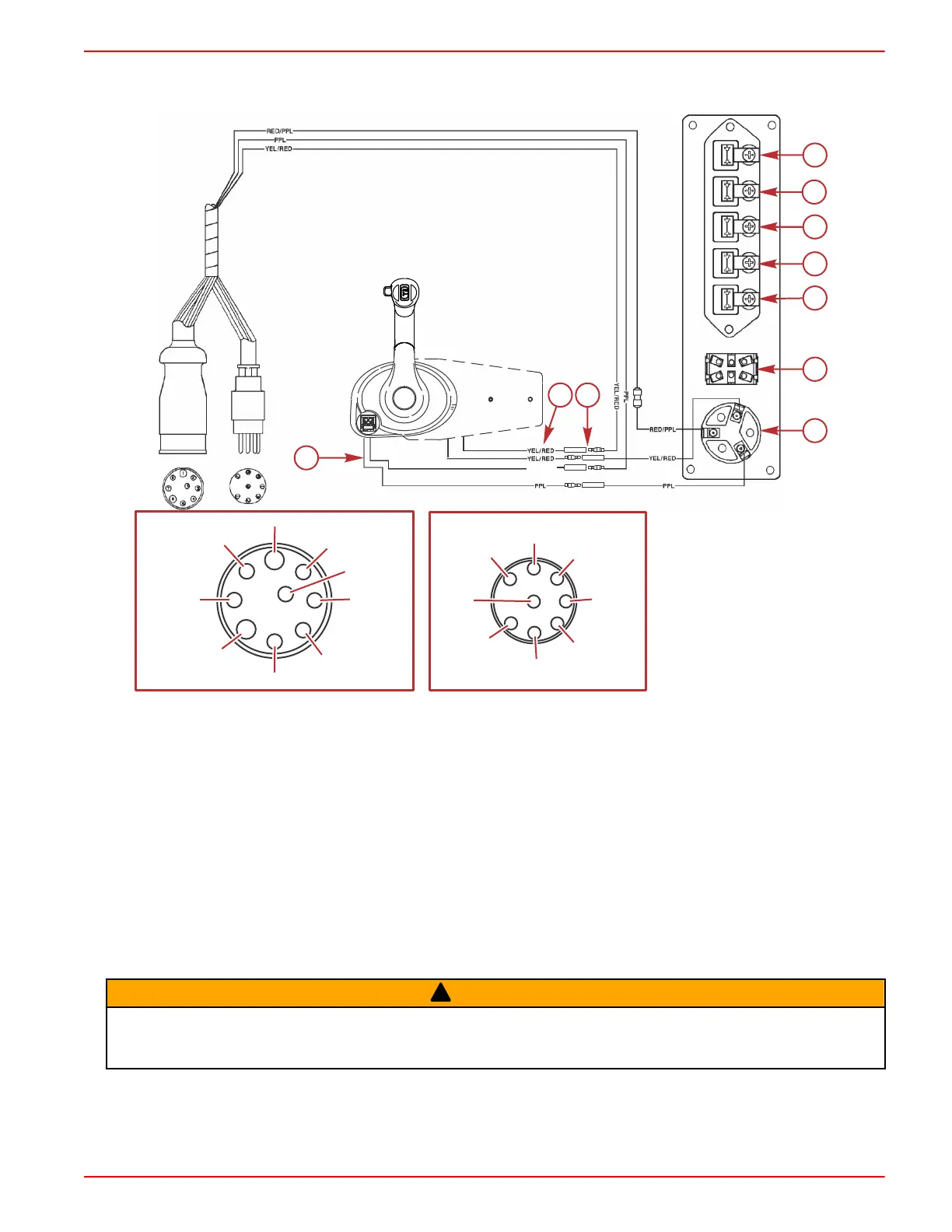

Mercury MerCruiser D7.3L/270 Diesel
a - Water in fuel indicator
b - Coolant temperature
c - Oil pressure
d - Alternator
e - Pre‑heat
f - Light switch and audio test
g - Ignition key switch
h - Neutral start switch leads
i - Bullet or eyelet connectors
j - Lanyard stop leads
Mechanical Remote Control Maintenance
!
WARNING
Neglect or improper maintenance, repairs, or inspections of the power package can result in product damage or serious
injury or death. Perform all procedures as described in this manual. If you are not familiar with proper maintenance or
service procedures, consign the work to an authorized Mercury Marine dealer.
Maintenance and safety instructions are the owner’s responsibility and must be performed at the following specified intervals:
• After the first 25 hours of use, follow the instructions in 1, 2, and 3, below.
• A regular 100‑hour or yearly (whichever comes first) maintenance schedule should be followed, involving all of the
instructions listed below.
A B
24979
a
b
c
d
e
f
g
h i
j
BLK/YEL (1)
BLK (8)
WHT/GRN (5)
BLU/TAN (2)
TAN/BLK (3)
BRN (4)
B
YEL/RED (7)
GRY (2)
BRN/WHT (10)
TAN (3)
TAN/BLU (4)
PPL (5)
RED/PPL (6)
A
LT BLU (8)
BLK (1)
BLK (7)
PUR/WHT
TAN/WHT (6)
PPL/WHT
