4000 MPC GEN II PISTOL GRIP REMOTE CONTROL INSTALLATION INSTRUCTIONS
90-8M0103111 FEBRUARY 2015 Page 9 / 22
NOTE: For Bravo Three, Blackhawk Drive, and for 3.0 Liter EFI GEN ll and OptiMax GEN ll outboard models, refer to the
instructions for standard rotation control cable installation.
2.
Mercury MerCruiser models standard rotation ‑ The control cable must be installed in the remote control so the cable
end will move in the direction of "X" when the shift handle is placed in the forward position.
3.
Mercury MerCruiser models counterrotation ‑ The control cable must be installed in the remote control so the cable
end will move in the direction of "Y" when the shift handle is placed in the forward position.

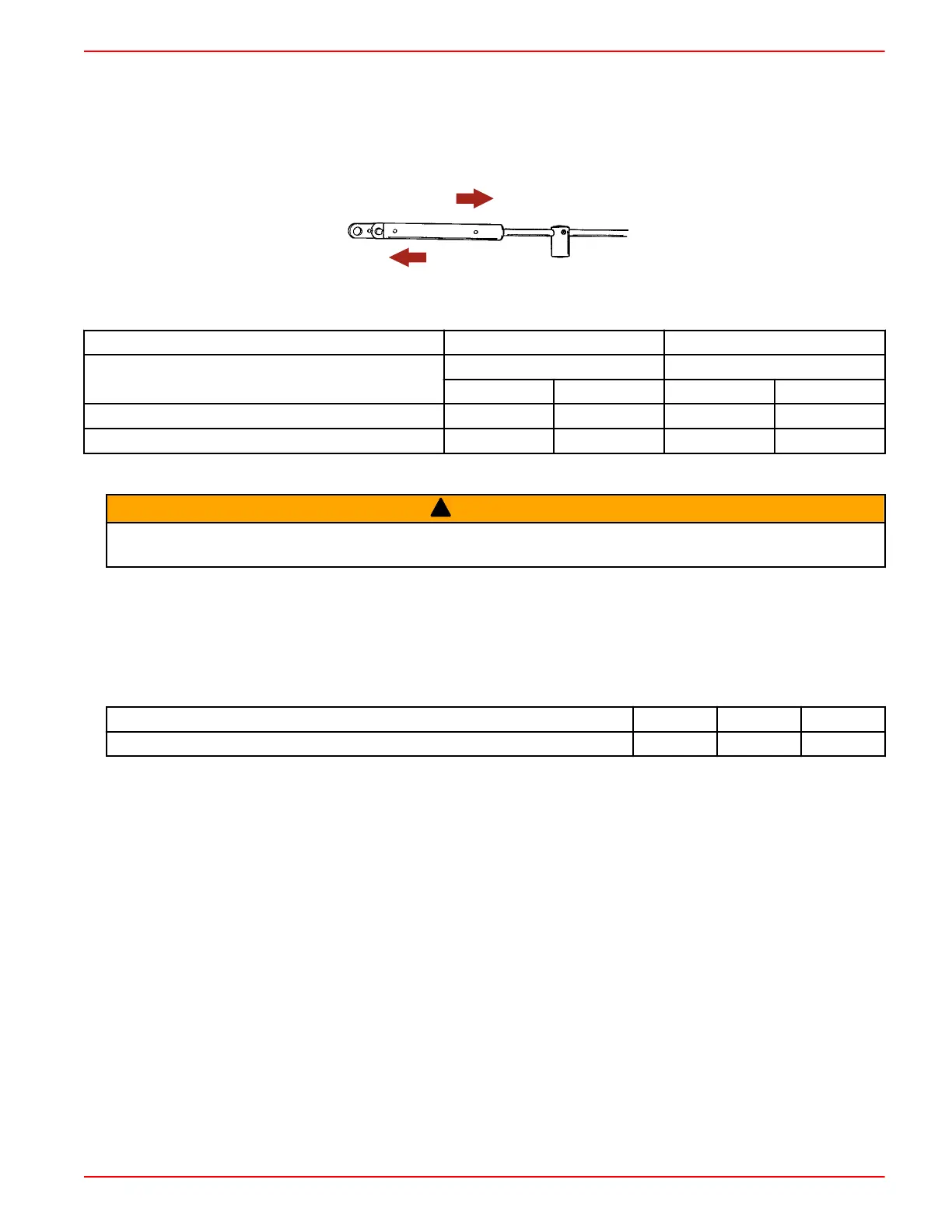

Direction of arrow (viewed at shift plate)
Mercury MerCruiser Models Standard Rotation Counterrotation
Starboard Mount Mechanical Control
Anchor Attaching Location Anchor Attaching Location
Shift Cable Throttle Cable Shift Cable Throttle Cable
Direction of arrow X X Y X
Lever number 4 2 3 2
Typical Throttle and Shift Cable Installation, Outboard and Mercury MerCruiser
!
WARNING
Improper installation can result in sudden, unexpected loss of throttle and shift control, resulting in serious injury or death.
Install all control components properly.
IMPORTANT: Threads of the control cable fastener screws contain a threadlocker. Additional threadlocker should not be
applied during the original installation. If the screws are installed and then removed for any reason, apply an appropriate
amount of Loctite 271 Threadlocker on the screw threads and tighten to the specified torque. Failure to apply Loctite 271
Threadlocker on the cable fastener screw threads, or to tighten screws to the specified torque, can lead to the screws
loosening, which could result in loss of throttle or shift control.
IMPORTANT: Applying too much Loctite can result in the locking agent contacting other moving parts of the control,
preventing or limiting proper operation.
Description
Nm lb‑in. lb‑ft
Control throttle and shift cable screws 2.8 25 –
1. Apply Loctite 271 Threadlocker to the threads of the cable fastener screws.
2. Connect the control cables to the appropriate arm in the remote control module.
