Mercury 60 4-Stroke User Manual

MAINTENANCE
81
Open the fuse holder and look at the silver colored band inside the
fuse. If band is broken, replace the fuse. Replace fuse with a new
fuse with the same rating.
20
15
25
25
20
2
5
j
i
a
b
c
d
e
f
g
h
28900

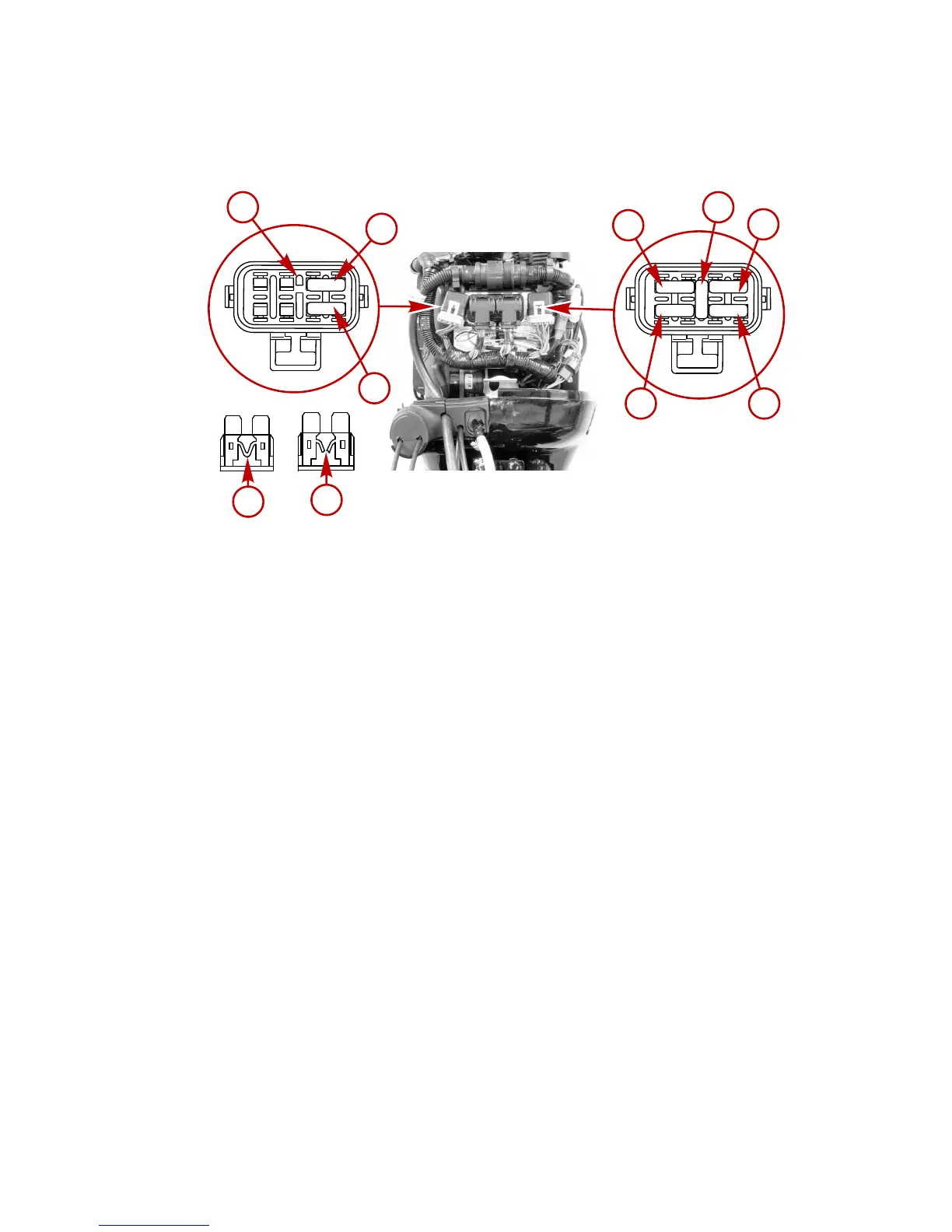

a - Spare fuse slot
b - Diagnostic circuit 4‑pin connector
c - SmartCraft data bus circuit ‑ 5 amp fuse
d - Main circuit ‑ 25 amp fuse
e - Spare 20 amp fuse
f - Main relay/accessories ‑ 15 amp fuse
g - Ignition coil circuit ‑ 25 amp fuse
h - Fuel pump/idle air control/fuel injector circuits ‑ SFE 20
amp fuse
i - Blown fuse
j - Good fuse
Timing Belt Inspection
1. Inspect the timing belt and have it replaced by an authorized
dealer if any of the following conditions are found.
a. Cracks in the back of the belt or in the base of the belt teeth.
b. Excessive wear at the roots of the cogs.
c. Rubber portion swollen by oil.
d. Belt surfaces roughened.

Mercury 60 4-Stroke Specifications

General

Engine Type	4-Stroke
Horsepower	60 hp
Displacement	995 cc
Fuel System	Electronic Fuel Injection (EFI)
Alternator Output	18 amp / 226 watt
Starting	Electric
Cylinders	4 (inline)
Shaft Length	20" or 25"
Full Throttle RPM Range	5000-6000
Warranty	3-Year Limited Warranty
