FEATURES & CONTROLS
47
1. Reduce engine speed below 2000 RPM.
2. Tilt outboard up, keeping the water intake holes submerged
at all times.
3. Operate the engine at slow speed only. If engine speed
exceeds 2000 RPM, the outboard will automatically return
down to the maximum trim range.
Throttle Grip Friction Adjustment ‑ Tiller Handle
Models

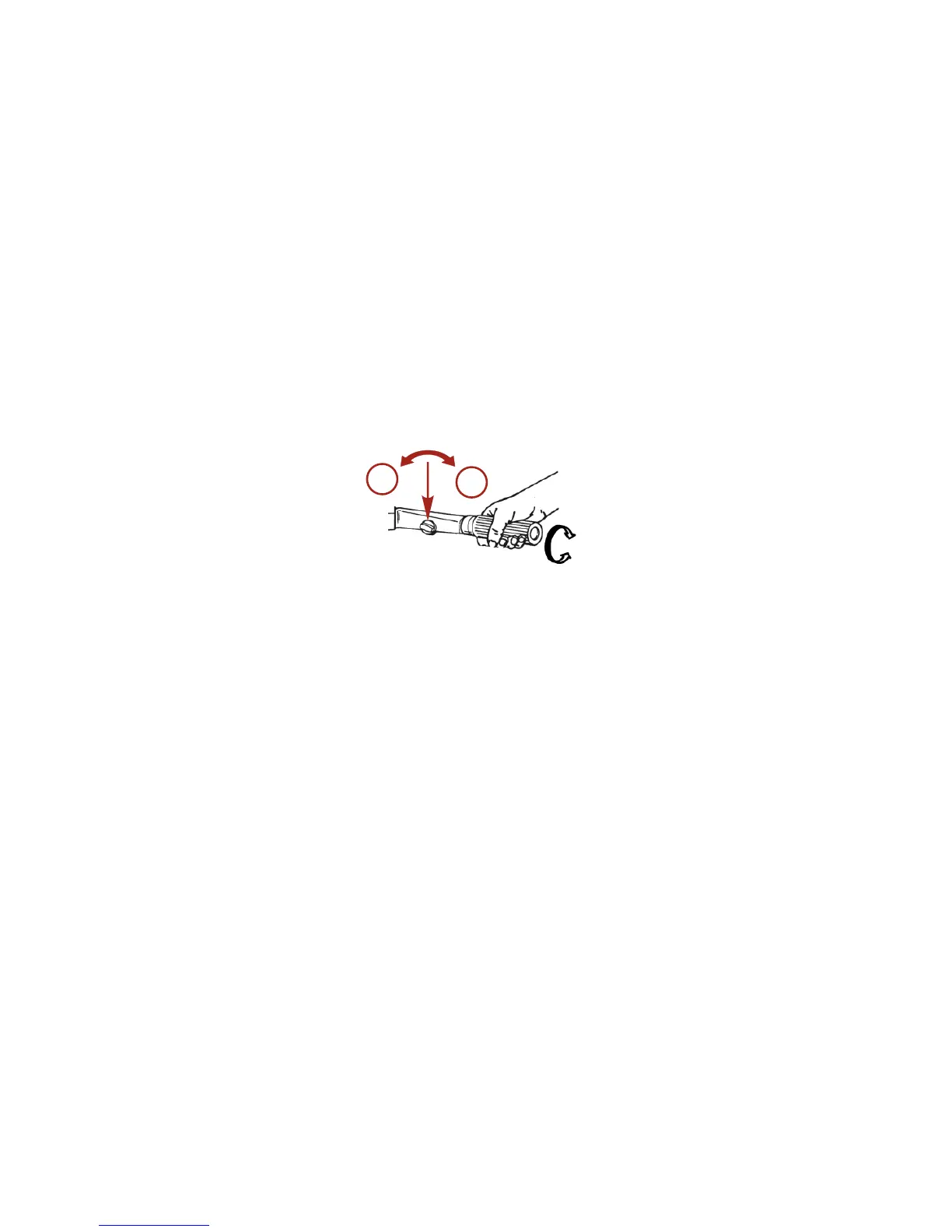

Throttle Grip Friction Knob Turn friction knob to set and maintain
the throttle at desired speed. Turn knob clockwise to tighten friction
and turn knob counterclockwise to loosen friction.
a
b
19807
a - Loosen friction b - Tighten friction
Steering Friction Adjustment
TILLER HANDLE MODELS
Steering Friction Adjustment Adjust this lever to achieve the
desired steering friction (drag) on the tiller handle. Move lever to
the left to tighten friction or move to the right to loosen friction.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 60 4-Stroke and is the answer not in the manual?

Mercury 60 4-Stroke Specifications

General IconGeneral
Engine Type4-Stroke
Horsepower60 hp
Displacement995 cc
Fuel SystemElectronic Fuel Injection (EFI)
Alternator Output18 amp / 226 watt
StartingElectric
Cylinders4 (inline)
Shaft Length20" or 25"
Full Throttle RPM Range5000-6000
Warranty3-Year Limited Warranty
