GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 13 of 137

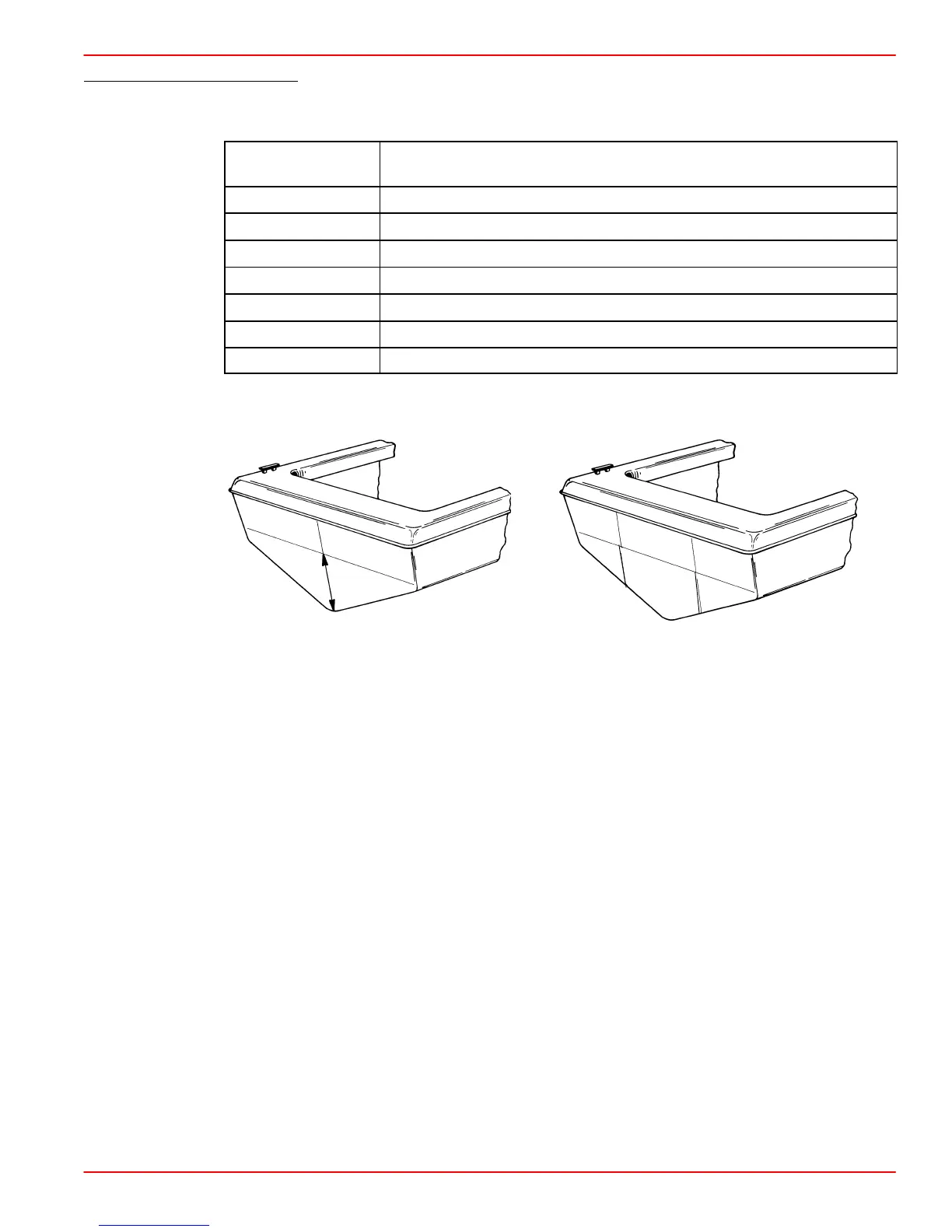

TAPE MEASURE METHOD
1. Determine X-Dimension from the following chart.
Transom Angle
(degrees)
This dimension should only be raised or lowered after proper
testing.
16 14-5/16 in. (364 mm)
15 14-1/4 in. (362 mm)
14 14-3/16 in. (360 mm)
13 14-1/8 in. (359 mm)
12 14-1/16 in. (357 mm)
11 14 in. (356 mm)
10 13-15/16 in. (354 mm)
2. Measure up from the boat bottom the amount shown on the chart for the appropriate
transom angle.
71622
71623
Single Engine Dual Engine
3. Draw a line perpendicular to vertical centerline at crankshaft horizontal centerline.
To Next Page
