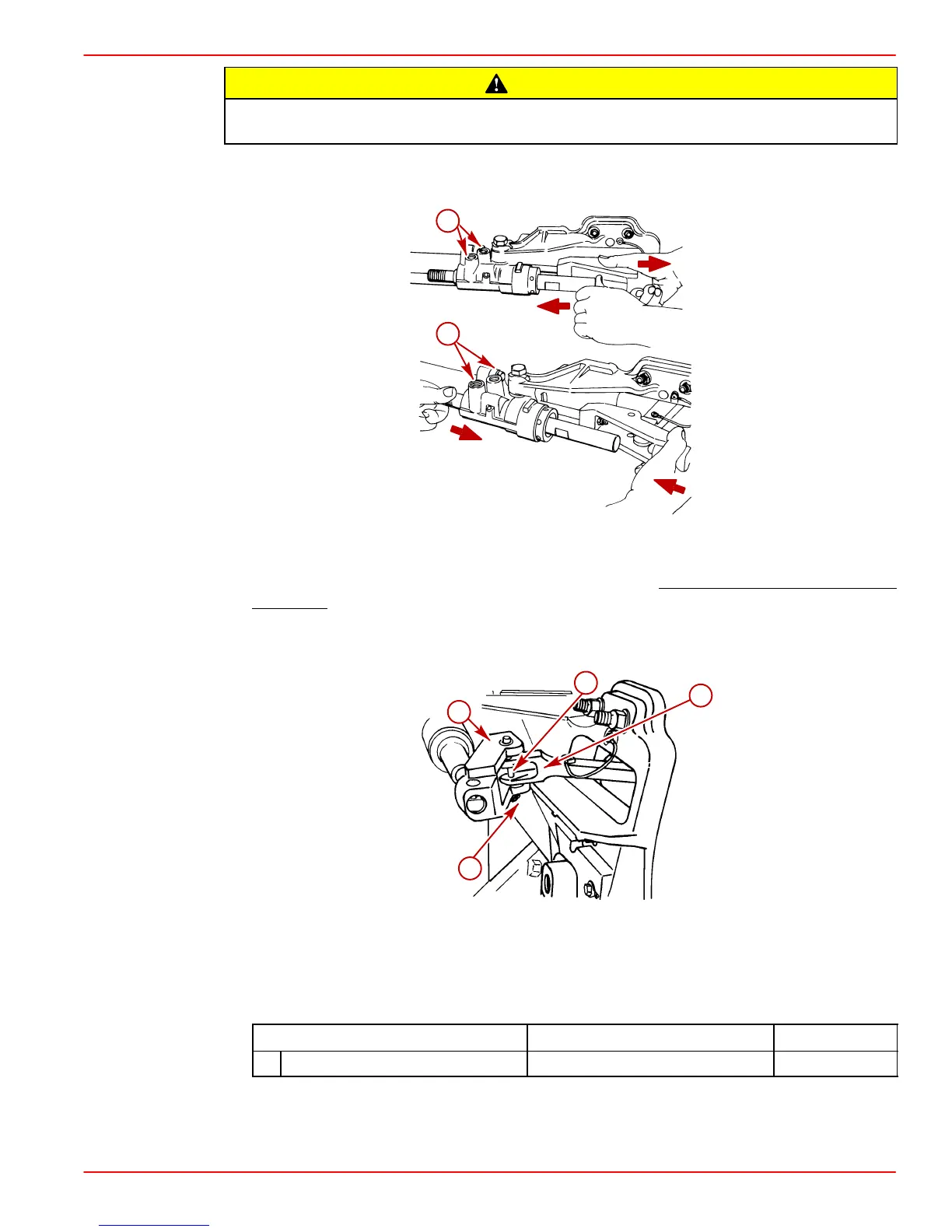

GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 27 of 137
CAUTION
MOVING THE CONTROL VALVE RAM with the hoses disconnected will expel fluid
from the control valve ports. Wear eye protection.
7. The control valve ram may be stiff and difficult to move when you attempt to pull it out
or push it in for installation. Move the assembly in the directions shown below.
74145
74144
a
a
a-Control Valve Ports
8. Connect clevis to steering lever. Lubricate clevis pin. Be sure to spread both ends of
cotter pin.
NOTE: Make sure to insert clevis pin from the top to ensure that cotter pin hole is as shown
in the diagram.
71904
a
b
c
d
a-Clevis
b-Steering Lever
c-Clevis Pin
d-Cotter Pin
Description
Where Used Part Number
A Special Lubricant 101 Clevis Pin 92-13872A1
