GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 31 of 137
CAUTION
MOVING THE CONTROL VALVE RAM with the hoses disconnected will expel fluid
from the ports. Wear eye protection.

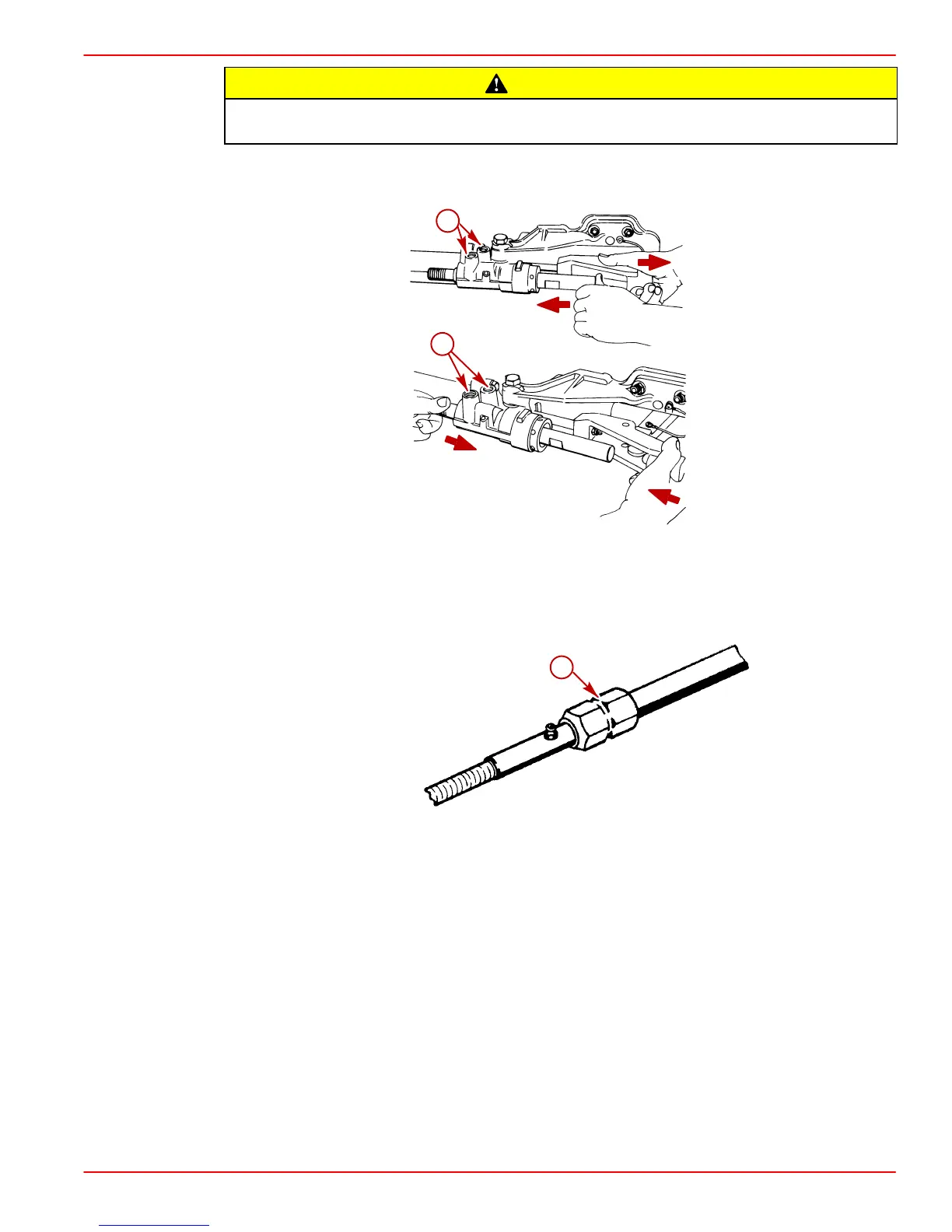

6. The cylinder ram may be stiff and difficult to move when you attempt to pull it out or push
it in for installation. First move the spool assembly in the direction(s) shown below.
74145
74144
a
a
a-Control Valve Ports
IMPORTANT: Newer style Quicksilver Ride Guide steering cable has a self-locking
coupler nut and does not require an external locking sleeve or locking plate.
22060
a
a-Self-Locking Coupler Nut
