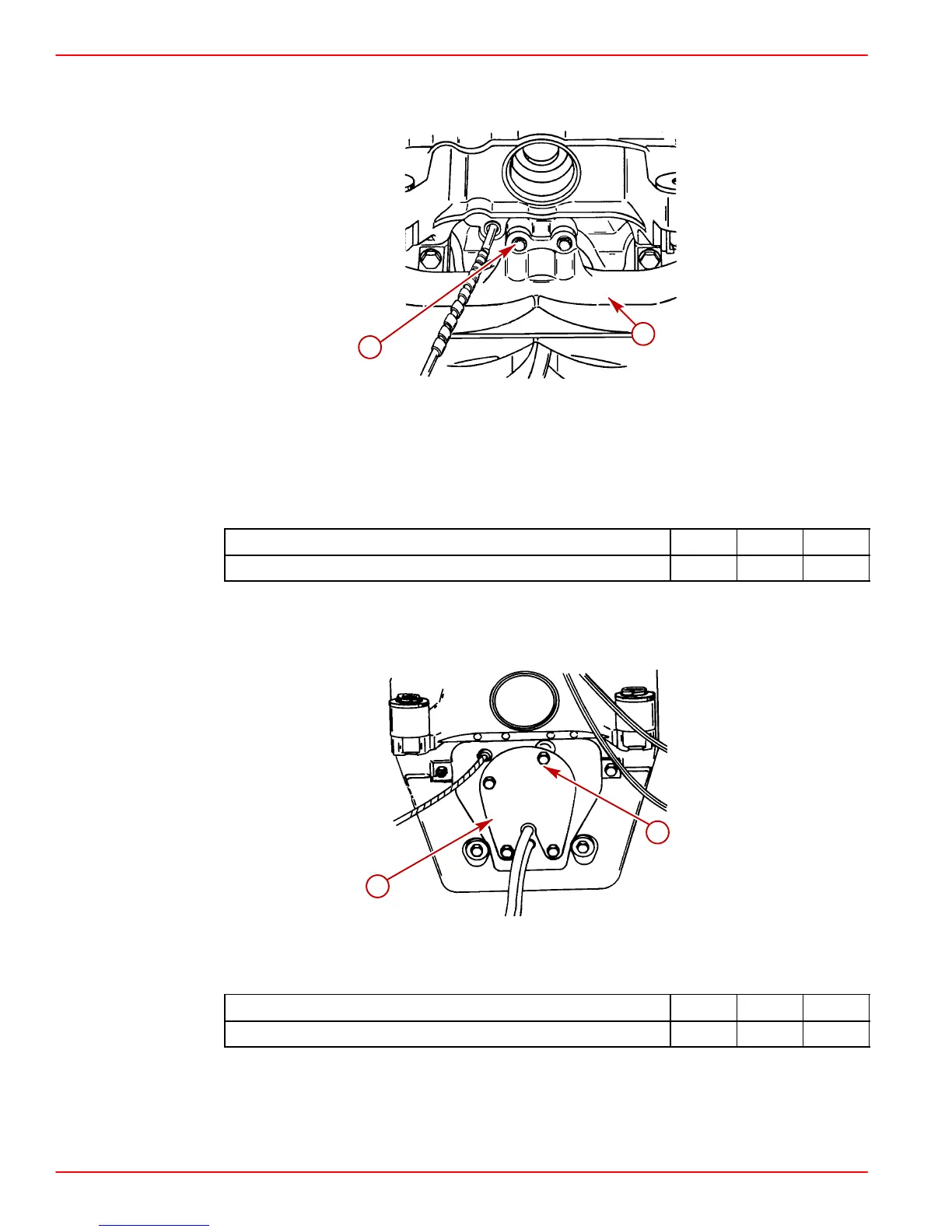

3. Through the Prop Exhaust Models: Install exhaust pipe assembly as shown, using
four bolts and lockwashers. Torque bolts.
50684
b
a
a-Exhaust Pipe
b-Bolts And Lockwashers (4)
Description
Nm lb-in. lb-ft
Bolts 31 23
4. Through the Transom Exhaust Models: Install block-off plate as shown, using four
bolts and lockwashers. Torque bolts.
22057
b
a
a-Bolts And Lockwashers (4)
b-Block-Off Plate
Description
Nm lb-in. lb-ft
Bolts 31 23
NOTE: Through the Transom exhaust fittings can be installed at this time.
