GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 41 of 137

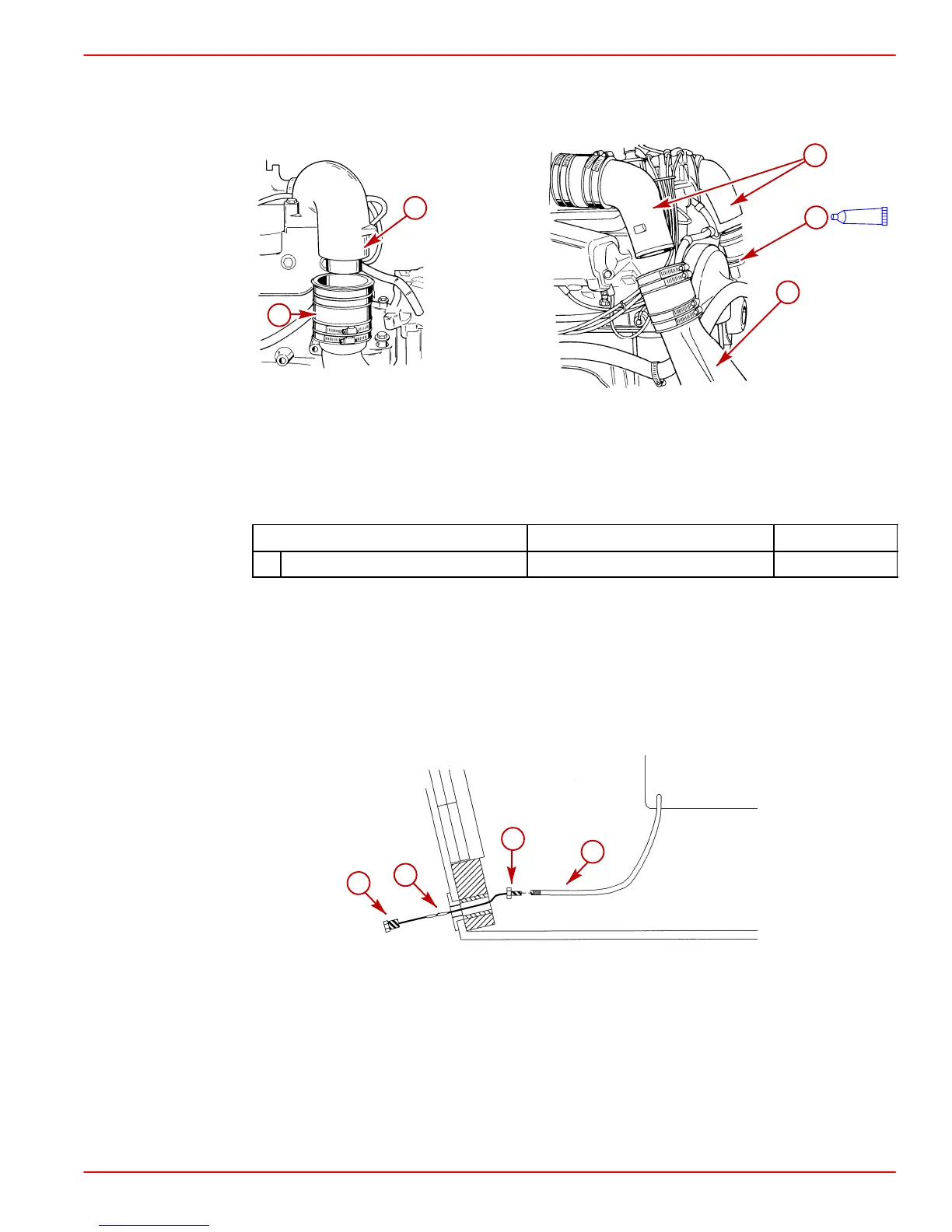

5. Line up the intermediate elbows with the exhaust tubes.
6. Spray lubricant into the exhaust tubes to assist with intermediate elbow installation into
exhaust tubes.
50682
c
a
b
A
50635
b
c
3.0L Models Typical V6 And V8 Models
a-Bullhorn
b-Intermediate Elbow
c-Exhaust Tube
Description
Where Used Part Number
A Power Tune Exhaust Tubes 92-802878-57
7. If equipped with quick drain oil:
a. Push end of oil drain hose out of boat hull through flange.
b. Pull oil drain hose out until it is 6 in. (152 mm) from the propeller.
c. Move alignment clip on the oil drain hose and squeeze to position it on the hose just
inside of the boat hull against the flange.
d. Connect bilge drain plug to oil drain hose plug using clip.
78002
a
b
d
c
a-Oil Drain Hose
b-Alignment Clip
c-Clip
d-Bilge Drain Plug
