GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 42 of 137 90-860172011
e. Push oil drain hose through flange into boat hull.
f. Install bilge drain plug in hull.
8. Align rear engine mounts with inner transom plate mounts while simultaneously aligning
exhaust tube with intermediate elbows.
9. Install both rear engine mounting bolts and hardware and torque. Do not relieve hoist
tension.

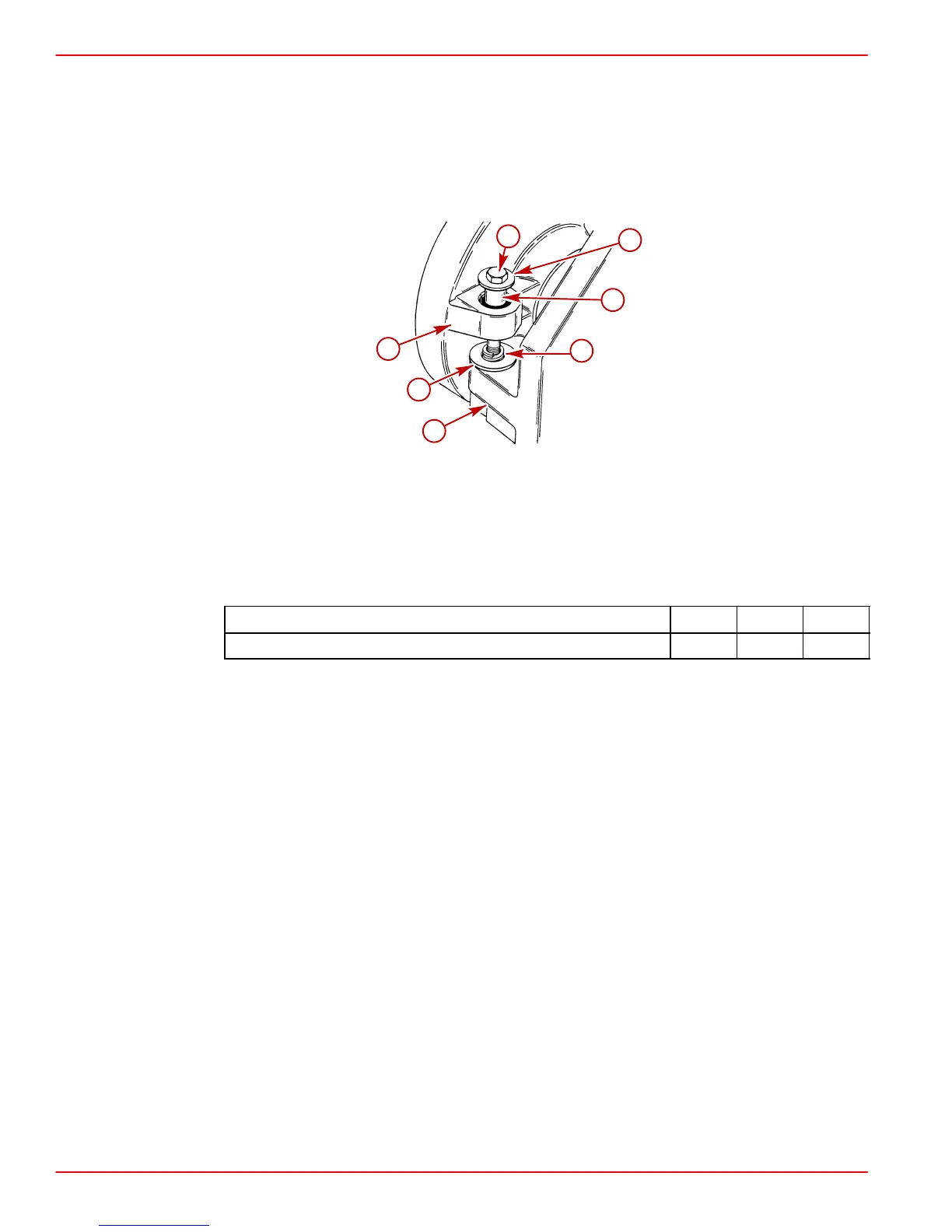

72535
a
f
b
g
e
d
c
a-Rear Engine Mount
b-Inner Transom Plate Mount
c-Bolt
d-Washer
e-Spacer
f-Fiber Washer
g-Double-Wound Lockwasher
Description Nm lb-in. lb-ft
Rear Engine Mounting Bolts 51 38
IMPORTANT: If quick drain oil fitting is within 1/2 in. (6 mm) of boat bottom, remove
fitting and install drain plug from parts bag directly into oil pan.
10. Ensure quick drain oil fitting is more than 1/2 in. (6 mm) above the boat bottom.
