6. Install remote control shift cable (with or without shift assist assembly as applicable) and
secure with hardware as shown. Tighten locknut finger tight only and do not spread
cotter pin completely. (Remote control shift cable fasteners will have to be removed
again to properly adjust shift cables under Shift Cable Installation section of this
manual.)
50308
e
b
a
d
c

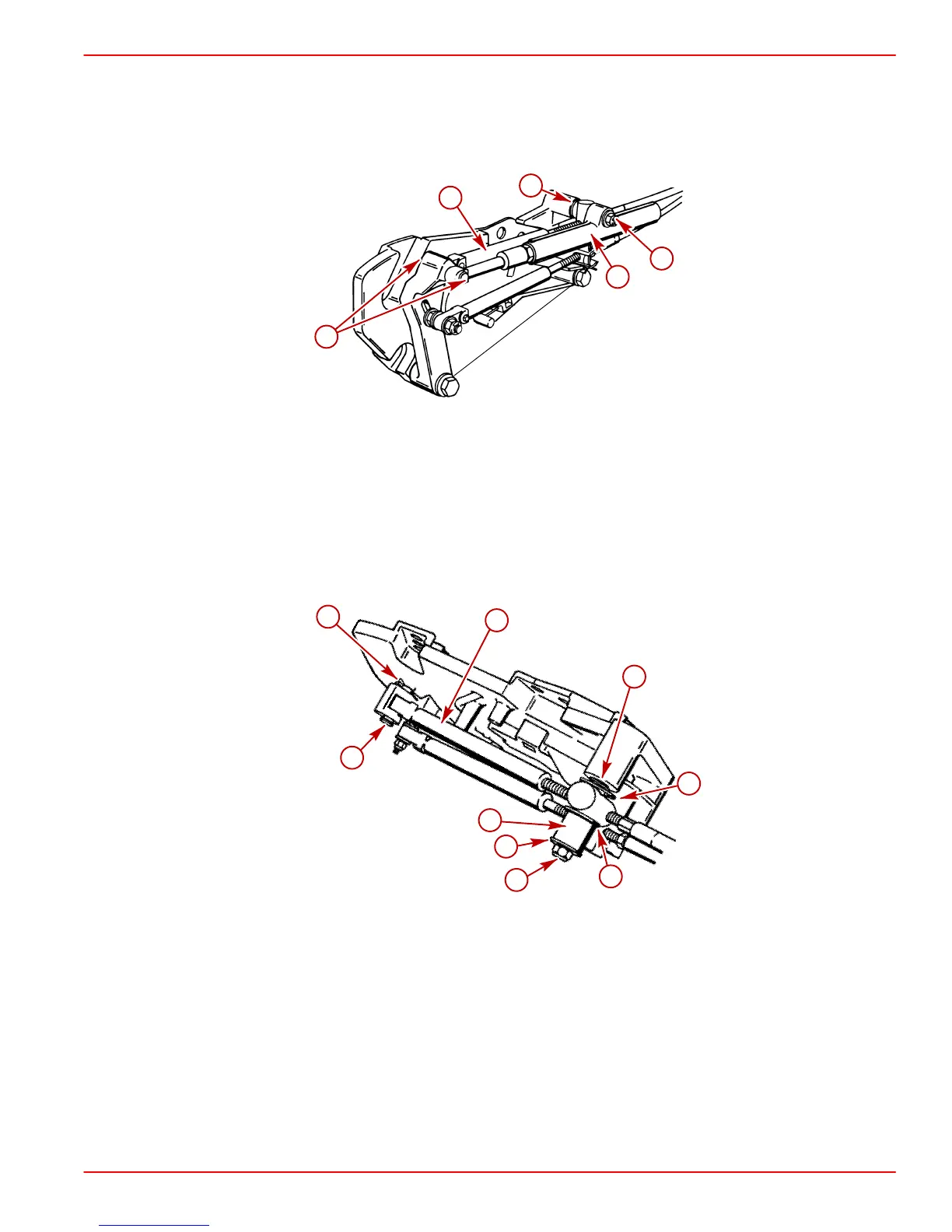

With Shift Assist Assembly
a-Remote Control Shift Cable
b-Shift Assist Assembly
c-Clevis Pin And Cotter Pin
d-Large I.D. Washer
e-Small I.D. Washer And Locknut
50310
e
d
f
i
h
g
b
c
a
Without Shift Assist Assembly
a-Remote Control Shift Cable
b-Pin
c-Cotter Pin (Existing)
d-Spring (Existing)
e-Washer (Existing)
f-Washer
g-Spacer
h-Washer (Existing)
i-Locknut (Existing)
