GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 70 of 137 90-860172011
4. Remove remote control shift cable and shift assist assembly.
IMPORTANT: Install the cotter pin through the top of the barrel retainer.
5. Install drive unit shift cable as shown. Secure brass barrel in barrel retainer with cotter
pin and spread both prongs.
Secure cable end guide with washers (one on each side
of end guide) and locknut. Tighten locknut until it contacts, then loosen 1/2 turn
.
75415
b
a

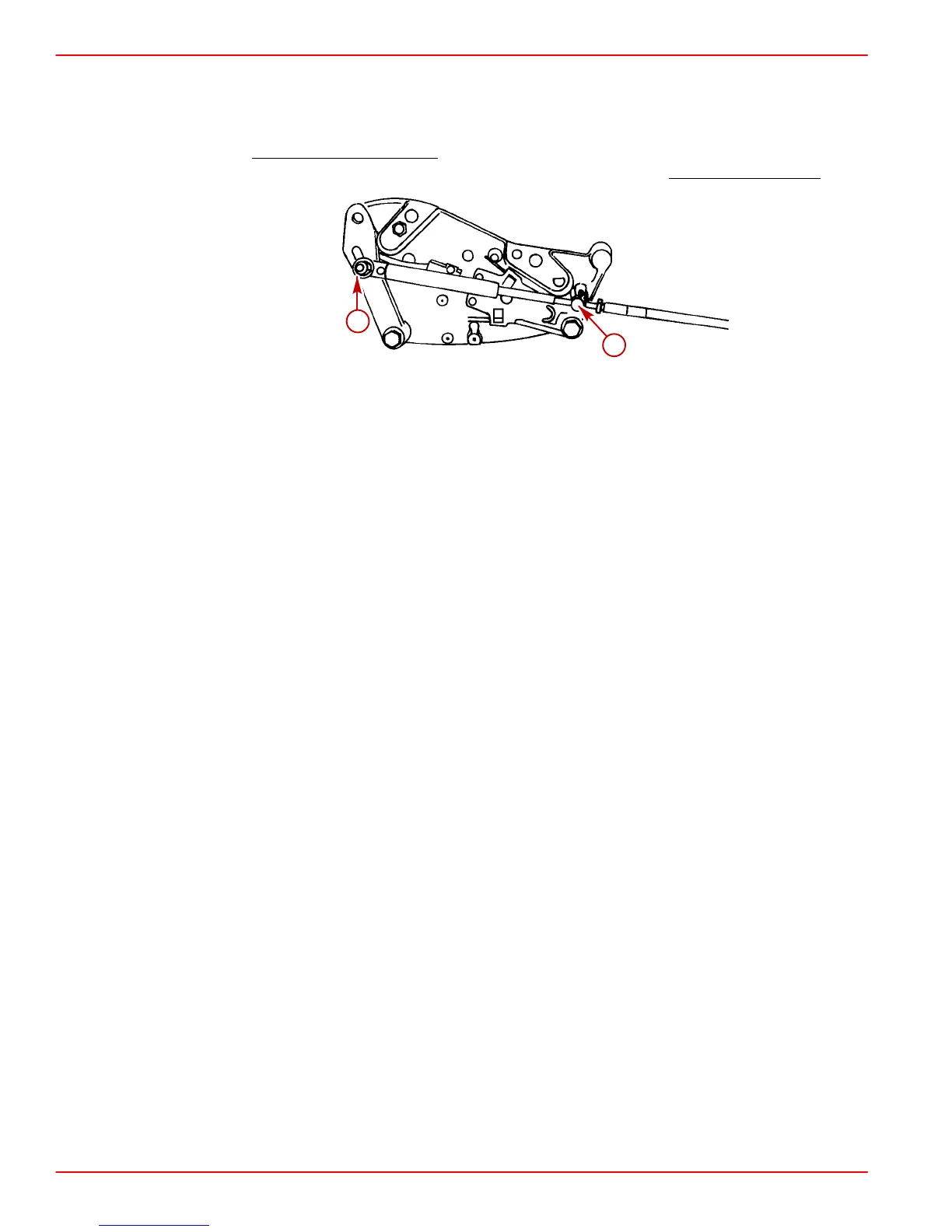

Without Shift Assist Assembly
a-Cotter Pin
b-Locknut And Washers
