16. Remove adjustment tool.
17. Shift remote control lever into full FORWARD position. Place end of adjustment tool in
barrel retainer.
RH rotation Bravo One, Two and Three Models: Rear slot in tool should fit over shift lever
stud.
LH rotation Bravo One And Two: Forward slot in tool should fit over shift lever stud.
If slot does not fit over stud, loosen shift lever stud and slide stud up or down until slot in tool
fits over stud. When adjustment is correct, retighten stud.

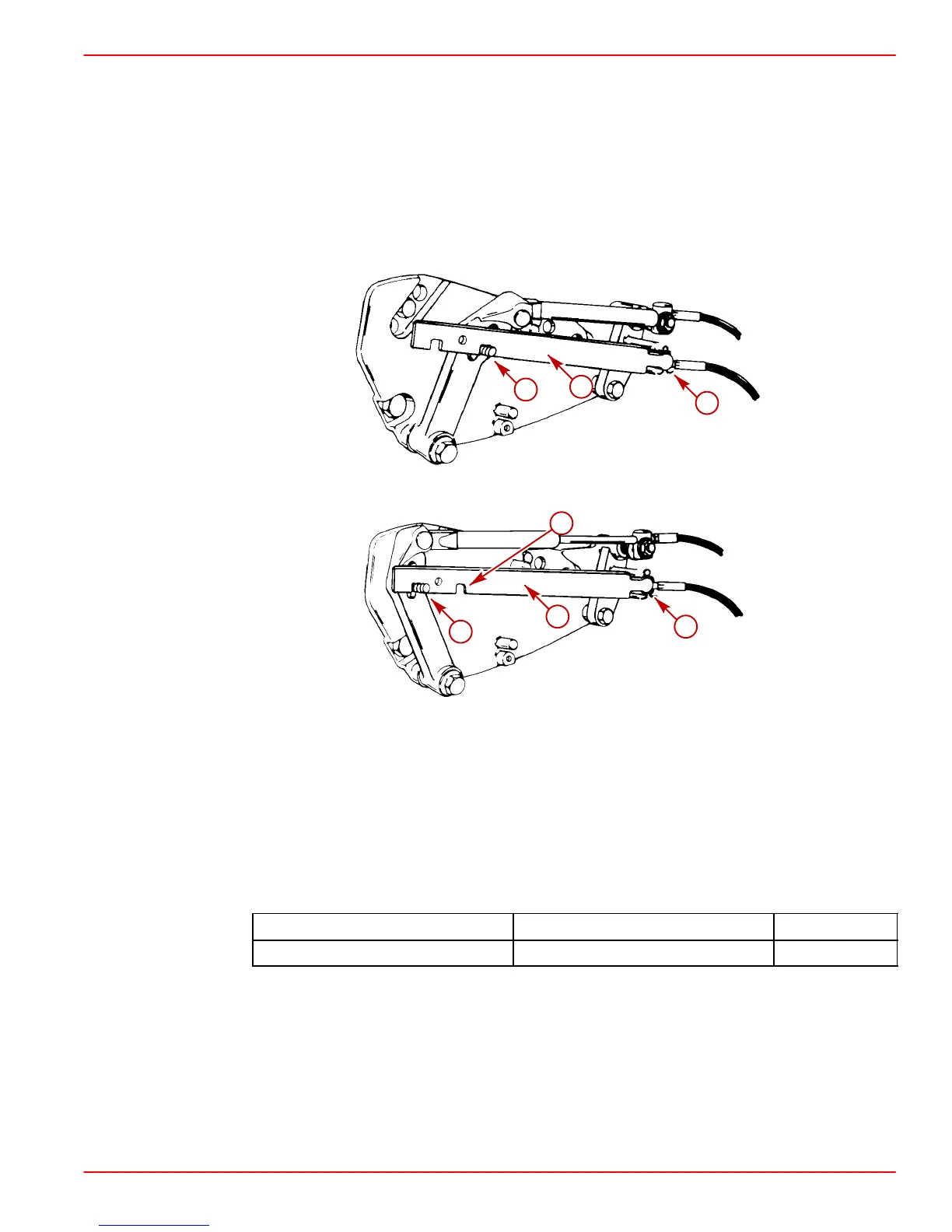

71662
a
b
c
RH Rotation Bravo One, Two, Three
71663
a
b
c
d
LH Rotation Bravo One And Two
a-Adjustment Tool
b-Barrel Retainer
c-Shift Lever Stud
d-Shift Lever Adjustment Slot
18. Remove adjustment tool.
19. Lubricate shift cable pivot points.
Description
Where Used Part Number
SAE 30W Engine Oil Shift Cable Pivot Points Obtain Locally
