11. After remote control shift cable has been properly adjusted, reinstall cable and shift
assist assembly (if applicable) and secure with hardware as shown. If shift assist
assembly attaching points will not align, push in or pull out on end of shift assist
assembly to install. Do not attempt to readjust shift cable.
50308 50310
c
b
d
a
f
g
e
c
d
a
h
i
j
i
g
i

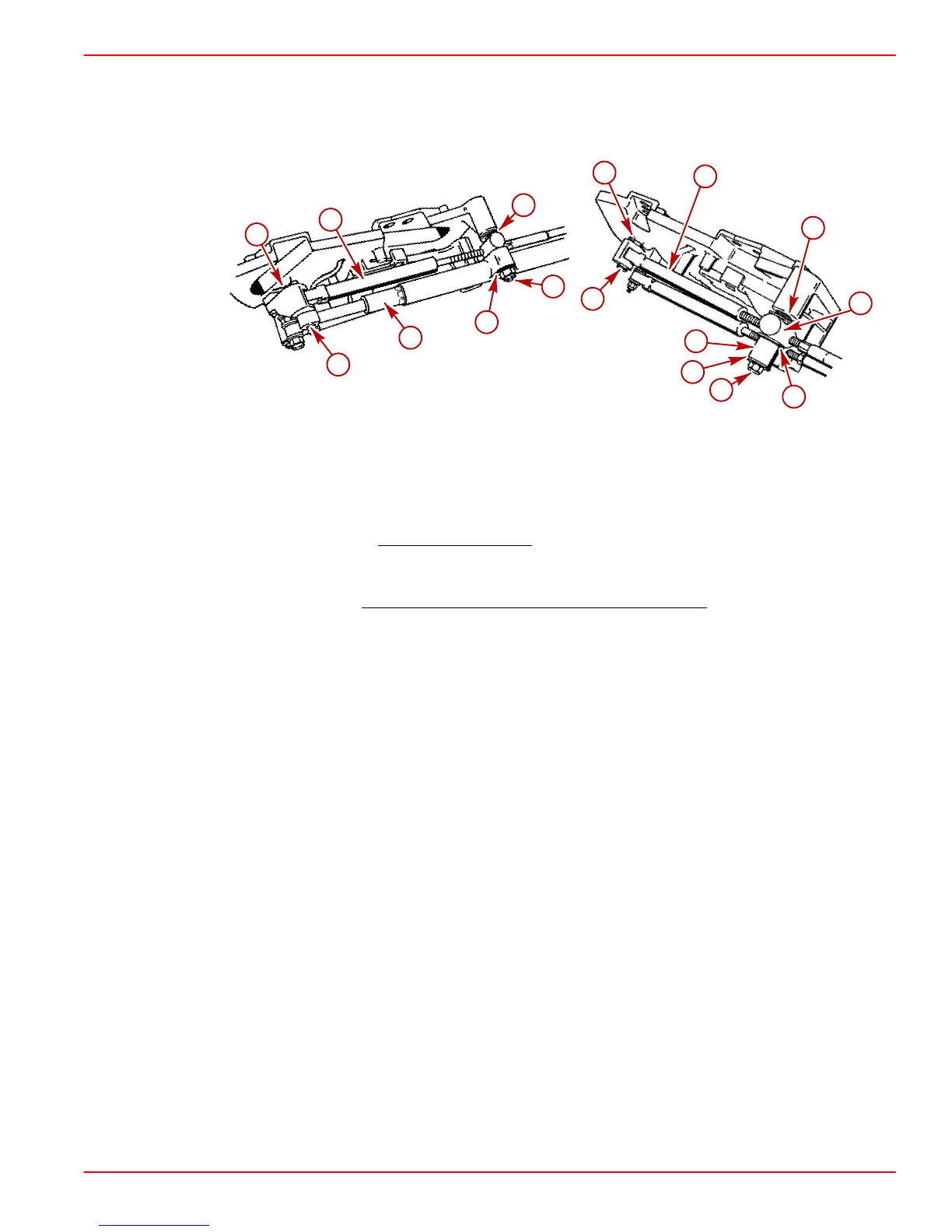

With Shift Assist Assembly Without Shift Assist Assembly
a-Remote Control Shift Cable
b-Shift Assist Assembly
c-Clevis Pin
d-Cotter Pin (Spread Both Prongs
)
e-Large I.D. Washer
f-Small I.D. Washer
g-Locknut (Tighten Until Contacts, Then Loosen 1/2 Turn
)
h-Spring (Existing)
i-Washer (Existing)
j-Spacer
