Mercury HP700 SCi - Serpentine and Supercharger Drive Belts

MAINTENANCE
98
5. Install the hoses and clamps. Tighten the screws securely.
Serpentine and Supercharger Drive Belts
SERPENTINE DRIVE BELT ROUTING AND TENSION
!
WARNING
Inspecting the belts with the engine running may cause serious
injury or death. Turn off the engine and remove the ignition key
before adjusting tension or inspecting belts.
IMPORTANT: The drive belt must be routed as shown or damage
may result.

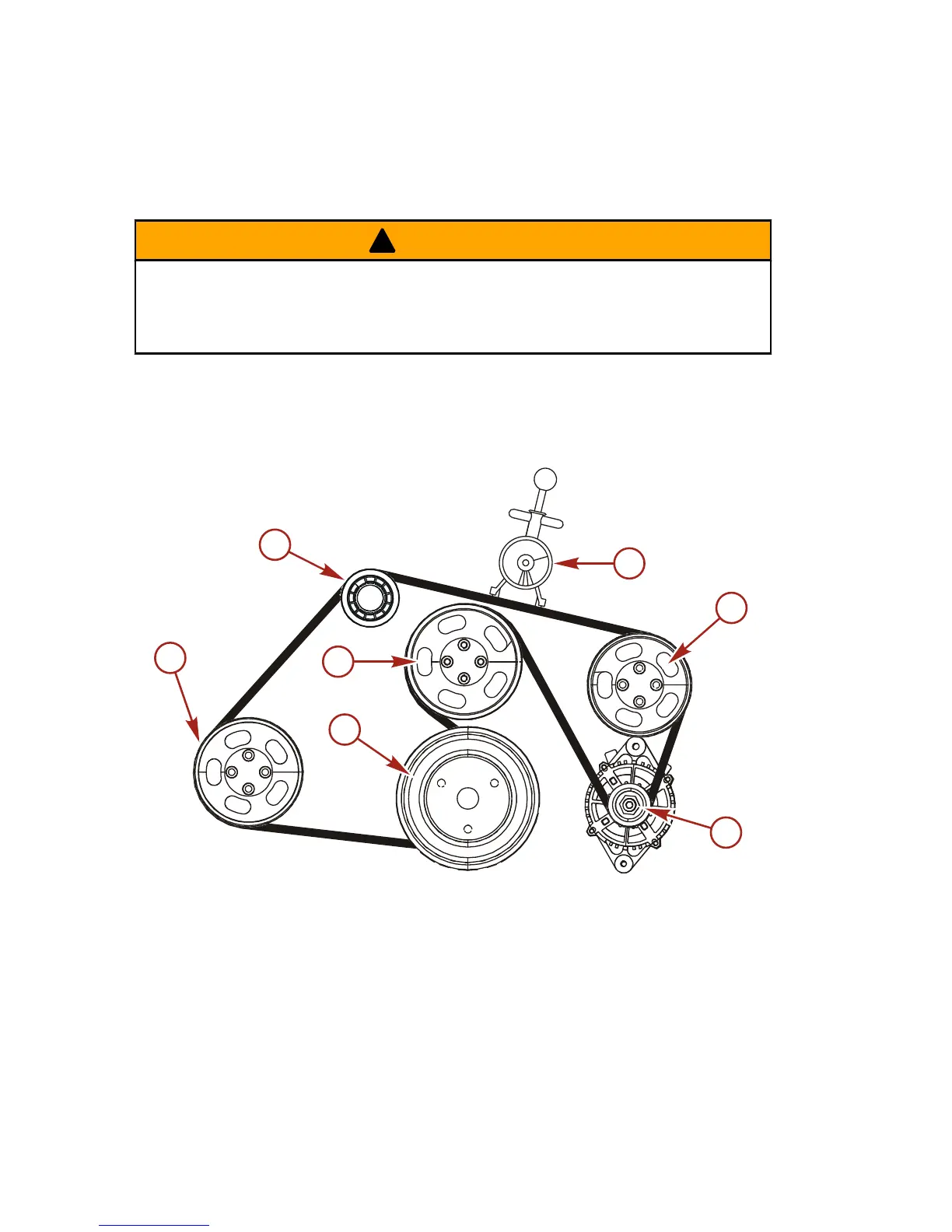

1. Install the belt tension gauge onto the belt.
a
b
c
d
f
g
B
E
L
T
T
E
N
S
I
O
N
G
A
U
G
E
e
10286
a - Seawater pump pulley
b - Belt adjustment pulley
c - Re‑circulating pump
pulley
d - Crankshaft pulley
e - Belt tension gauge
f - Power steering pulley
(non‑power steering
models have an idler
pulley)
g - Alternator pulley
