3. Reset the breaker by pushing the yellow lever back into the housing.

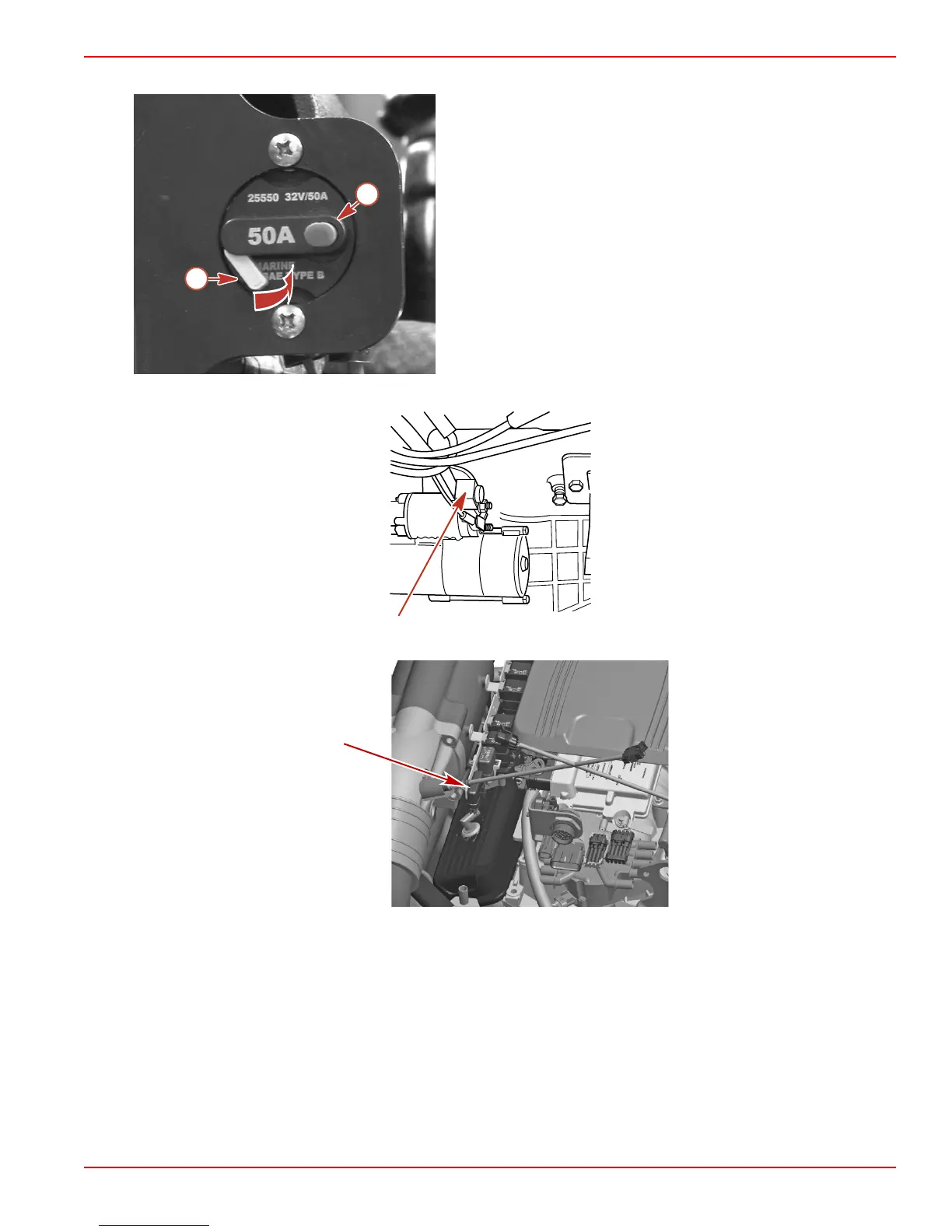

Yellow lever style circuit breaker
a - Yellow lever
b - Red test button
A 90 amp fuse, located on the large post of the starter solenoid, protects the engine wiring harness if an electrical overload occurs.
mc74907-1
Four fuses, located on the port side of the engine, protect various electronic fuel injection (EFI) circuits.
Engine fuses
22529
