Section 5 - Maintenance
Page 82 90-864197076 NOVEMBER 2008
IMPORTANT: If reusing tab washer, carefully inspect tabs for cracks or other damage. Replace tab washer if condition is
questionable.

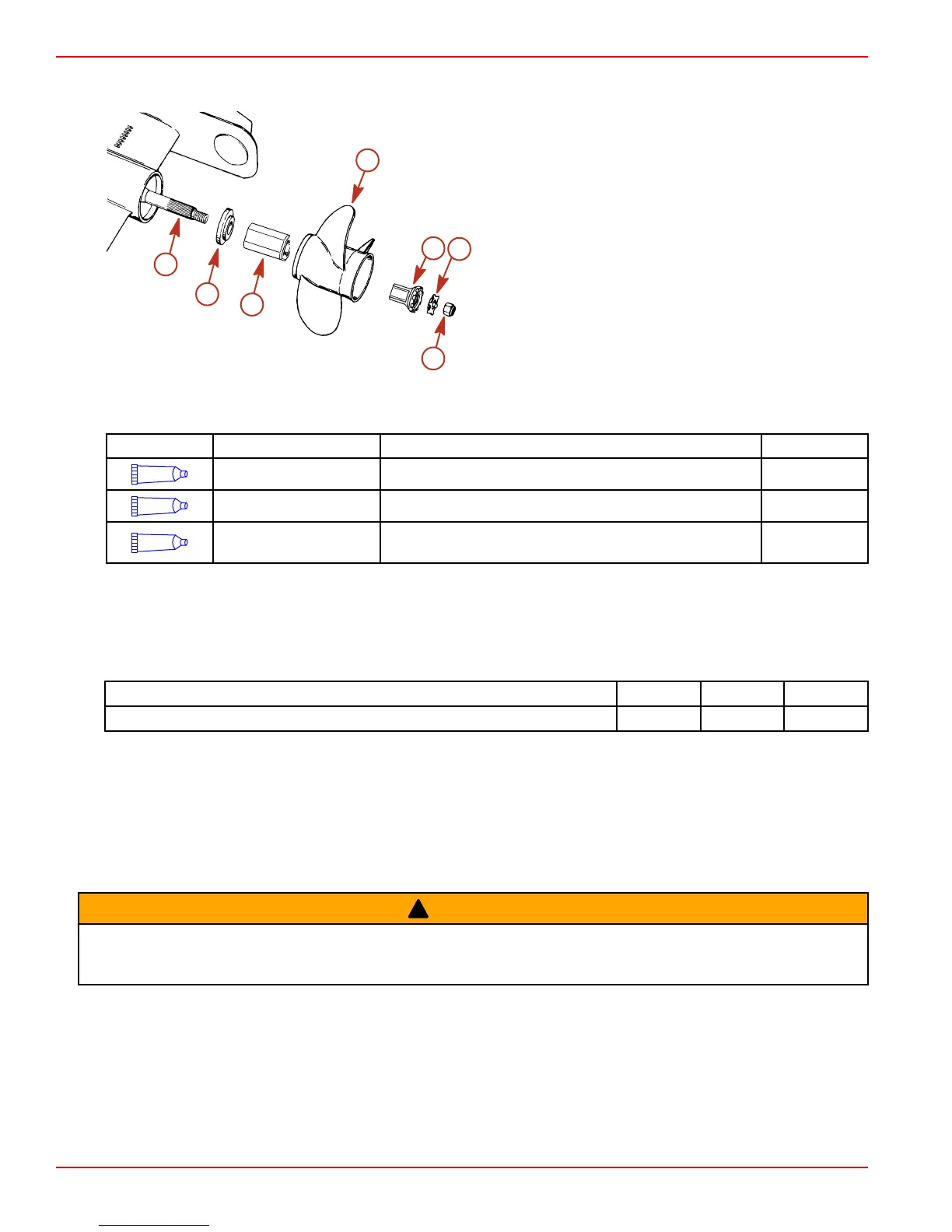

a - Propeller shaft
b - Thrust hub
c - Flo‑Torq II drive hub
d - Propeller
e - Drive sleeve
f - Locking tab washer
g - Propeller nut
1. Slide thrust hub onto propeller shaft, with stepped side toward propeller hub.
2. Apply a liberal coat of one of the following lubricants to the propeller shaft.
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft 92-802865Q02
94
Anti-Corrosion Grease Propeller shaft 92-802867Q 1
95
2-4-C Marine Lubricant
with Teflon
Propeller shaft 92-802859A 1
3. Install Flo‑Torq II Drive Hub into propeller.
NOTE: The drive sleeve is tapered and will slide fully into the propeller as the nut is tightened and properly torqued.
4. Align splines and place propeller on propeller shaft.
5. Install drive sleeve and locking tab washer.
6. Install and torque the propeller nut.
Description Nm lb‑in. lb‑ft
Propeller nut (minimum) 75 – 55
IMPORTANT: The propeller torque stated is a minimum torque value. Some special use propellers may have a different
torque value. Use the installation information provided with the propeller to determine if another torque value is appropriate
to your propeller.
7. Bend three tabs on the tab washer down into the grooves in spline washer. After the first use, bend the three tabs straight
and retorque the propeller nut. Bend tabs back down into spline washer. Check propeller at least after 20 hours of operation.
Do not operate with loose propeller.
Bravo Two Propeller Removal
!
WARNING
Rotating propellers can cause serious injury or death. Never operate the boat out of the water with a propeller installed. Before
installing or removing a propeller, place the drive unit in neutral and engage the lanyard stop switch to prevent the engine from
starting. Place a block of wood between the propeller blade and the anti‑ventilation plate.
1. Place wood block between propeller blade and anti‑ventilation plate to prevent rotation. Straighten bent tabs on tab washer.
2. Turn propeller shaft nut counterclockwise to remove nut.
3. Slide tab washer, spline washer, propeller and thrust hub off propeller shaft.
a
b
c
d
e
g
6215
f
