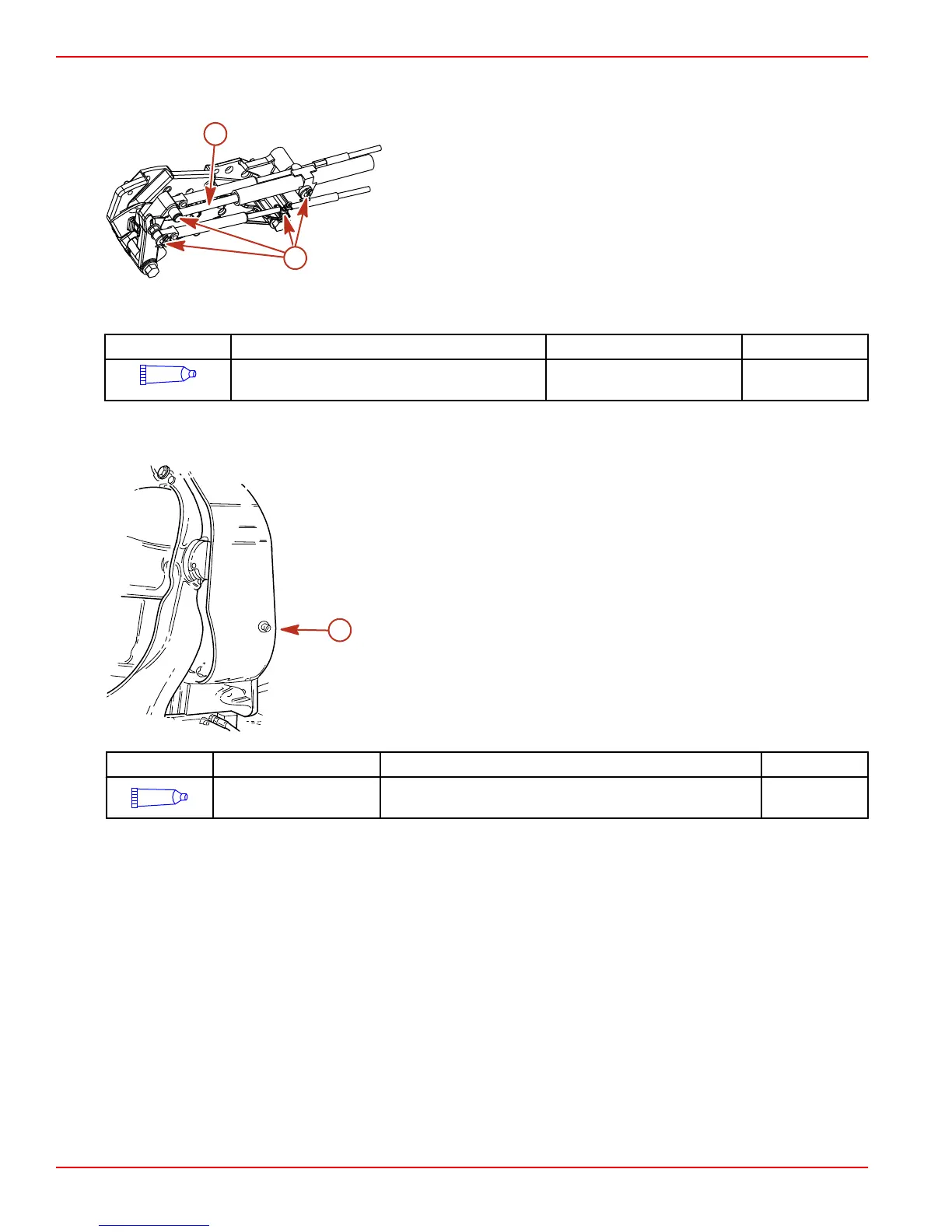

Shift Cable ‑ Typical
1. Lubricate the pivot points and the guide contact surfaces.
a - Pivot points
b - Guide contact surfaces
Tube Ref. No. Description Where Used Part No.
Synthetic Blend MerCruiser Engine Oil
SAE25W‑40
Shift cable pivot points &
guide contact surfaces
92‑883725K01
Sterndrive Unit and Transom Assembly
1. Lubricate gimbal bearing by applying approximately 8‑10 pumps of grease from a typical hand‑operated grease gun.
a - Gimbal bearing grease fitting
Tube Ref No. Description Where Used Part No.
42
U-joint and Gimbal
Bearing Grease
Gimbal bearing 92-802870A1
2. For propeller shaft lubrication, refer to Propellers.
