Section 5 - Maintenance
Page 70 90-864197076 NOVEMBER 2008
10. Fill the monitor so that the oil level is in the operating range. Do not overfill. Ensure that the rubber gasket is inside the cap
and install. Do not overtighten.
NOTE: Oil capacity includes gear lube monitor.
Model Capacity Fluid Type
Alpha One 1892 mL (64 oz)
High Performance Gear Lubricant
Bravo One 2736 mL (92‑1/2 oz)
Bravo Two 3209 mL (108‑1/2 oz)
Bravo Three (single seawater pickup) 2972 mL (100‑1/2 oz)
Bravo Three (dual seawater pickup) 2736 ml (92‑1/2 oz.)
11. Remove the pump from the oil fill/drain hole. Quickly install the sealing washer and oil fill/drain screw. Tighten securely.
12. Reinstall the propeller. Refer to Propellers.
13. Recheck the oil level after the first use.
IMPORTANT: Oil level in the gear lube monitor will rise and fall during sterndrive operation. Check the oil level only when the
sterndrive is cool and the engine is shut down.
Power Trim Fluid
Checking
IMPORTANT: Check the oil level with the sterndrive unit in the full down/in position only.
1. Place the sterndrive unit in full down/in position.
2. Observe the oil level. Level must be between the "MIN" and "MAX" lines on the reservoir.

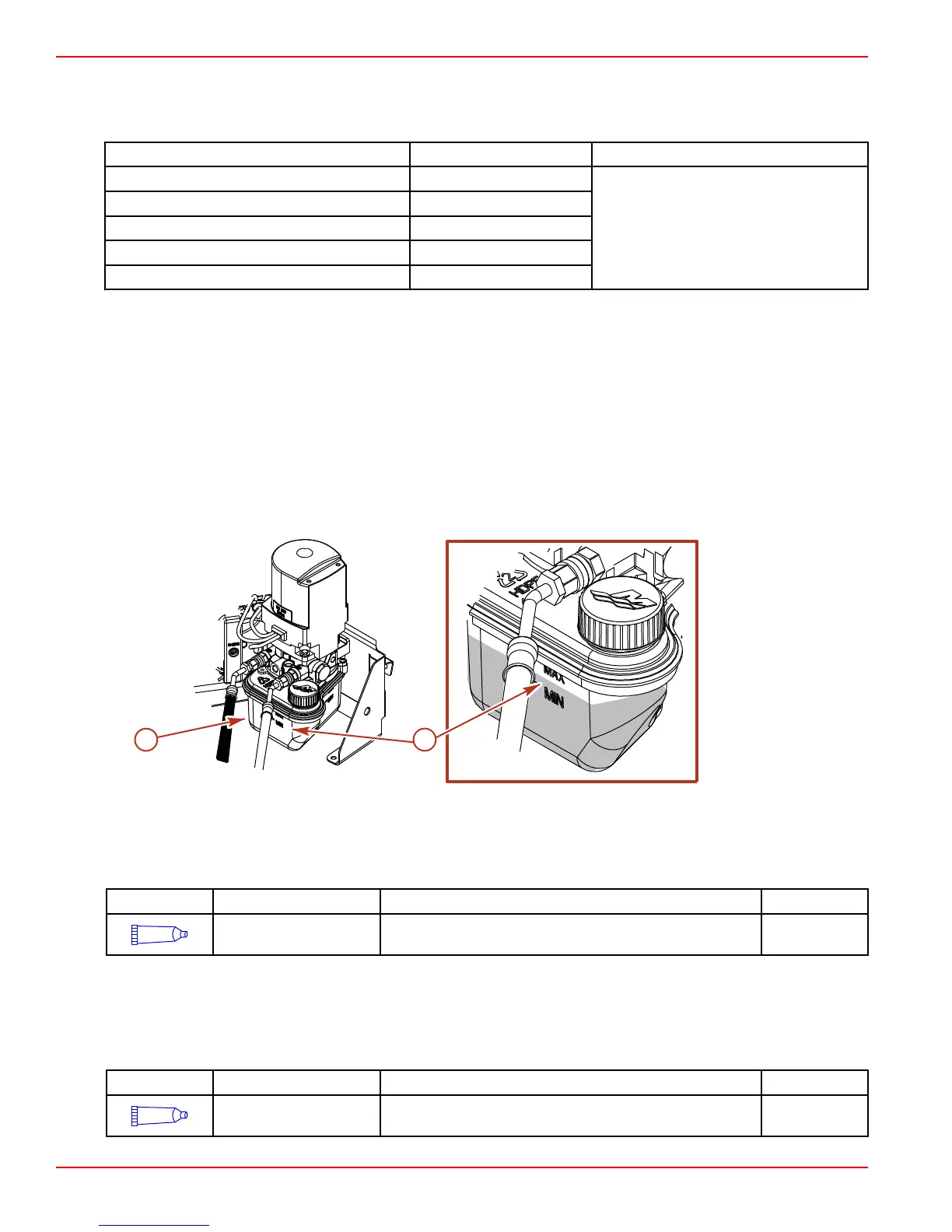

a - Reservoir
b - "MIN" and "MAX" lines
3. Fill as necessary with the specified fluid.
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power trim pump 92-858074K01
Filling
1. Remove the fill cap from the reservoir.
NOTE: Fill cap is vented.
2. Add lubricant to bring level to the within the "MIN" and "MAX" lines on the reservoir.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power trim pump 92-858074K01
a
b
7876
