Section 2 - Getting to Know Your Power Package
Page 34 90-864197076 NOVEMBER 2008

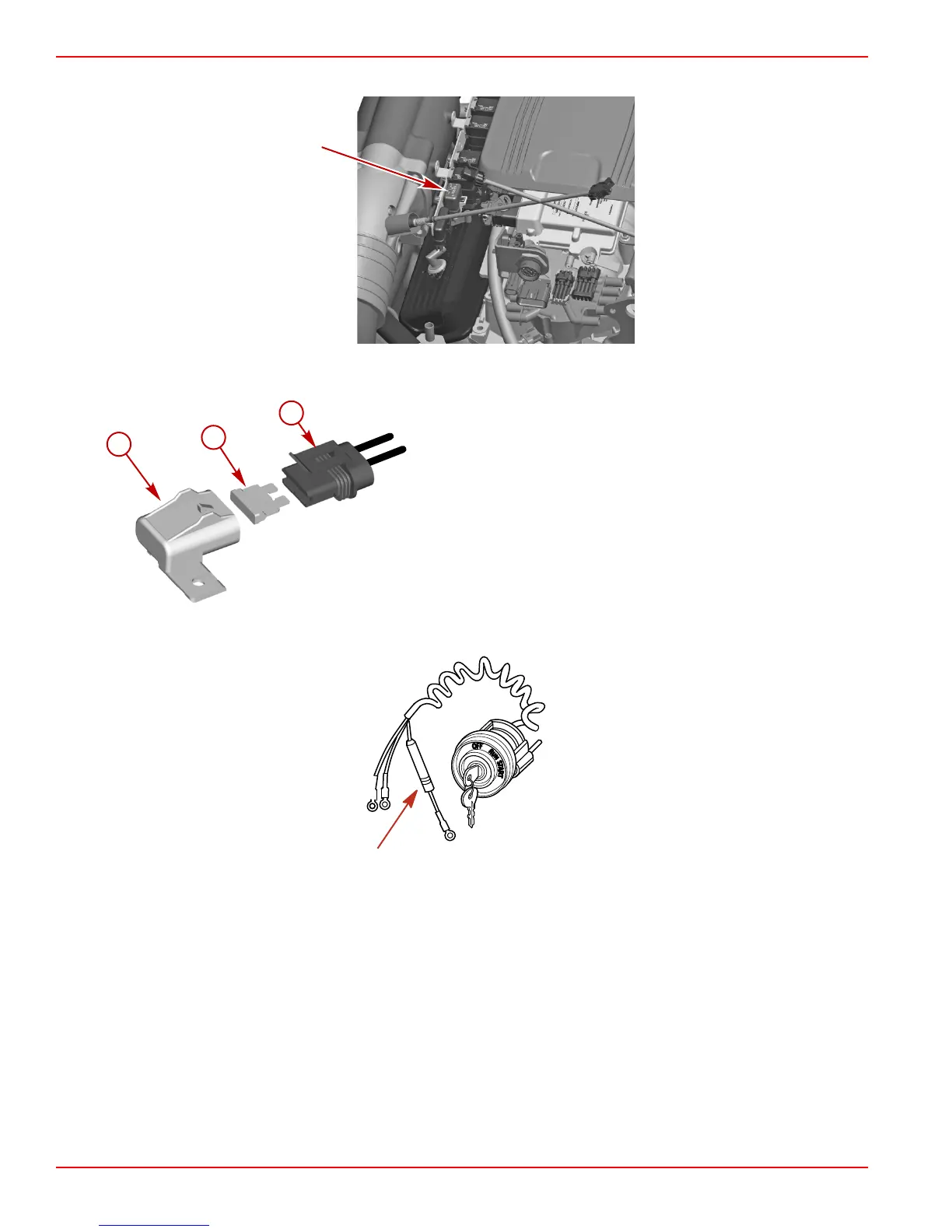

Two 10 amp fuses protect the O
2
(oxygen) sensors. These are located at the rear of the engine, near the 14‑pin connector.
A 15 amp accessory fuse protects the accessory circuits. This fuse is located on the rear of the engine.
a - Cover
b - 15 amp fuse
c - Accessory harness
A 20 amp fuse may be located in the ignition switch "I" terminal lead to protect the electrical system. Check for an open fuse if the
engine does not start, and the circuit breaker is not tripped.
